USB 4 Axis CNC 6090 Router Kit MACH Control+2.2KW VFD Water-Cooling Spindle Motor Plastic Acrylic PCB PVC Wood Carving Drilling 3D Milling Engraving Machine with Controller,Handwheel

---

About this item

• 🛠️【High performance】2200W high-speed variable frequency spindle motor, ER11 chuck,with 6mm collet. two-phase 3A (with handwheels) stepping motor, water-cooled VFD can run for a long time, enhancing the processing capacity of the machine. Maximum idle speed: 1500mm/m, working speed: 50-1500mm/min.
• 🛠️【Precision and Durability】The 2.2KW water-cooled VFD is available operating for long time, which can reinforced the processing abilty of the machine and can be used toprocess aluminum alloy and hard wood.High quality accurate ball Screws drive make the engrving more precision.Anti-blackflash, high precision, long life circle, water cooling spindle works more stable and durable.
• 🛠️【Engraving Machine Parameters】Dimensions:1150*970*650mm(L*W*H); Working platform size:1045*720mm(L*W); Frame material: The whole machine adopts 6061 aluminum profile; Maximum feeding height: ≤140mm (Z axis base to platform); X, Y, Z work Area:900(Y)*600(X)*140mm(Z).
• 🛠️【Wide Application】It can work with various materials(metallic & non-metallic), such as: wood, pmma or other plastic, MDF board, native wood, PVC, Acrylic, wood, composite board plywood. and soft metal .like aluminum, copper and silver to engrave them into 3D/2D works etc. Water cooled spindle motor can work longer time than air cooled motor.Water cooled spindle motor has higher stability and better concentricity than air cooled motor.(tips：1. The spindle motor must connect with the VFD.)
• 🛠️【Friendly Reminder】The control software used by the engraver machine is MACH3. The engraving machine recognizes the G code, so need convert the picture to be processed into the G code to be able to identify the product. The format of the code is nc ncc tap. These formats can be recognized.We have tried the USB model, win10 can be, but not 100% sure. Generally speaking, windows XP / win7 with 32 bites/64BITS is used.

Description

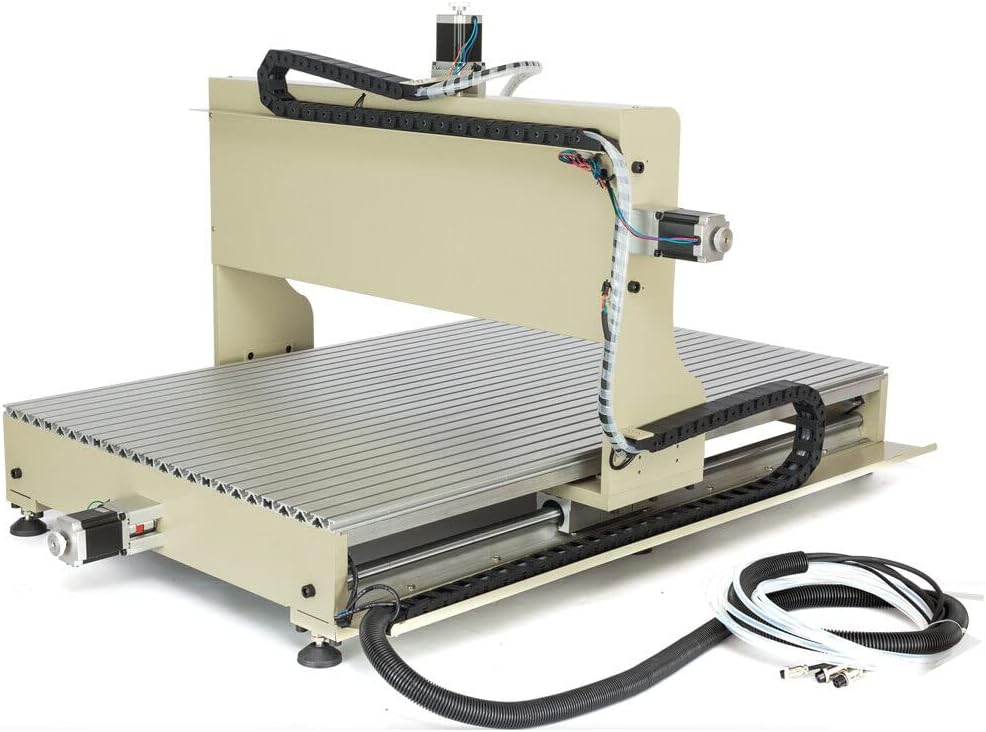

CNC 6090 router 4 Axis+2.2kw Spindle motor +VFD +USB Port Metal Wood Engraver with tool sensor

2200W-6090T1-USB-B+2200W-6090T2-USB-B+OT-XJZ-453

CNC Router engraving machine parameters:

• Model: CNC6090GZ
• Outside dimension: 1150x970x650mm(LxWxH)
• Working platform size: 1045x720mm(LxW)
• Frame Material: The whole machine used 6061 aluminum profiles
• Max. Feeding height: ≤140mm(From base of Z axis to platform)
• X, Y, Z Working Area: 600x900x150mm

Sliding unit:

• X axis: SFU1605 Ball Screws;
• Y axis: SFU1605 Ball Screws;
• Z axis: SFU1204 Ball Screws

Drive unit:

• X axis: ø20 High intensity round rail;
• Y axis: SBRø20 high-strength aluminum base rails;
• Z axis: ø12 high-strength round rail

• Stepping motor: two-phase 3A (with handwheels)
• Driving Power for Stepping motor: AC110, 240W, Output DC 24V, 10A
• Maximum Idle speed: 1500mm/m
• Working Speed: 50-1500mm/min (different material with different speed settings)

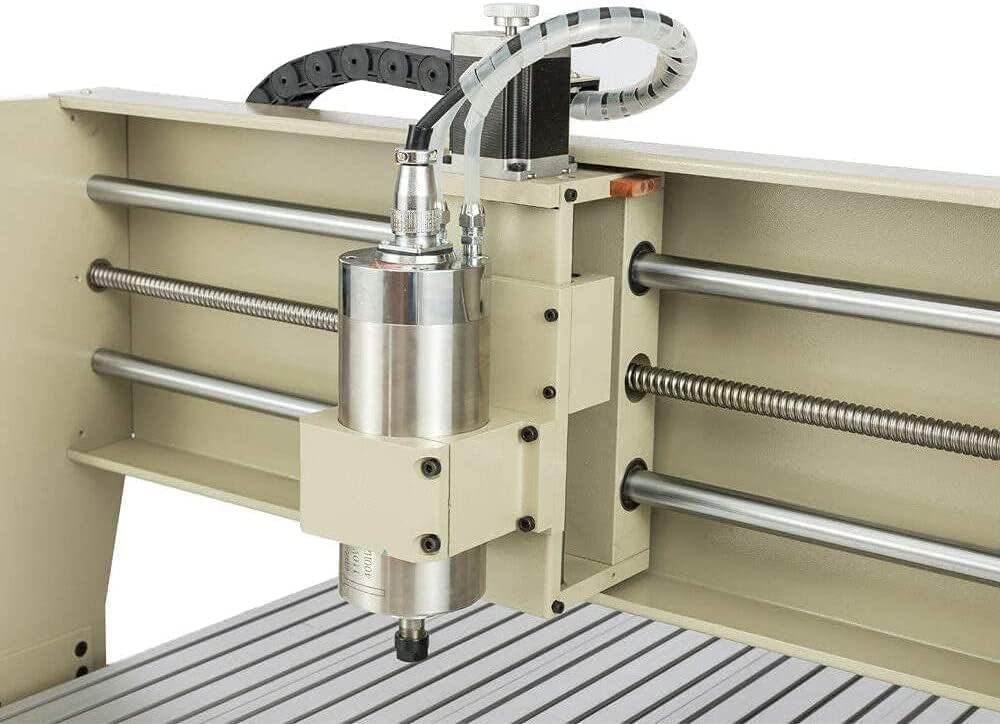

• Spindle motor: 2200Whigh-speed variable frequency spindle motor, ER11 chuck, matching 6mm bur

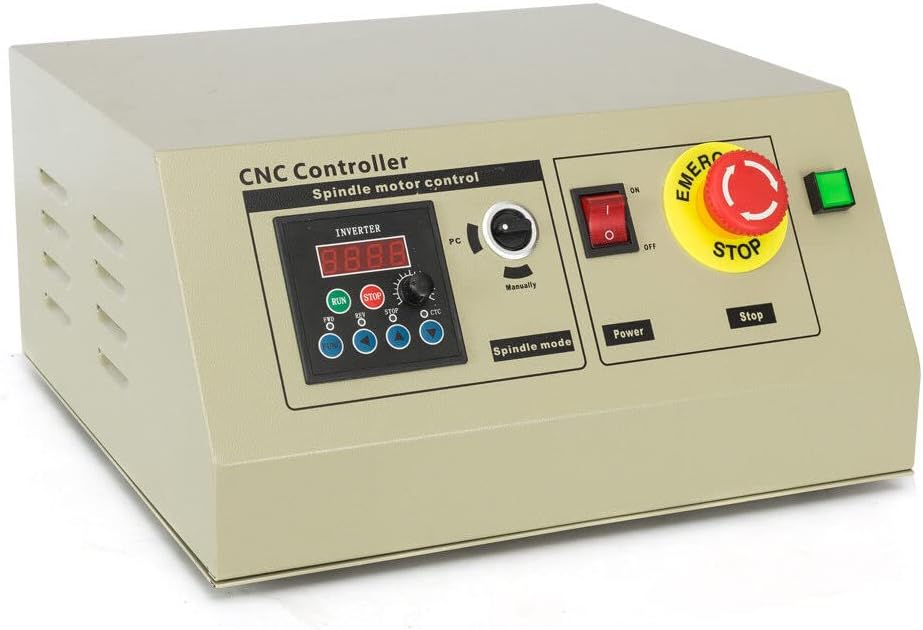

• Variable-frequency Drive(VFD): AC110V, 2200W, 0-400Hz (built-in Control box )
• （tips：1. The spindle motor must connect with the VFD. 2. It cannot directly connect with the supply voltage (AC110V). 3. Please don’t change the data setting of the VFD if you are not professional technicians, or it might damage the spindle motor.)
• Drive of Stepping motor0-3.5A adjustable four-axis drive(TB6560AHQchip, 24V power supply, 2, 4, 8, 16 Subdivision
• settings, Factory setting: 8 subdivided)
• Repositioning precision: ≤0.05mm
• Speed: 0-24000r/m
• Cooling method: Water cooling, Matching heat dissipation water pump
• Spindle precision: Radial runout≤0.03mm
• Carving command:G code/TAB file/nc/TAB /NCC/file
• Protection: Emergency stop button
• Communication interface: through USB PORT connect with computer
• Software environment:Windows XP / win7 with 32 bites/64BITS
• Input Volts: AC110V
• Gross weight of machine:About 145kg/320lb
• Update function: with limit switch

Application industry:

• Woodworking industry: sculpture, round carving, wooden handicraft processing
• Advertising signs: logo making, cutting acrylic , plastic molding, suit for making a variety of materials advertising decorative products
• Other industries: The engraver could do shadow-carved, sculpture which widely used in the gift industry; can be used in aluminum cutting industry,such as aluminum, aluminum-plastic plate, aluminum honeycomb panels, aluminum, 3D engraving process, Artificial plate, cutting LED and neon letter , making plastic light box model; also can engrave on acrylic, copper, PVC board, artificial stone, MDF board, and other metal sheet.

Feature:

1. The NEW 2.2KW water-cooled VFD is available operating for long time, which can reinforced the processing ability of the machine and can be used to engrave on aluminum alloy and hard wood.

2. water cooling spindle works more stable and durable.

3. High quality accurate ball Screws drive make the engrving more precision. Anti-blackflash, high precision, long life circle.

How to use:

1. Assembling and locating the CNC machine on steady desk well.

2. Make sure that your computer has a USB port output.

3. Place the control box in a ventilated dry place where there is no dust, no moisture

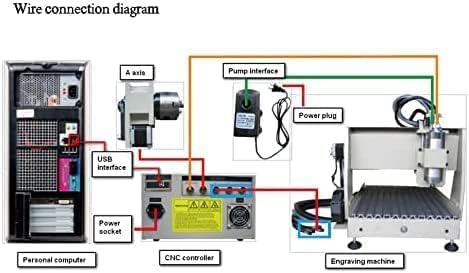

4. Connecting the control box with the CNC machine and you computer and make sure the plug will not come off.

5. Correctly connect the machine with the controller. Don’t suspended the cable which connect the Spindle motor with axis(X, Y, Z, A). Otherwise, it will damage the driver of the controller.

6. Correctly instal the Spindle motor and the heat pump. The heat pump should be covered completely in the water, then turned on the electric current to check whether the water-cooling system working well.

7. Before turn on the machine, please check all the cable and water- cooling system to make sure they are working fine.

8. You can enjoy making you dream with using our CNC machine now.

Package list:

• 1X main unit (Frame)
• 1X main unit (working base)
• 2X Fence baffle
• 1X control box
• 1X A axis
• 1X Sinal cable for A axis
• 1X pump
• 1X USB cable
• 2X cutter 2*6mm
• 2X cutter 3*6mm
• 10X 4*7mm round head
• 6X 4*10mm black Inner six angle screw with nut
• 8X 5*20mm black Inner six angle screw
• 4X 5*8mm Flat Philip’s head screw with nut and gasket
• 8X 6*24mm BALCK FLAT Inner six angle screw
• 12X Aluminium fastener
• 1X 13-15# Wrench
• 1X 14-17# Wrench
• 2X six angle Wrench(3mm)
• 2X six angle Wrench(4mm)
• 1X Teflon tape
• 2X Fuse (5A)
• 1X Power cable
• 1X Manual
• 1x Tools Setting Auto-Check Instrument for CNC

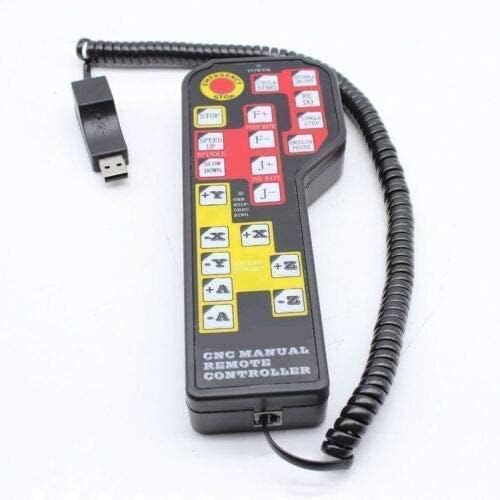

• 1x 4Axis Manual Controller
• Power by USB port

• Dimensions: 22 x 8 x 3cm
• The usb self-check light, you can type the ” scroll” on the keyboard to activate it.
• Directional motion control: X+, X-, Y+, Y-, Z+, Z-, A+, A-
• Feed rate control: F+, F-
• Jog rate: J+, J-
• Spindle speed: speed up, slow down
• Programming: E-stop, cycle start, spindle on/off, Redo, single step, original point

Package Include

• 1 * Remote controller
• 1 * Cable
