RATTMMOTOR YPMC-1000W 110V Servo Motor Kit, Servo Motor with Servo Motor Driver CNC Controller Kit for CNC Engraver Milling Machine/Robot (Without Brake)

110V AC SERVO MOTOR KIT 1000W WITHOUT BRAKE

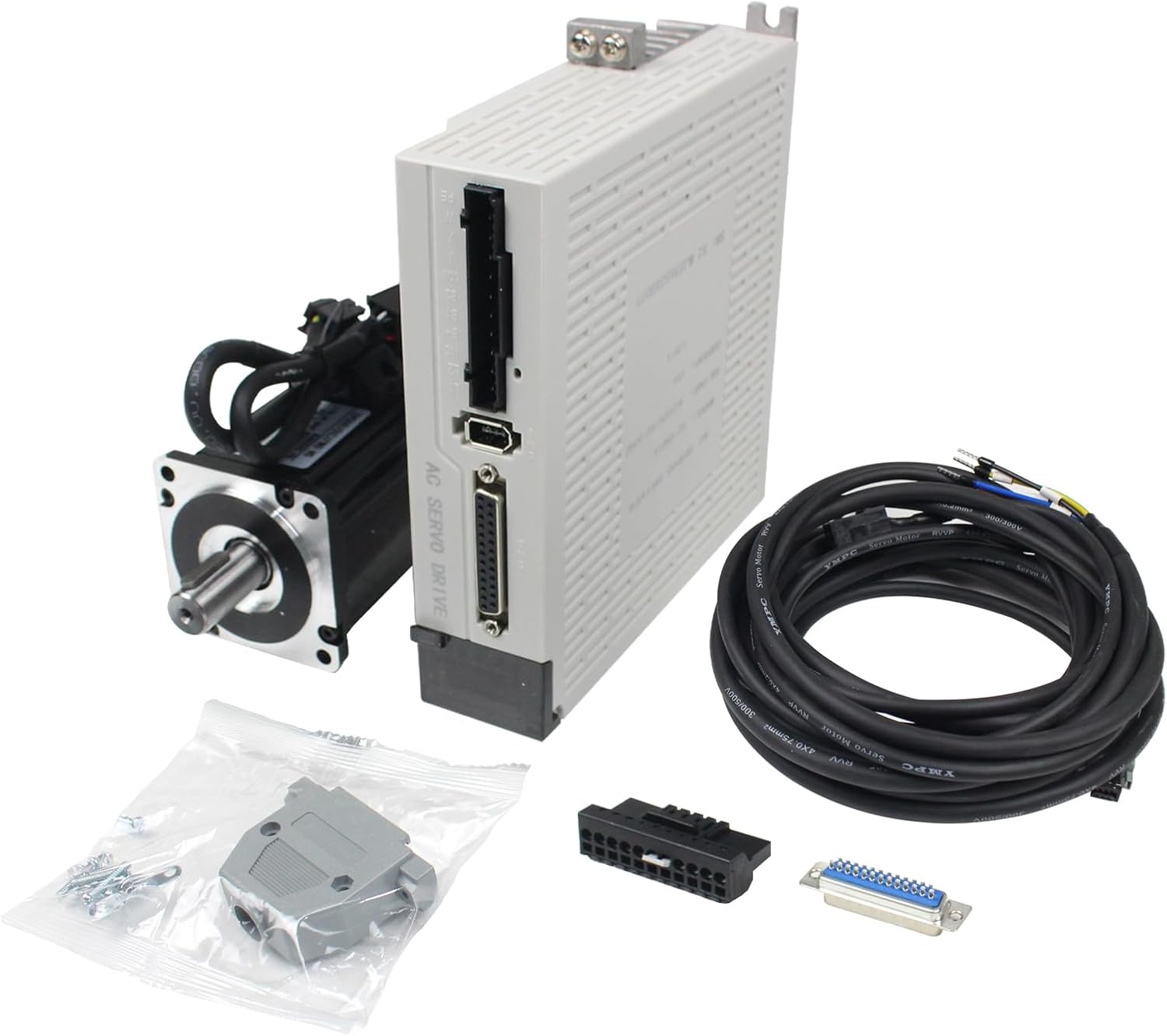

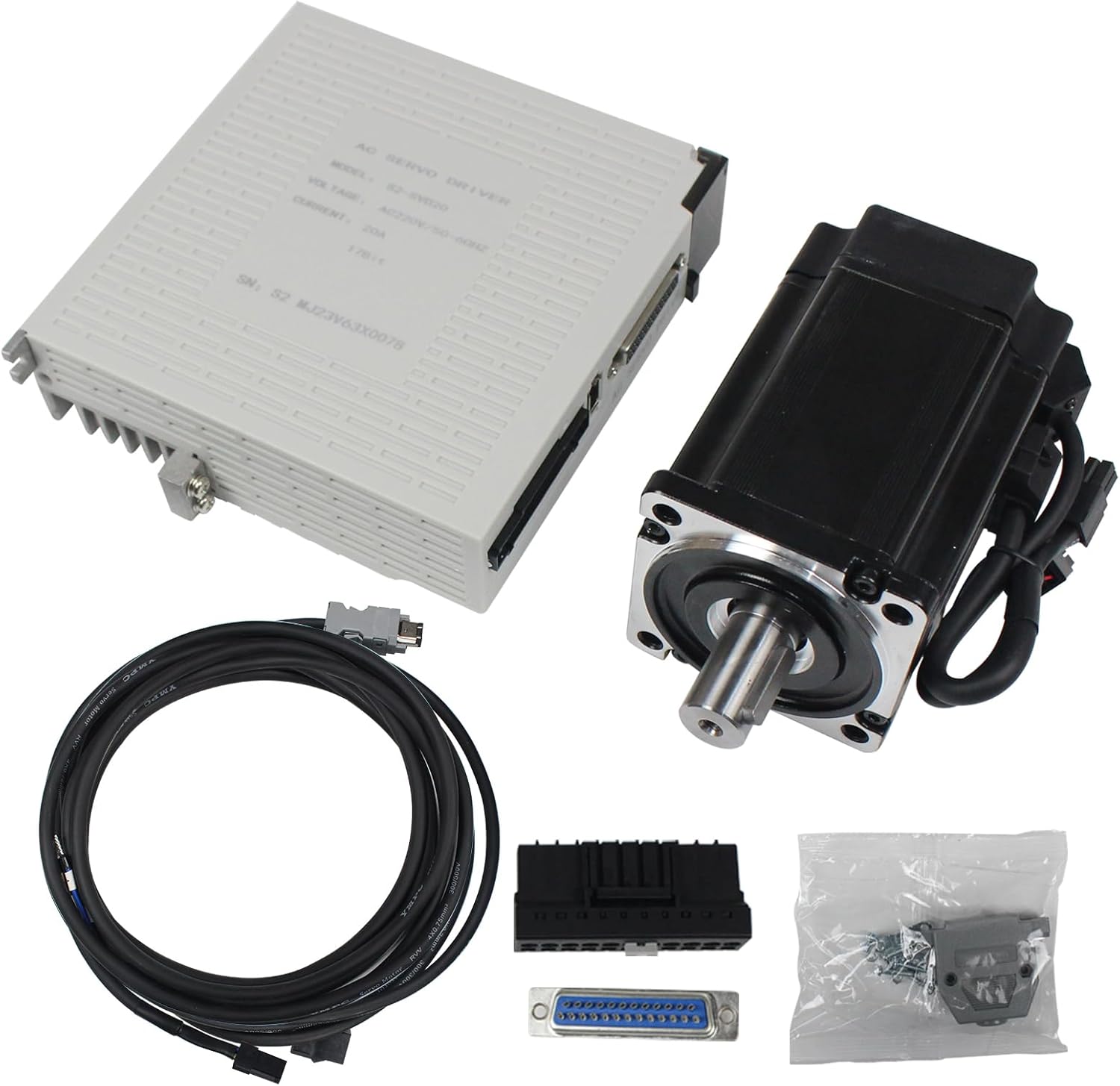

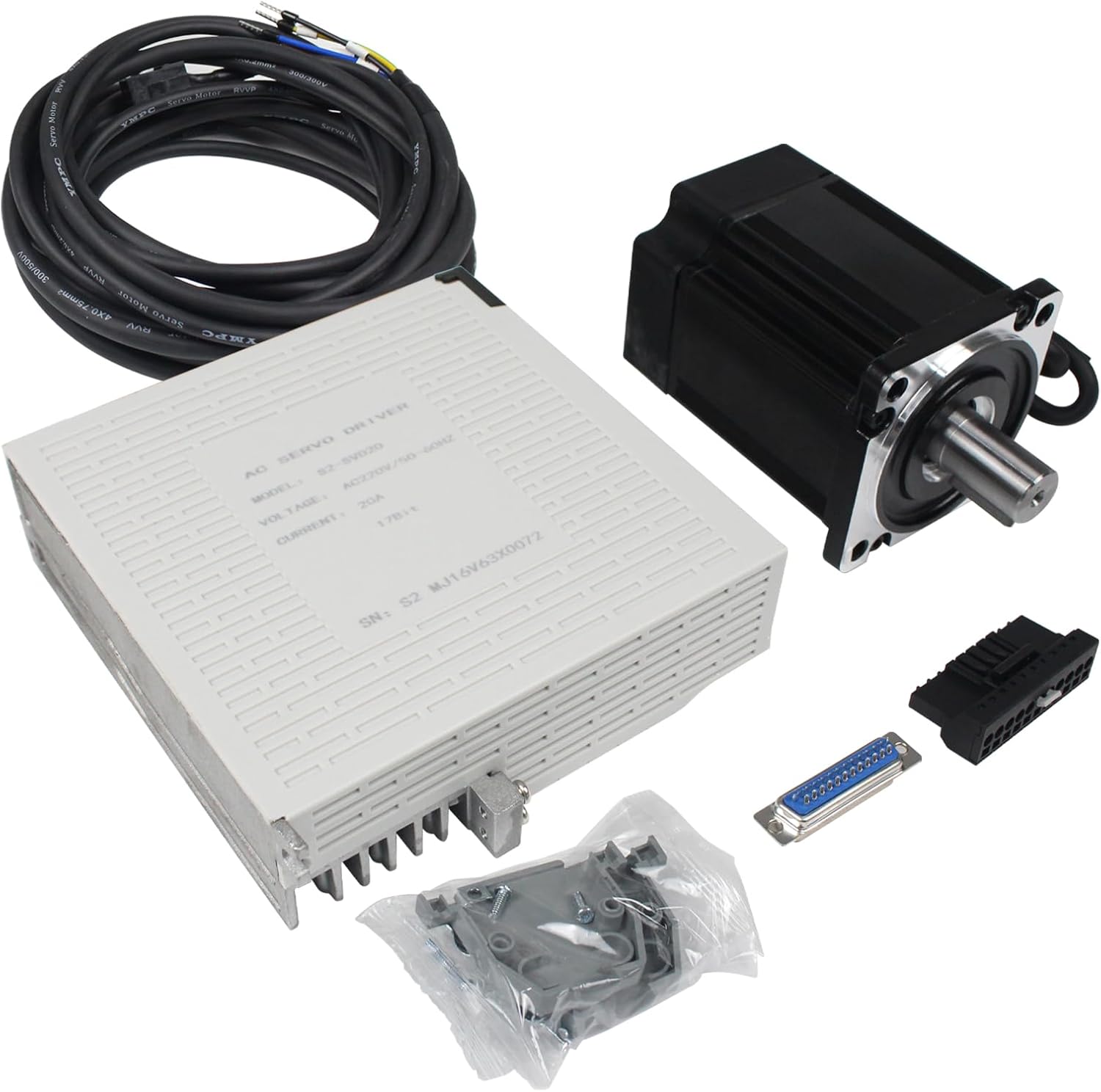

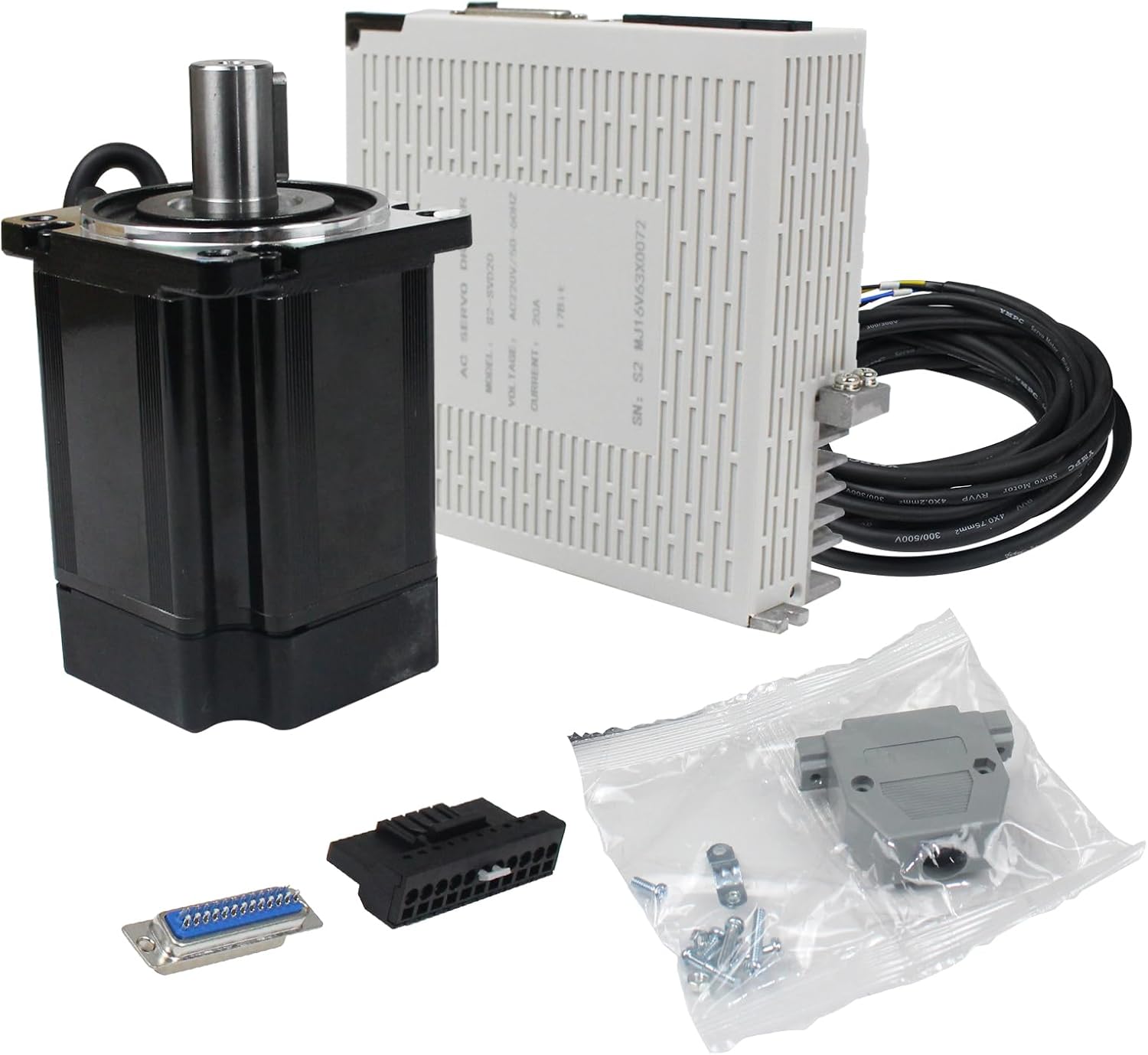

Package Include

1 * A2M110-80SV03230 Type 1000W 110V AC Servo Motor without brake

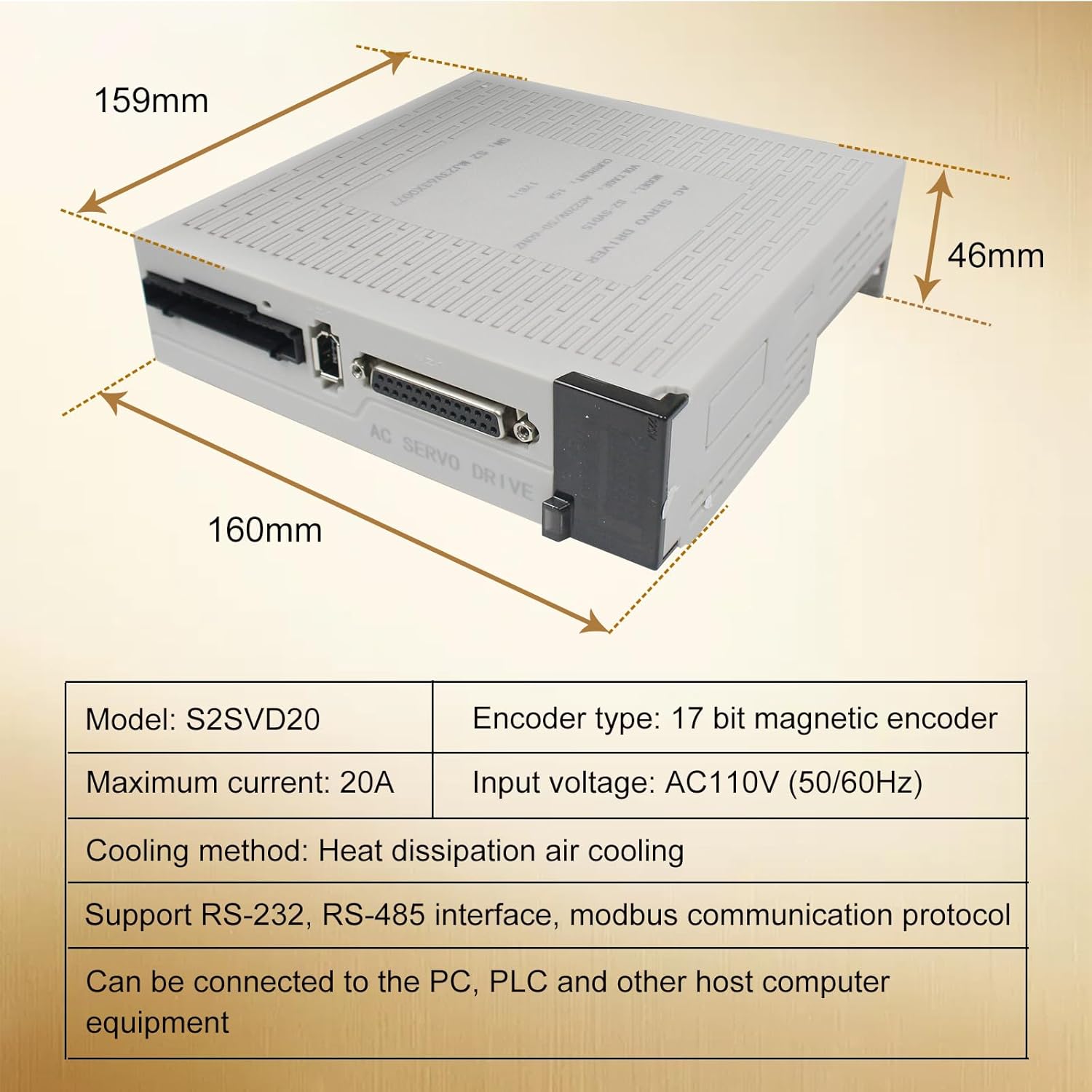

1 * S2SVD20-110 Type Servo Drive

1 * DB25 hole plug and shell

1 * 3m Power cable with plug

1 * 3m Encoder cable with plug

1 * Pdf. user manual (If you have not received the user manual at Amazon Message Center from us,please message us)

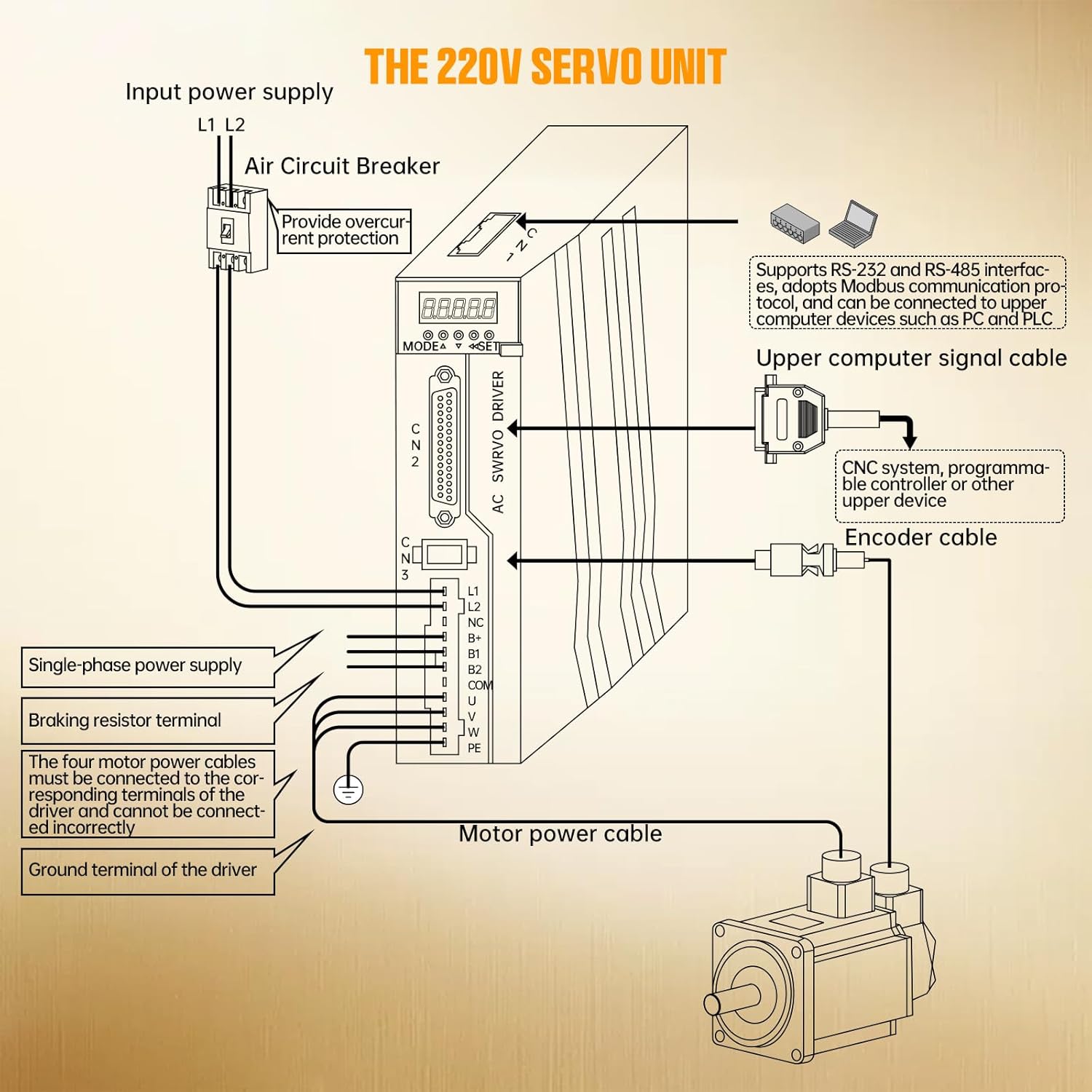

Wiring diagram of S2-SVD servo driver

CN1 port:

• Support RS-232 and RA-485 interfaces, adopts Modbus communication protocol, and can be connected to upper computer devices such as PC and PLC.

CN2 port:

• Upper computer singal cable. Can be connected to CNC system, programmable controller or other upper device.

CN3 port:

• Encoder cable. Connected to servo motor.

L1 / L2:

• Input power supply.

B+ / B1 / B2:

• Braking resistor terminal.

U / V / W:

• Motor power cable. The four motor power cables must be connected to the correspoonding teiminals of the driver and cannot be connected incorrectly.

PE:

• Ground terminal of the driver.

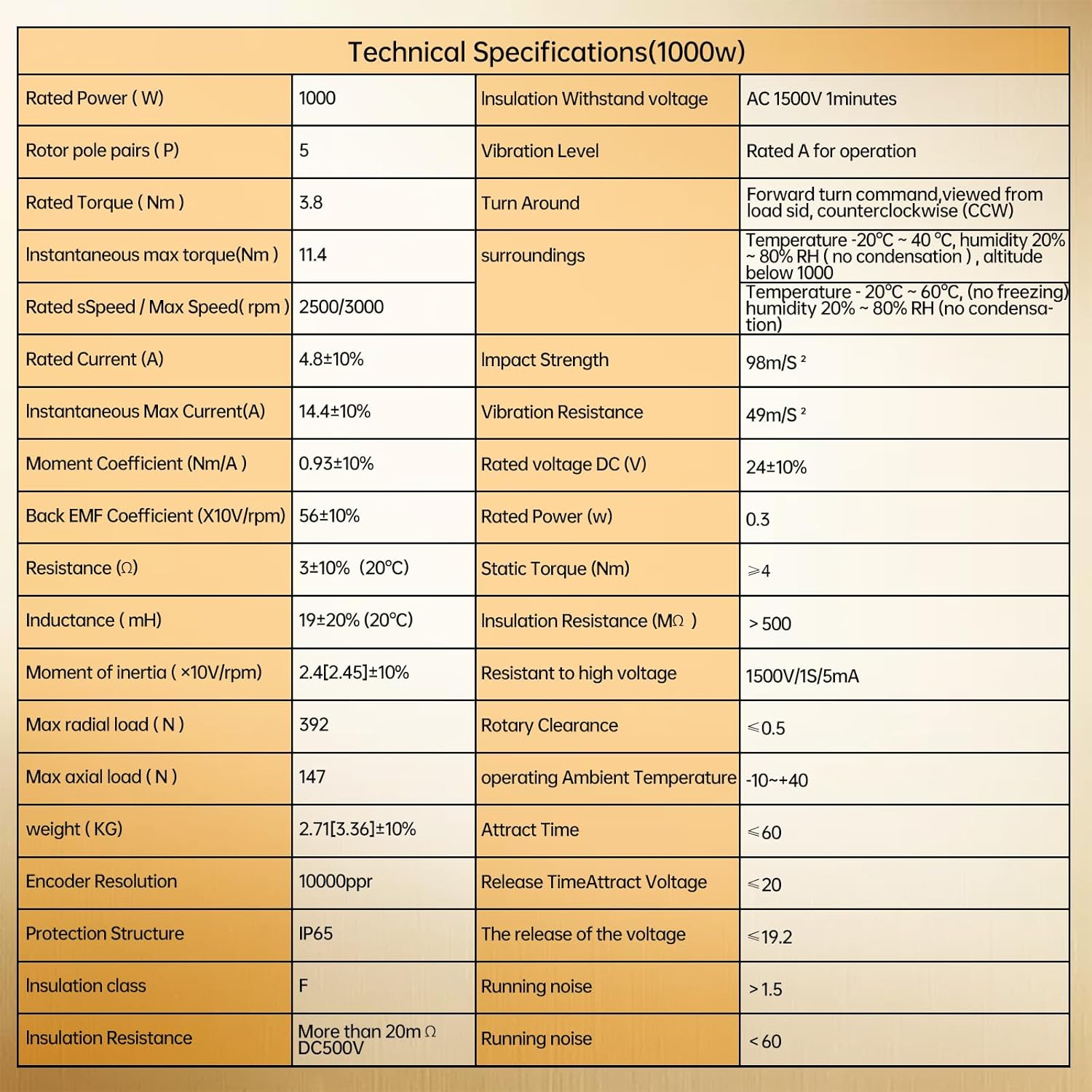

Servo Motor Parameters:

• Model: A2M110-80SV03230
• Power: 1000W
• Rated power supply: 110V
• With brake: No
• Number of poles: 5
• Rated torque: 3.8 N.m
• Instantaneous max torque: 11.4 N.m
• Rated speed: 2500rpm/min
• Max speed: 3000rpm/min
• Moment coefficient ( Nm/A ): 0.93±10%
• Back EMF Coefficient ( X10V/rpm ): 56±10%
• Resistant( Ω ): : 3±10% ( 20℃ )
• Inductance: 19±20% mH ( 20℃ )

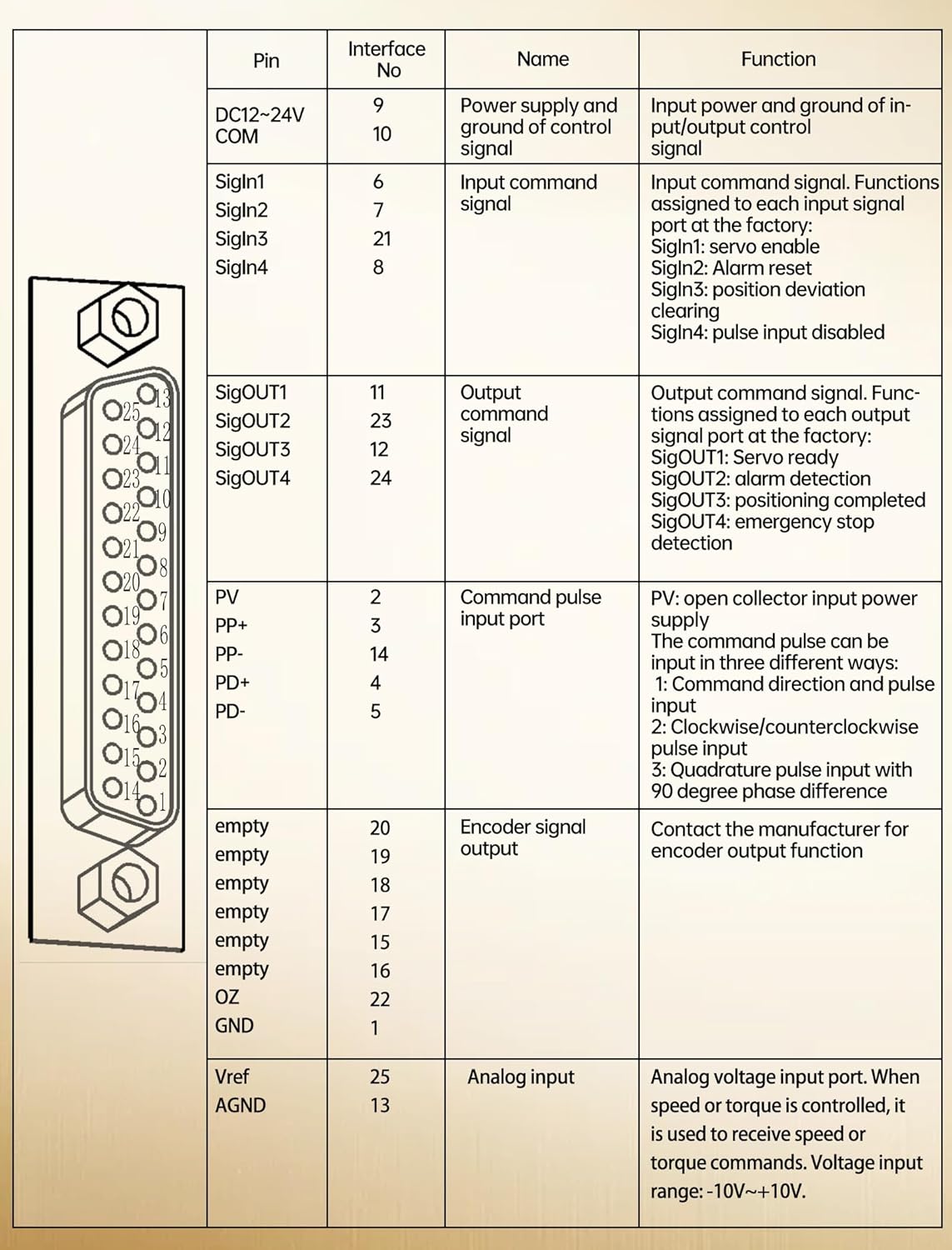

DEFINITION OF CONTROL PORT CN2 PIN ( Interface No-Pin-Name-Fuctiom)

NO.9 (DC12-24V), NO.10(COM) :

• Power supply and gound of inout/output control singal.

NO.6 ( sigin1: servo cable ), NO.7 ( sigin2: alarm reset ), NO.8 ( sigin3: position deviation clearing ), NO.9 ( sigin4: pulse input disable ) :

• Input command signal. Functions assigned to each input signal port at the factory.

NO.2 ( sigout1: PV,open collector input power supply ), NO.3 ( sigout2: PP+ ), NO.14 ( sigout3: PP- ), NO.4 ( sigout4: PD+ ), NO.5 ( sigout4: PD- ) :

• The command pulse can beinput in three different ways:

1. Command direction and pulse input
2. Clockwise/counterclockwise pulse input
3. Quadrature pulse input with 90 degree phase difference.

NO.20 ( empty ), NO.19 ( empty ), NO.18 ( empty ), NO.17 ( empty ), NO.15 ( empty ), NO.16 ( empty ), NO.22 ( OZ ), NO.1 ( GND ) :

• Contact the manufacturer for encoder output function.

NO.25 ( verf ), NO.13 ( AGND ) :

• Analog voltage input port. When speed or torque is controlled, it is used to receive speed or torque commands. Voltage input range: -10V~+10V.
