After the machine is assembled, you can perform basic machine tests. The following is the recommended start up sequence for the system:
- 1. Confirm tha the USB cable of the control board is plugged into your computer, and then start the computer.

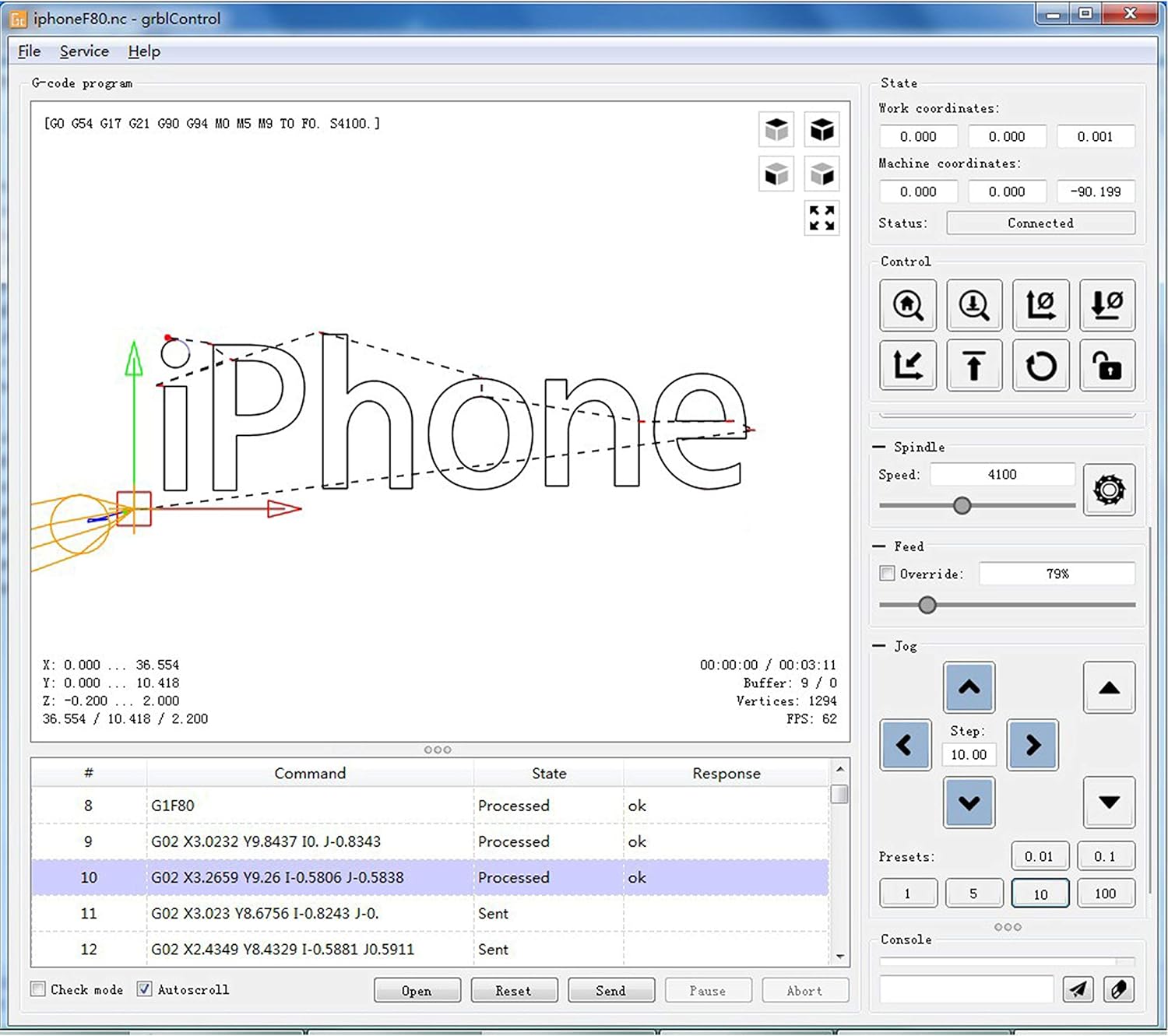

- 2. Start the software and verify in the status window that no errors are displayed. Under normal circumstances, when the control board is connected to the software, it will display " Idle ". If a red error " A larm " appears, you need to click the " Reset " of the softwware with the mouse, and then " unlock " o reach the " Idle " state.
- 3. Make sure that the 24V power supply is connected to the control board first, and then the other end is connected to 110-220V. Press the " on/ off " button on the control panel.
- 4. Next, click the " Spindle " button to ture on the spindle motor. Move the slider left anf right to verify whether the motor speed changes.
- 5. Adjust the value of " Feed " to the range of 200 to 500. Use the mouse to click the direction button on the left to confirm whether the x axis and y axis are moving. In a slimilar manner, click the up and down buttons on the far right to verify that the z axis moves normally. If thre is no problem with all these tests, it means that your engraving machine can work normally. Shut down the maching using the reverse start process.
- 6. Close the control panel.
- 7. Unplug the 24v DC power from the power supply.
- 8. Close the software program and turn off the computer. Remember, if you run the machine offline, the use cable must be disconnected for the control board.
What's in the package

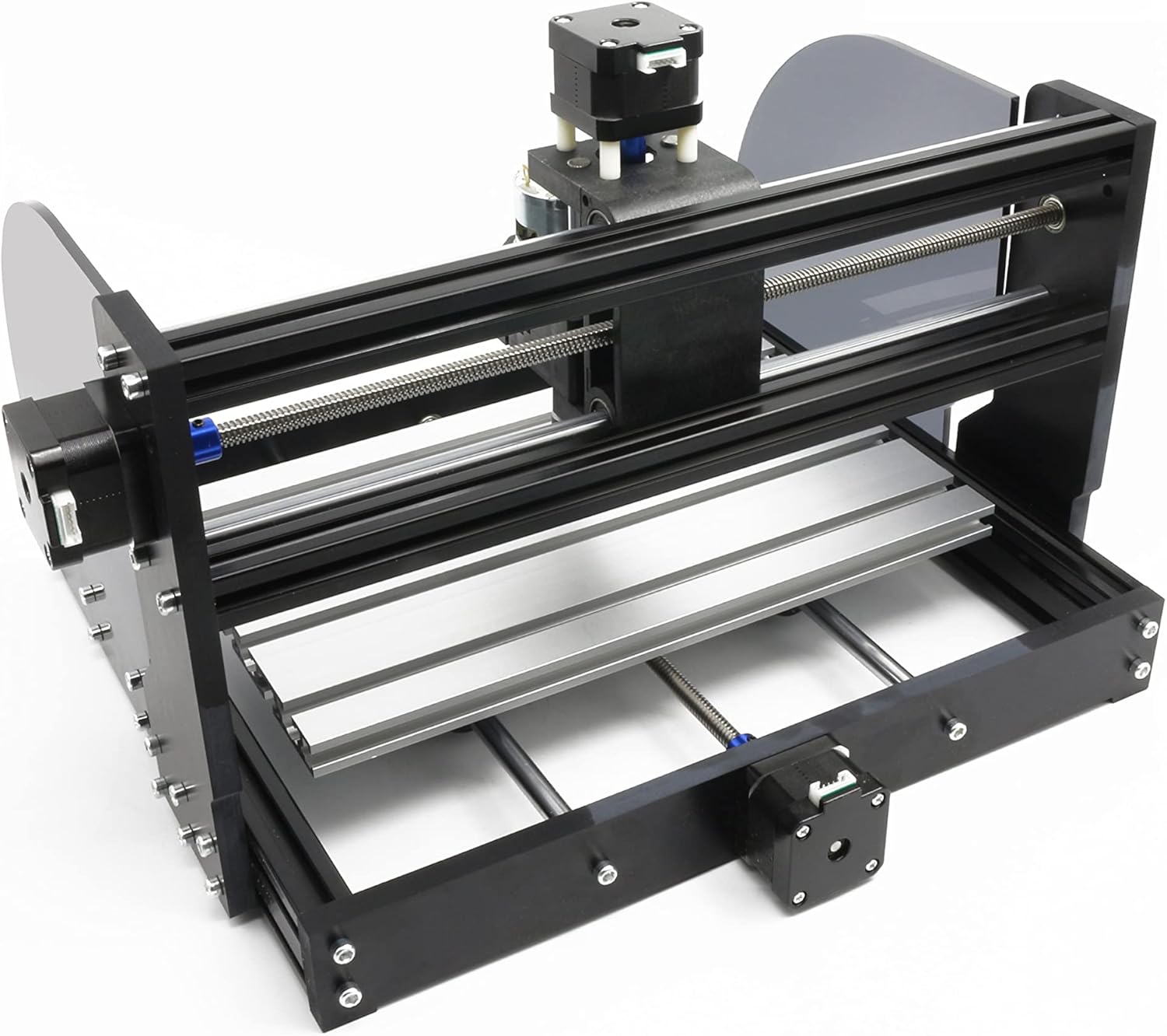

- 1 x DIY MINI CNC Router Machine Kit
- 1 x Power Supply
- 10 x Tip 0.1 mm, 20° 3.175 mm Drill Bits
- 4 x Plate Clamps
- 1 x English Manual
- 1 x 4GB USB Flash Drive
- 1 set Allen Wrench
About machine installation:
- Although this mini engraving machine is shipped in bulk, it is simple and easy to install. The package is equipped with an English installation and operation manual. In addition, we also have an assembly vid-eo, so users do not have to worry about not installing the machine.
- It should be noted that this is only a mini machine suitable for novices or DIY enthusiasts, and cannot be compared with professional industrial machines.
Parameters:
- Work area: 300x180x45 mm ((11.8 x 7.1 x 1.8”)
- Frame: 420x350x270mm (16.53×13.78×10.63”)
- Material: PA6 Nylon + Aluminum profile
- Power supply : 24V 5.6A power adapter (input voltage 110-240V)
- 775 Spindle motor: 12-24VDC 10000RPM
- Collet: ER11 3.175mm (Can be equipped with 0-7mm)
- Stepper motor: Nema17 stepper motor 1.3A, 0.25N.m
- Processing accuracy: About 0.2mm
775 SPINDLE MOTOR
- Power: 100W
- Speed: 10000RPM
- Collet: ER11
- large torque, low friction and stable operation.
- Double ball bearings have low noise.
Supported Engraving Materials:
- Wood, plastic, acrylic, pvc, pcb, carbon fiber, density board, plastic phone cases, rubber stamps, copper , aluminum and other soft materials.
- It should be noted that materials such as jewelry, jade, stainless steel, stone, ceramics and other similar materials are not supported.
Support Format
- Format flies that support 3-Axis engraving: Support G-code files of nc, ncc, tap, txt
- Format flies that support 2-Axis engraving: Support nc, ncc, tap, G-code, ngc, png, jpg, gif, svg
With 10pcs 3.175mm Drill bits
- Tool holder diameter: 3.175mm/0.125in
- Material: Tungsten steel
- Blade length: 15mm/0.59in
- Total length: 38mm/1.5in
- Tip: 0.1mm/0.004inm
- Angle: 20°

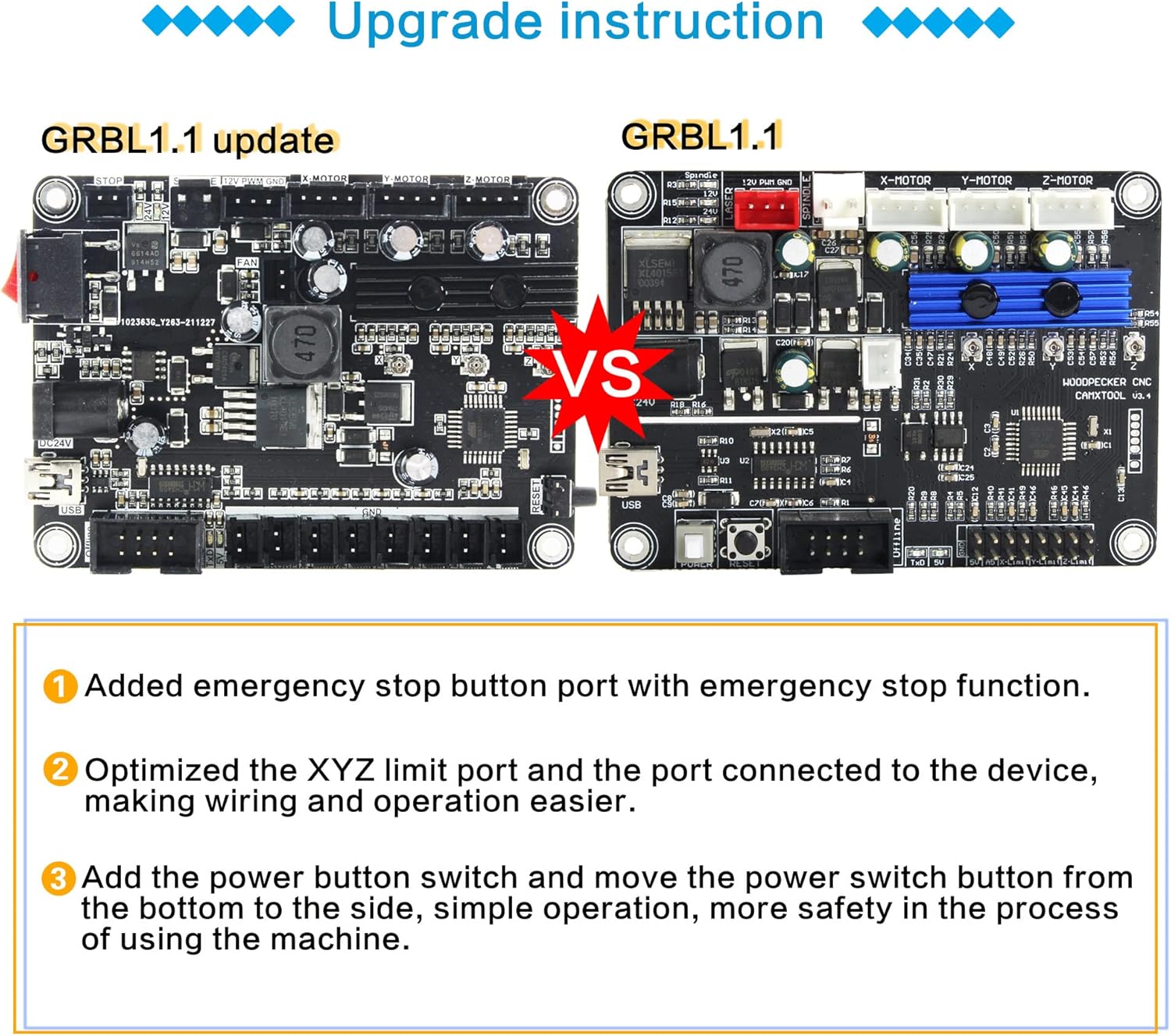

New Fuction
Add the X/Y/Z axis limit switch function, which means that the machine can automatically stop moving when the X/Y/Z axis moves beyond the machine stroke.
Add the emergency stop button function. When the engraving machine is working unusually, you can press this button to stop working immediately.
Advantages:
- Add energency stop button interface.
- Increase optocoupler isolation: this spindle drive increase the optocoupler isolation, which makes the controler generate less heat and the spindle speed adjustment is more safer.
- Optimized the X/Y/Z limit port, making wiring and operation easier.
- Improved USB interface: The original USB interface is patch soldering, transport collision and improper use, easy to drop, now changed to plug-in, very strong.
- Add the power switch button, more safety in the process of using the machine.
- Add the low noise fan port to force heat dissipation.
Fuctions-1
- Support : Supprt emergency stop, X/Y/X axis limit switch, offline controller, probe,ect.
- Enhanced spindle drive, can support up to 20,000 rpm spindle motor.
- Add the outer casing, not only protectt control board in transit, to avoid short circuit problem during use.
- Cancel the drive module,use integrated imported stepper motor drive,with short circuit protection,and integrated heat dissipation aluminum alloy.
Fuctions-2
- Add the low noise fan port to force heat dissipation.
- Add offline recognition,can insert offline modules and computers at the same time. Offline will automatically identify if there is computer control.
