Product description

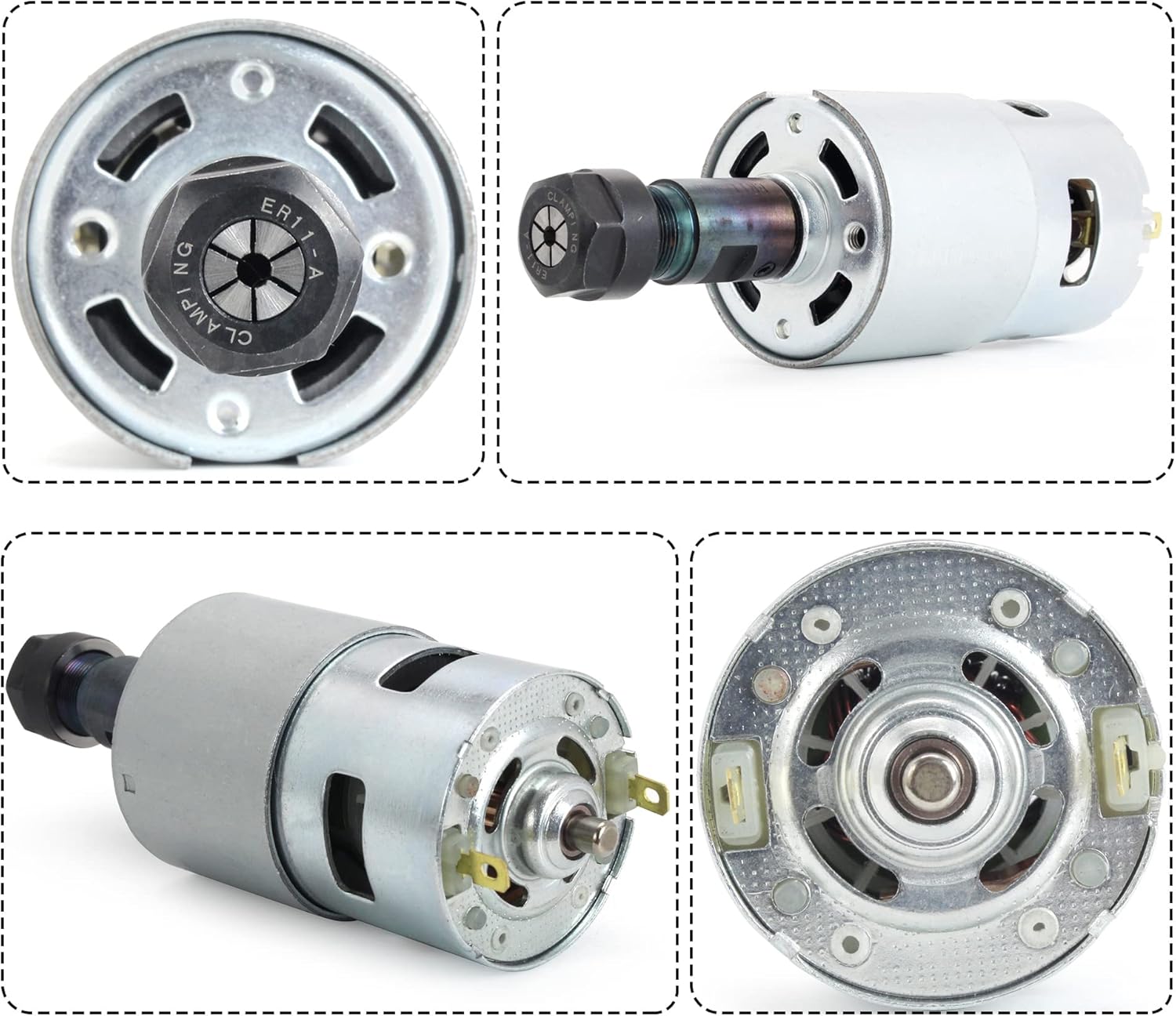

775 SPINDLE MOTOR
- Front and rear double ball bearings, universal DC 12V-24V voltage.
- Shaft diameter: 15mm; Motor diameter (without magnetic sleeve): 42mm
- large torque，low friction and stable operation.
- Double ball bearings have low noise.
- Mounting hole diameter: M4 screw hole; Mounting hole pitch: about 29mm.

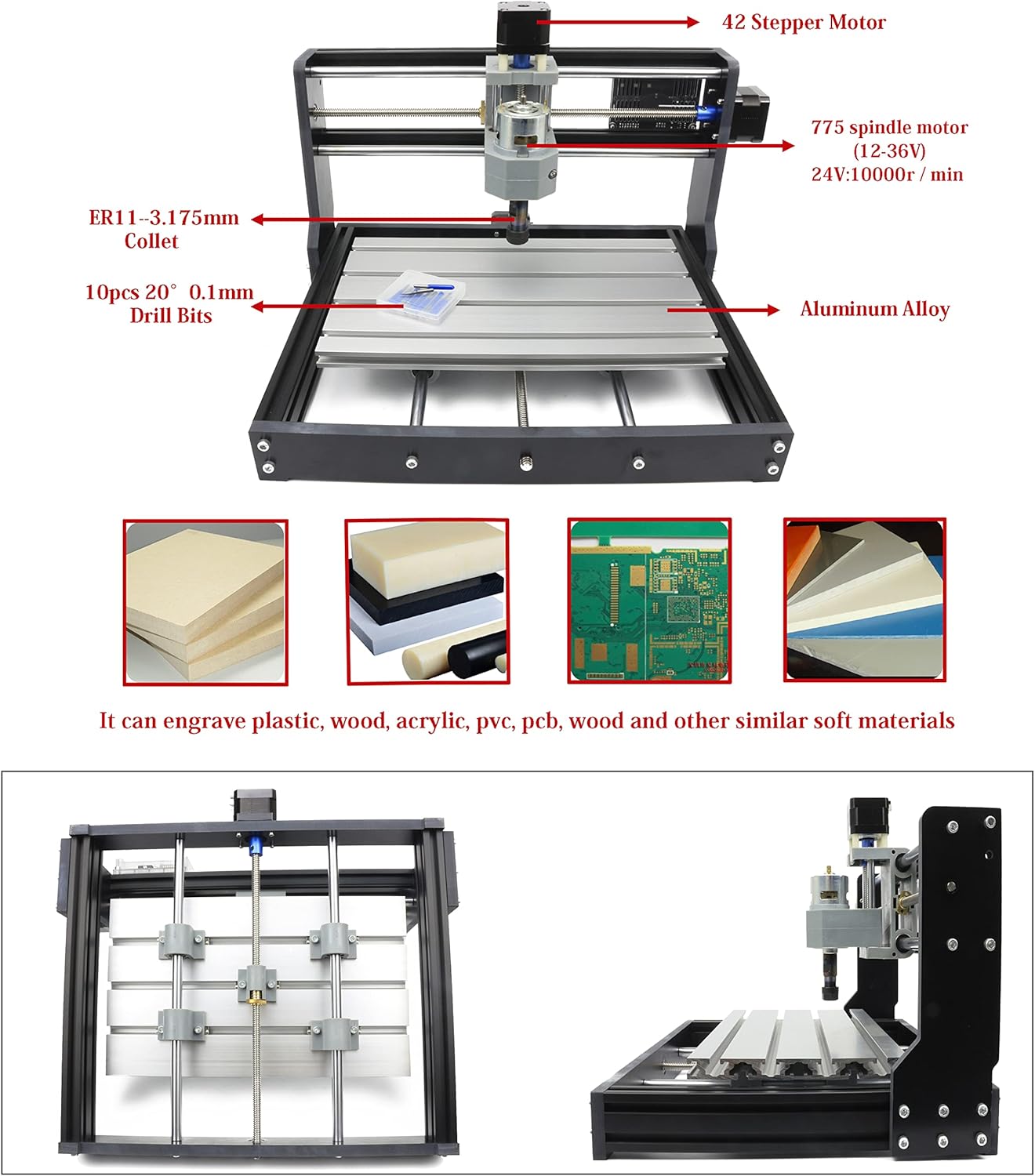

CNC ROUTER MACHINE

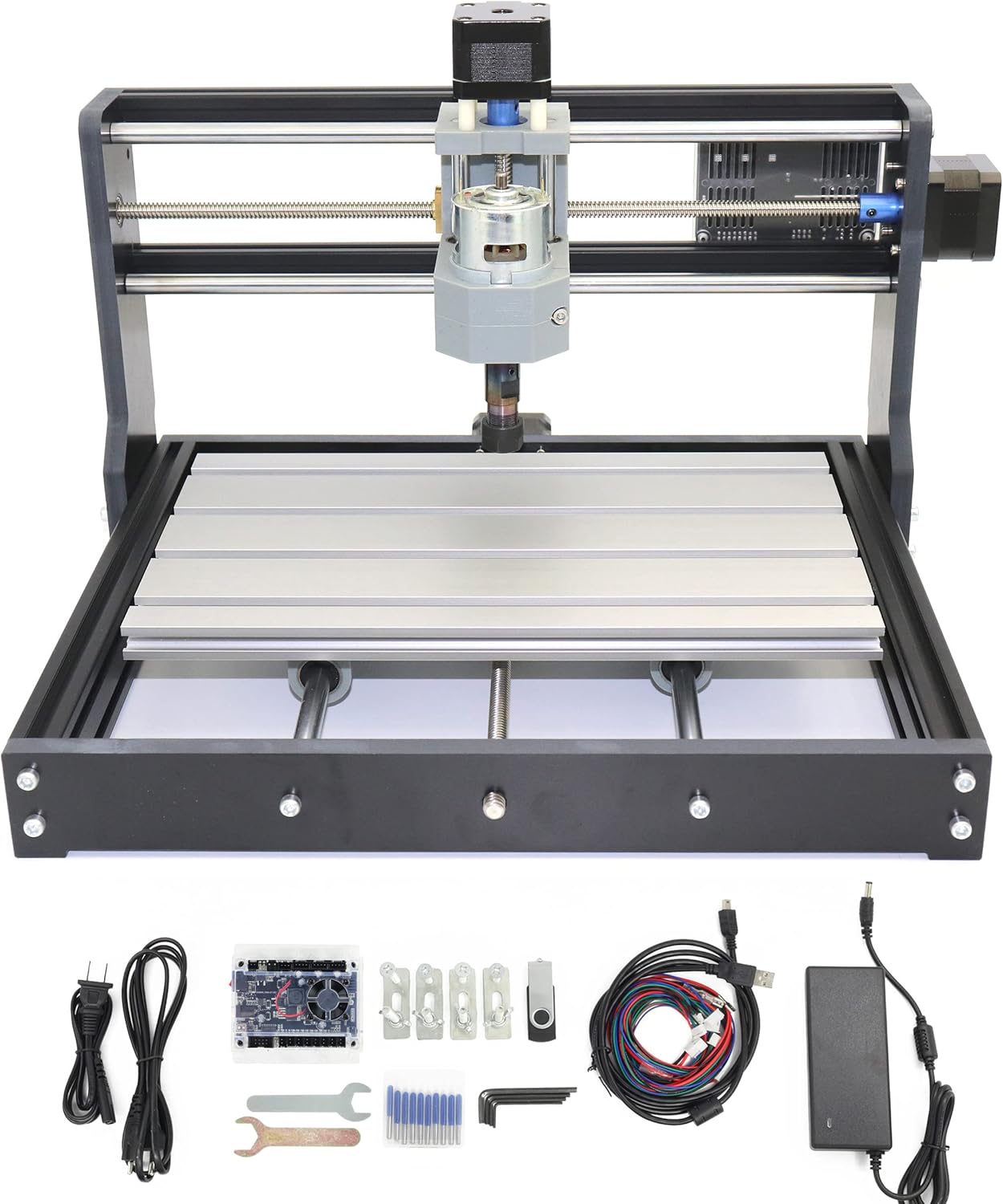

WHAT'S IN THE PACKAGE
- 1 x DIY MINI CNC Router Machine Kit
- 1 x Power Supply
- 1 x CNC Offline Controller
- 10 x Tip 0.1 mm, 20° 3.175 mm Drill Bits
- 4 x Plate Clamps
- 1 x English Manual
- 1 x 4GB USB Flash Drive
- 1 x Brush
- 1 set Allen Wrench

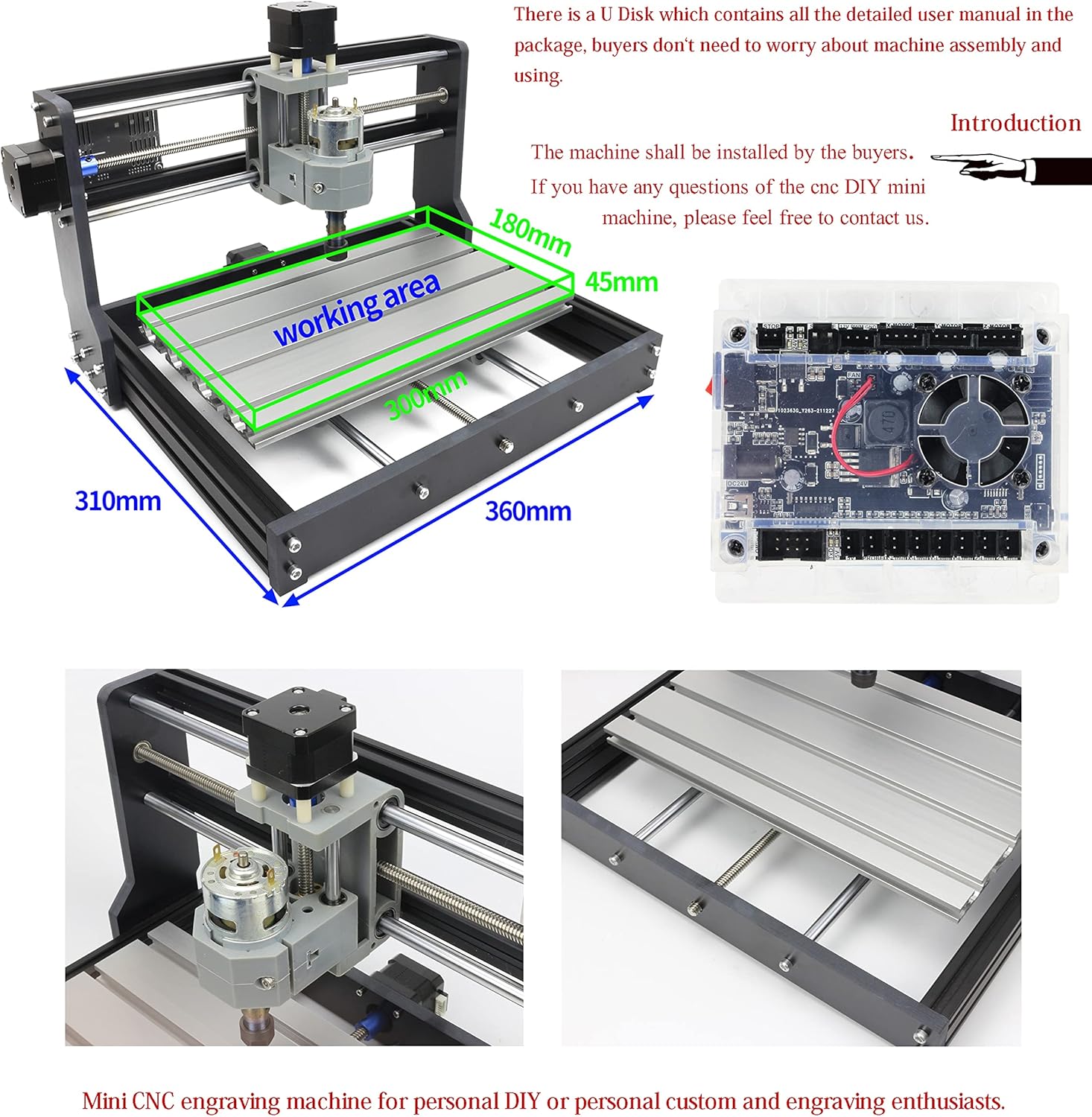

- Work area: 300x180x45 mm ((11.8 x 7.1 x 1.8”)
- Frame: 420x350x270mm (16.53×13.78×10.63”)
- Material: PA6 Nylon + Aluminum profile
- Power supply : 24V 5.6A power adapter (input voltage 110-240V)
- 775 Spindle motor: 12-24VDC 10000RPM
- Collet: ER11 3.175mm (Can be equipped with 0-7mm)
- Step motor: Nema17 stepper motor 1.3A, 0.25N.m
- Processing accuracy: About 0.2mm

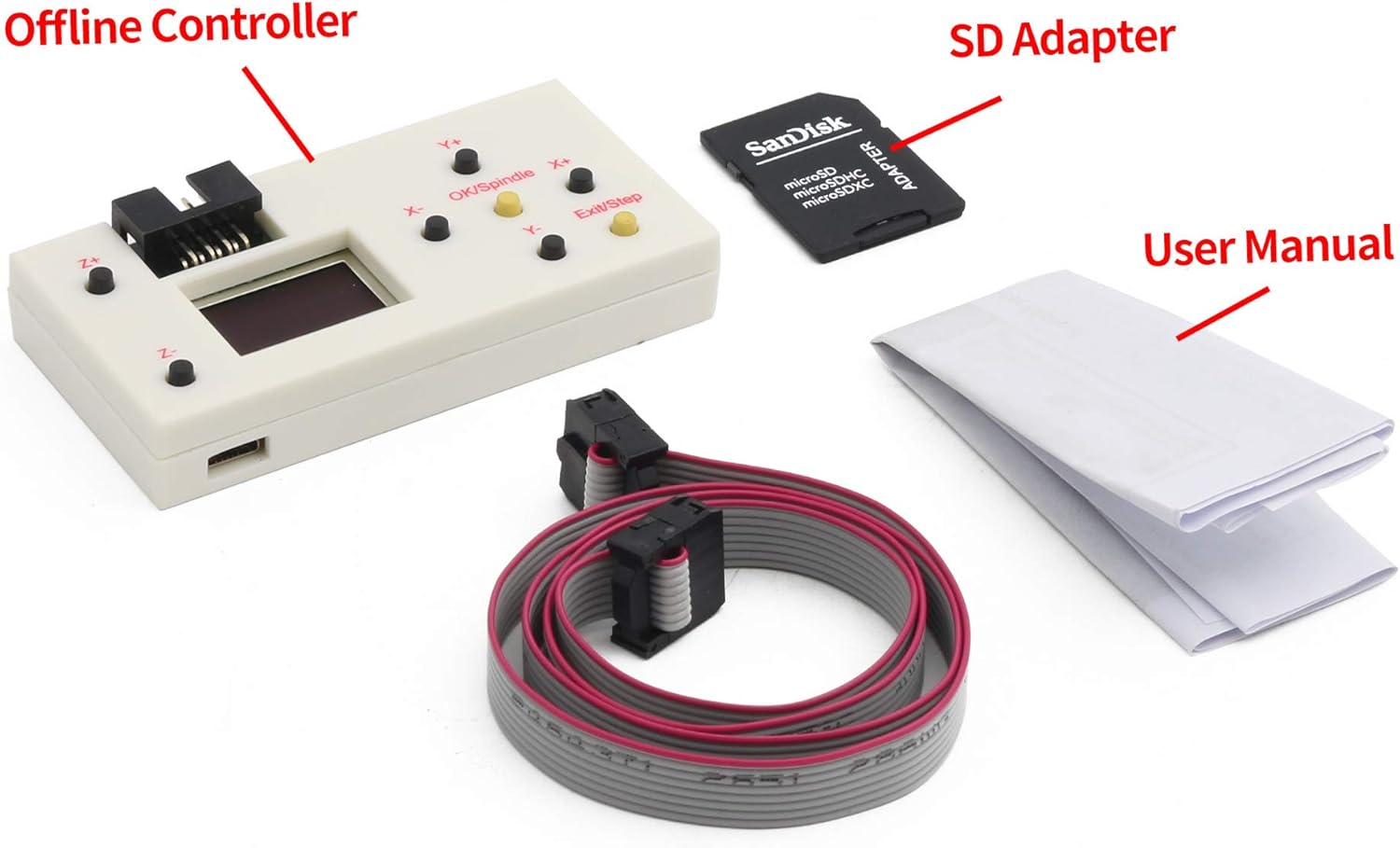

CNC OFFLINE CONTROLLER
- The integral button and the key cap are not easy to fall off.
- Support SD card and TF card at the same time, standard capacity 1G.
- With this moudle, you can directly control the CNC router without connecting it to computer.
- After inserting the file into the SD card,the engraving file can be directly identified.
- You can use the USB cable to connect the module to your computer and save the file directly.
- Common supported formats include nc. tex. tap.
- After pressing the spindle button, press and hold the OK button and the Z+/Z- button simultaneously to increase/decrease the speed.

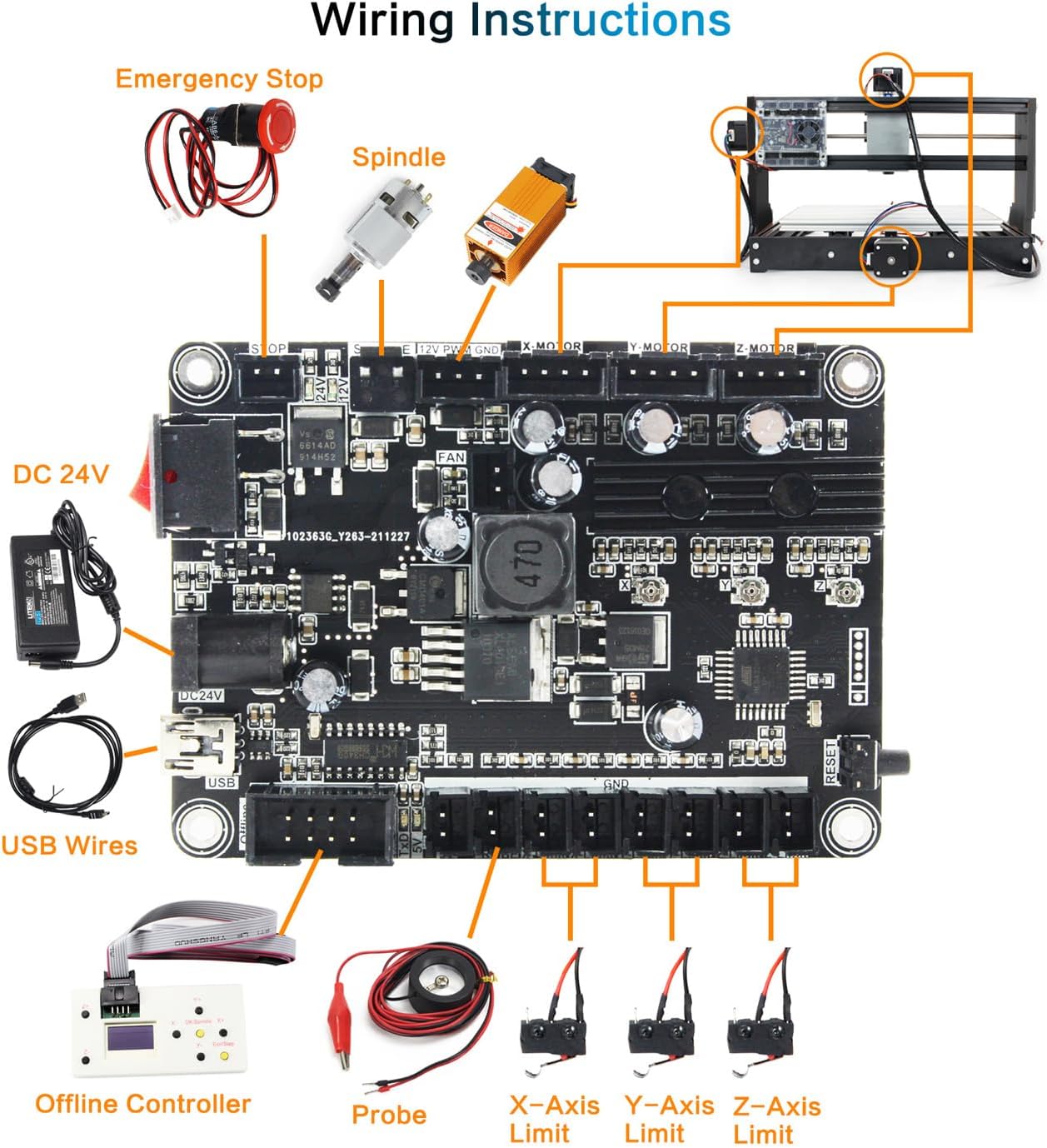

GRBL1.1 CONTROLLER BOARD
Parameters and Fuctions:
- Input voltage: 12-24V
- Master chip: atmel 328P
- Connection: PC-USB connection
- Spindle PWM speed: Support
- Supporting file:G-code (.nc/.txt/.tape/.gcode)
- Spindle drive chip: MOSFET
- Support Fuctions: limit switch, tool setting, steering gear, cooling fan, ect.

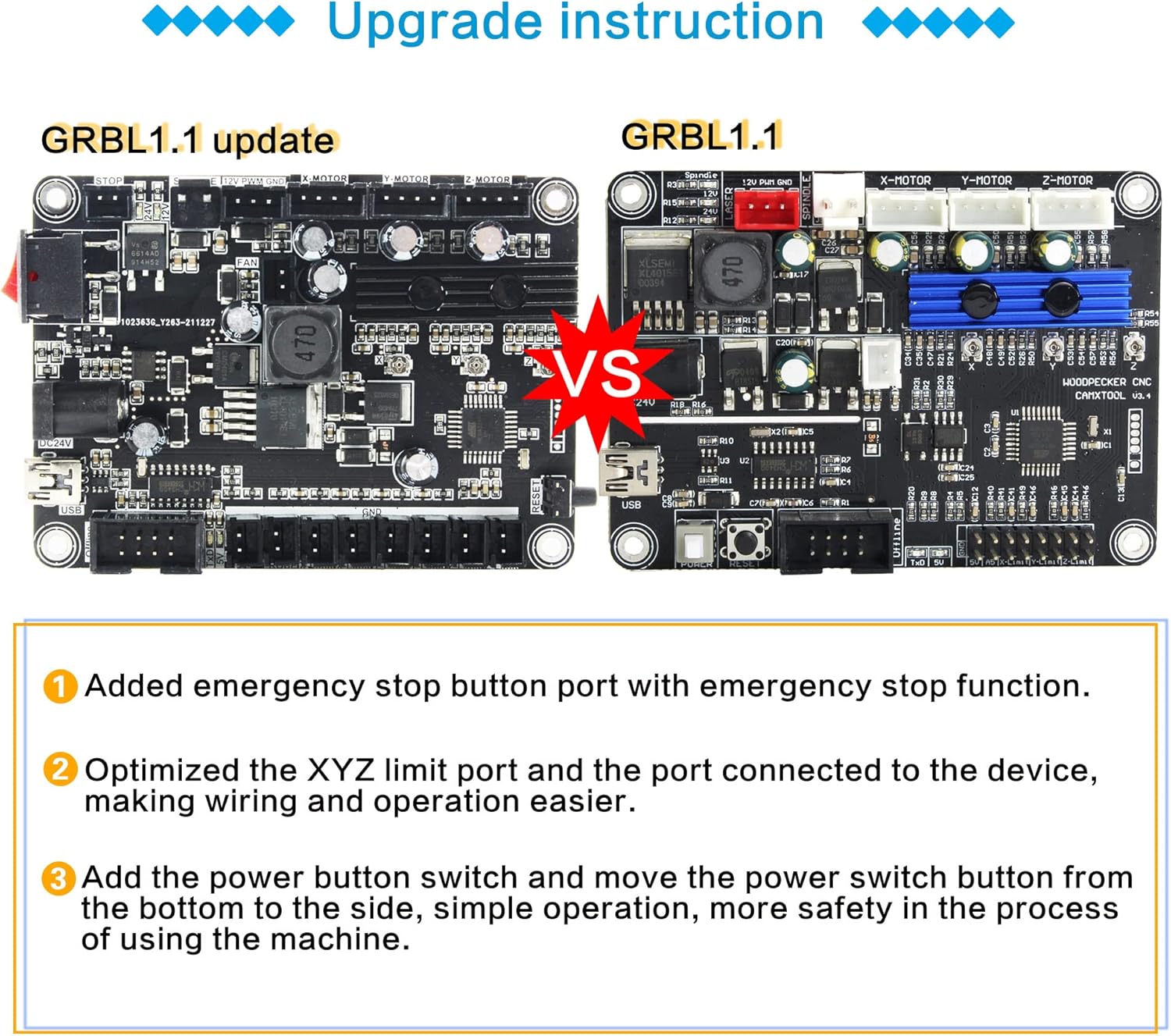

- Cancel the drive modulle, integrate the imported stepper motor drive, and comes with short circuit protecttion, no need to worry about modulle damage.
- Add offline recognition function, you can insert offline controller and computer at the same time. The machine will automatically recognize it.
- Enhanced spindle drive. It can support 20,000 rpm spindle. Support higher power spindle.
- Increase the power button switch (this switch is the control signal of the power supply, no large current passes through the switch, don't worry about the size of the switch)
- The spindle supports 0-100% adjustable PWM power. Support PWM / TTL signal control, power 0-100% adjustable!

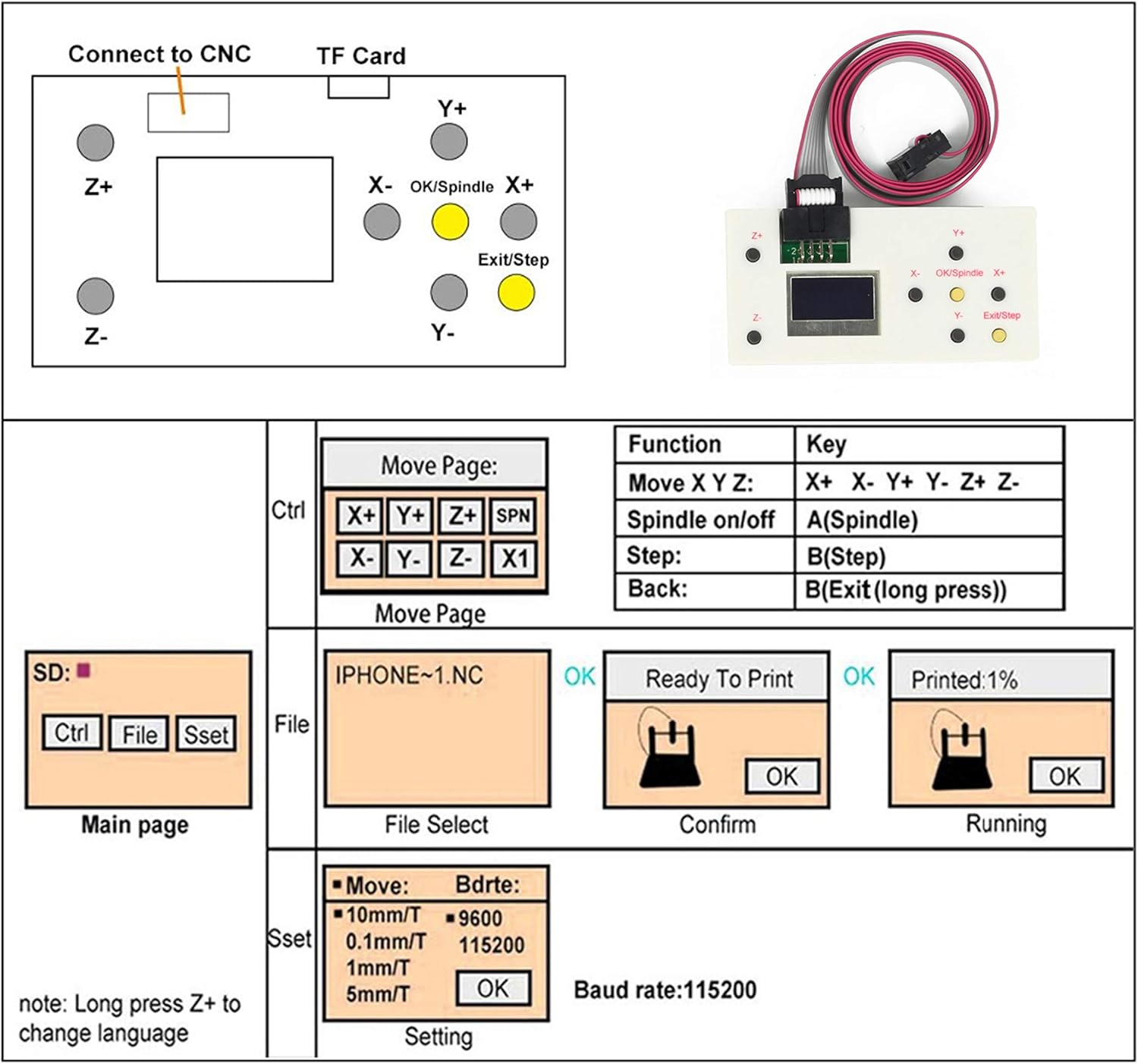

- Main Page
1) Ctrl: Machine Control; 2) File: Use the Gcode file; 3) Press [Y+] [Y-] to select; 4) Press[Ok] to Enter.
- Control Page
1) X± Y± Z±: Moving Axis; 2) OK/Spindle: Spindle ON/OFF; 3)Exit/Step: Change Step/Exit (long press
- File Page
1) Press [Y+] [Y-] to select file; 2) Press [Ok] to Enter; 3)Press [Ok] to begin if you are ready; 4) Note: Long press [Exit] to stop machining
