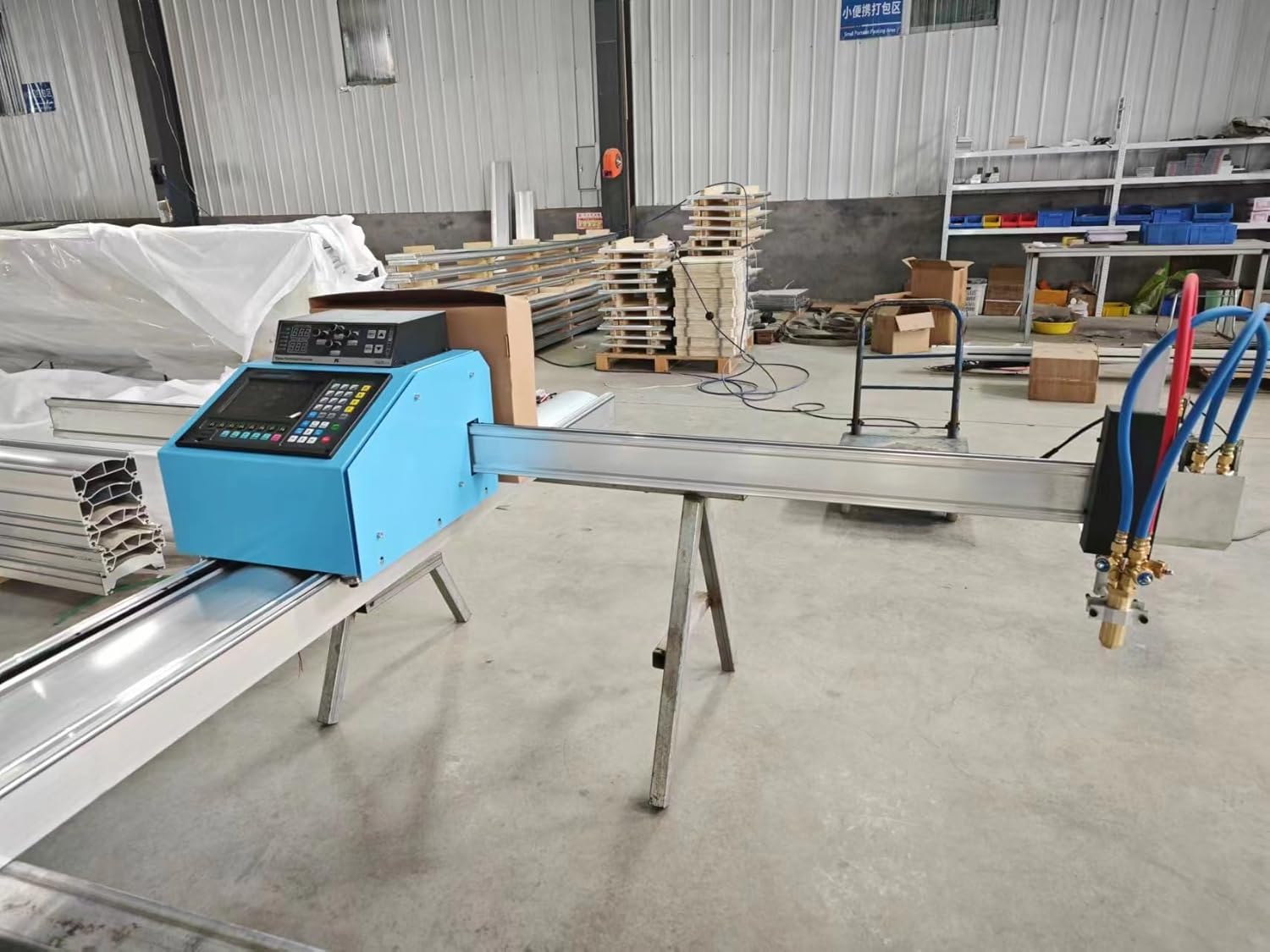

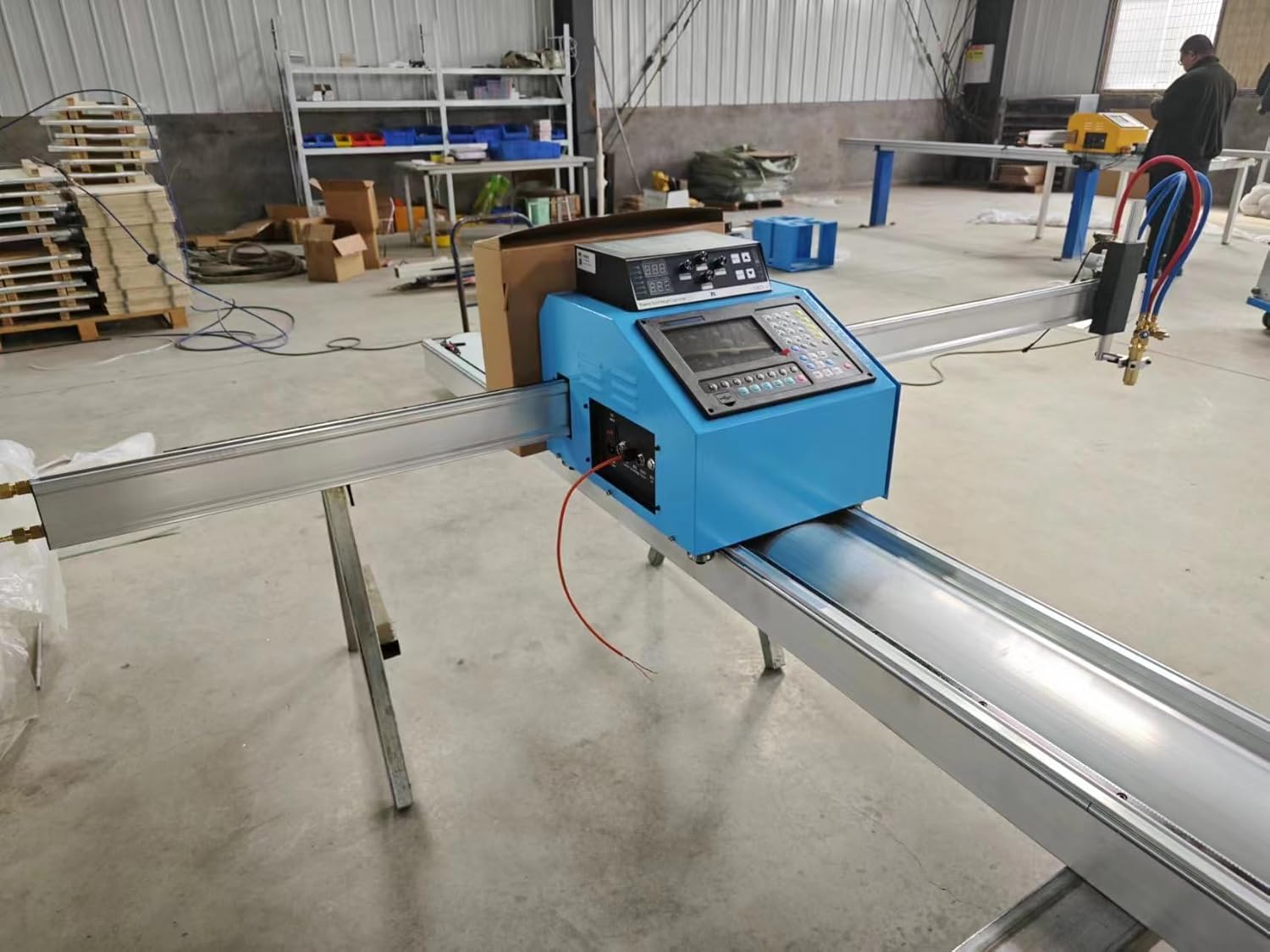

Portable CNC Cutting Machine supporting oxyfuel gas flame and plasma cutting

• The wider Y-axis aluminum alloy guide rail has an effective cutting width of 70 inches, and the effective cutting length can be extended longer.
• THC-automatic plasma torch height controller. Plasma THC upgrade from F1620 to F1621
• StarCAM nesting software with USB key. dxf. file convert cnc , txt G code.
• Flame torch assembly being including. Flame(Oxyfuel) Cutting Gas: LPG/Coal gas, Propane, Acetylene.

Product information
THC-automatic plasma torch height controller.

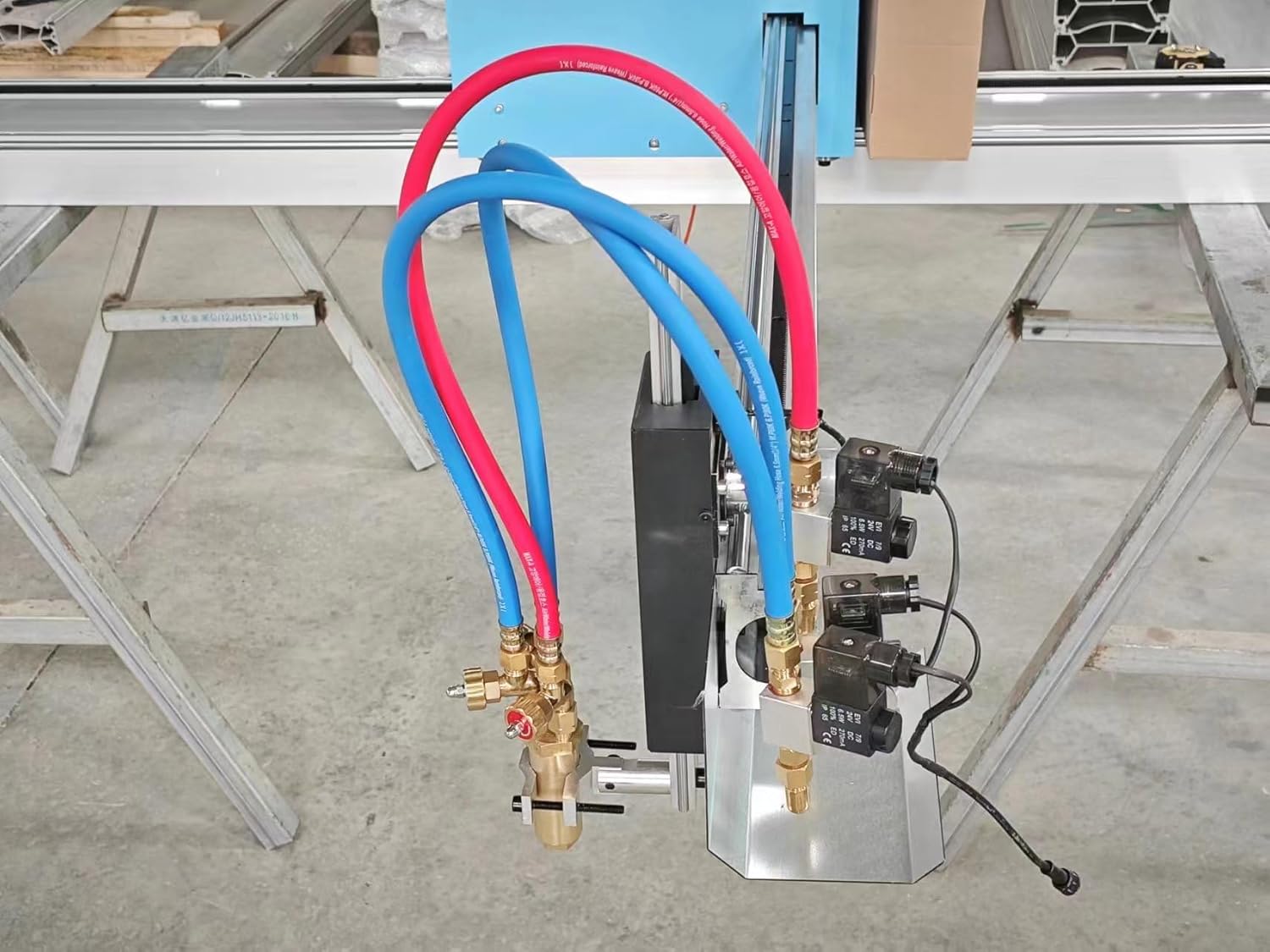

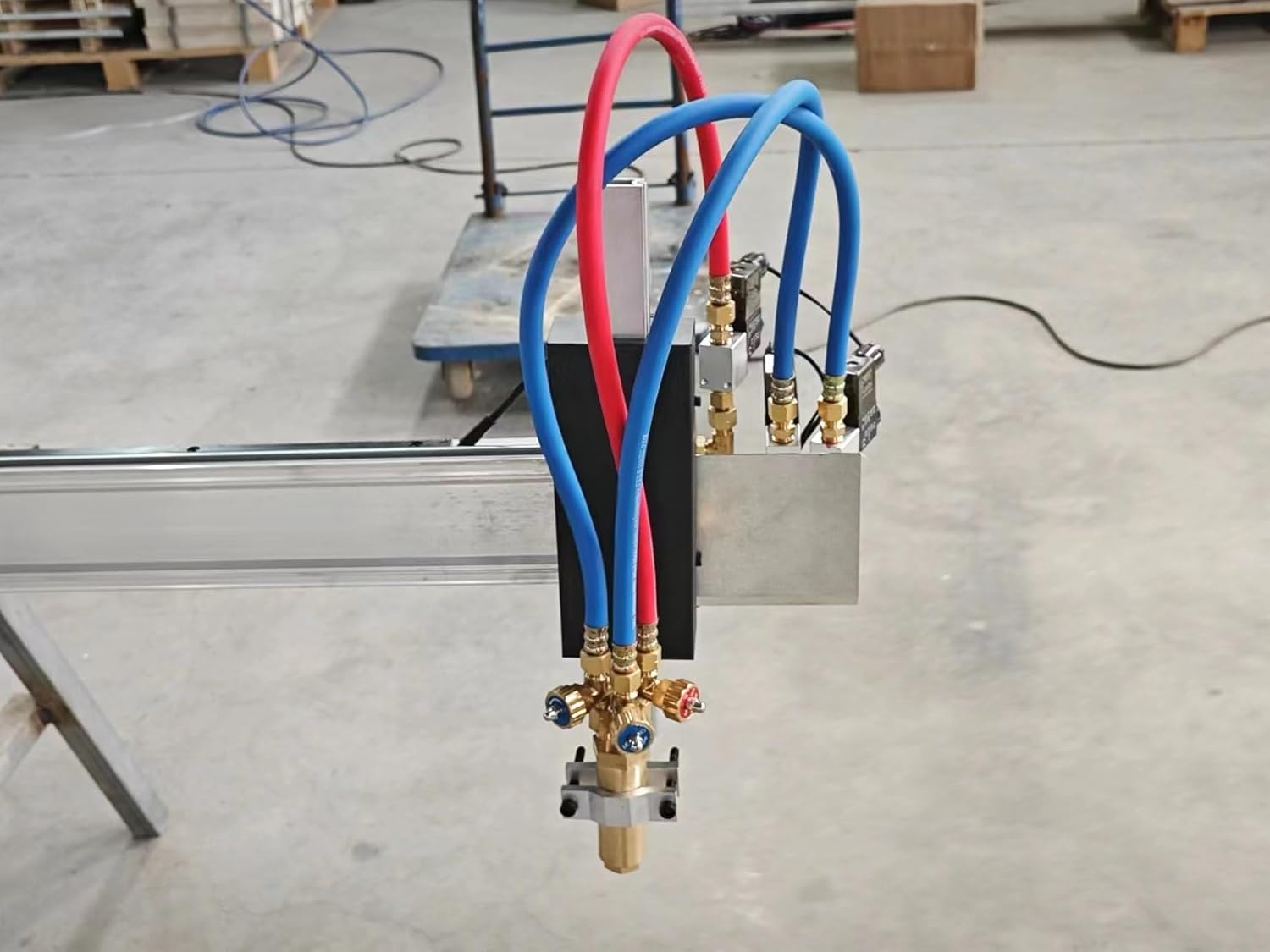

The flame cutting assembly.
StarCAM nesting software with USB key.
Item is not include plasma equipment and plasma torches.
Plasma THC including

Specifications:
Model: NL-1835
Working area: 1800x3500mm
Power voltage: 110/220V+/-15%, 50/60Hz
Guide rail width(X axis): 2.5M
Guide rail length(Y axis): 4.0M
Effective cutting width: 1.8M
Effective cutting length: 3.5M
Flame cutting thickness: 5 – 150 mm (0.3 – 5.9 inch)
Plasma cutting thickness: Matching plasma power supply
Moving precision: 0.01mm/step
Drive type: single-side
Max. speed: 4000 mm/min
Height distance: 0 – 70 mm (0 – 2.8 inch)
Relative humidity: 90%
Ambient temperature: 0 – 45 ℃ (32 – 113 ℉)
Plasma height control mode: THC
Flame height control mode: Electronic control button
Gas supply of plasma: Atmosphere
Gas supply of flame: Oxygen & LPG/Propane/Acetylene/Coal gas
