LAUNCH X-431 CNC-603C 6-Cylinder Fuel Injector Cleaning Machine with Exclusive Automatic Oil Discharge Function Automotive Ultrasonic Fuel Injection System Tester and Cleaner – 110V

Developed with the technology of ultrasonic cleaning and fuel pressure control, this equipment is an advanced electromechanical product, which can clean and test injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle.

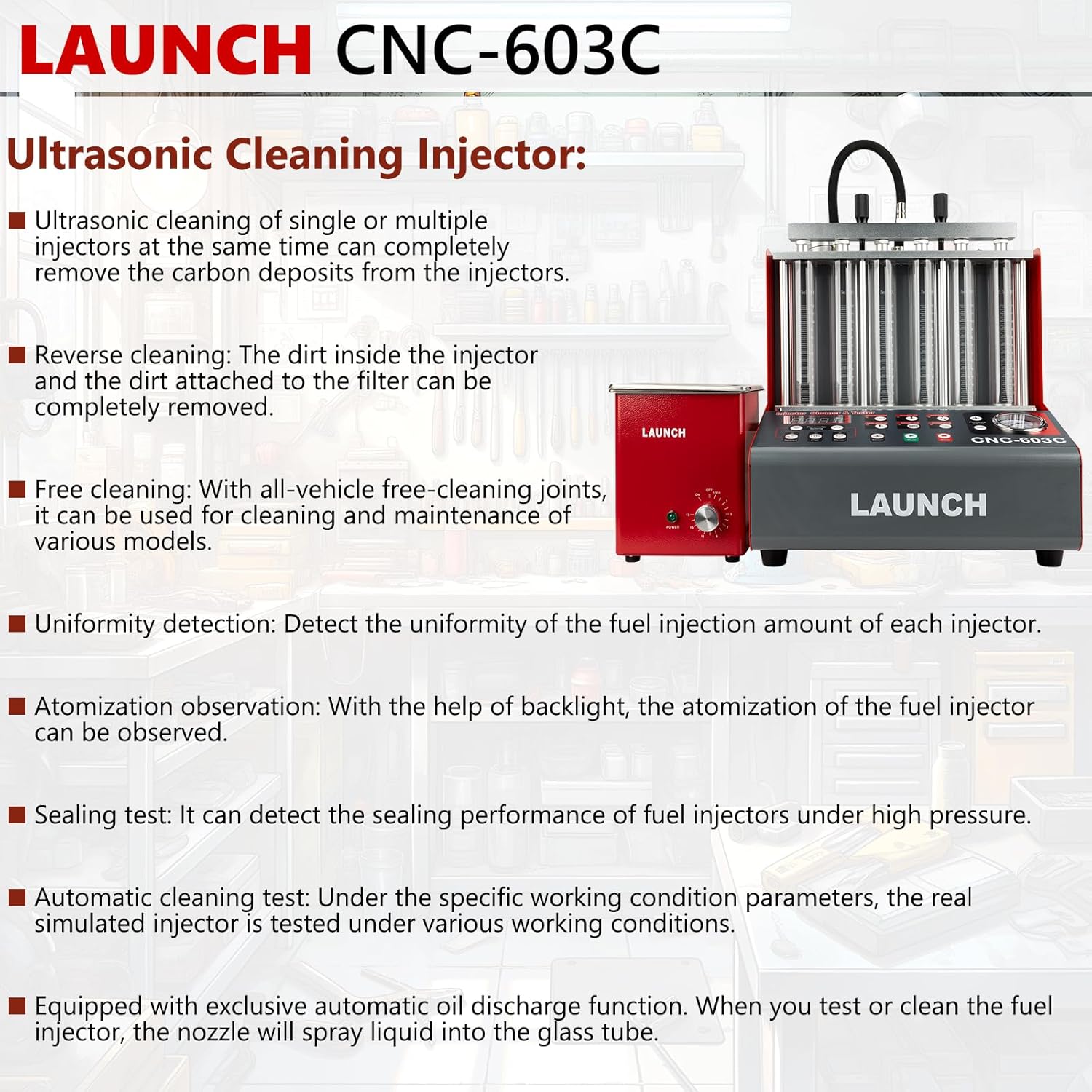

Ultrasonic Cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.

Uniformity/Sprayability Test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of back light. This test is also for reverse flush.

Leakage Test: To test the sealing and dribbling conditions of injectors under system pressure.

Injecting Flow Test: To check the injecting amount of the injector in 15 seconds of constant injection.

Automatic Test: To test injectors by simulating different working conditions.

On Vehicle Cleaning: The unit is equipped with various adaptors and couplers that faclitate cleaning on the injectors on vehicle.

Automatic Oil Discharge: When you test or clean the fuel injector, the nozzle will spray liquid into the glass tube. CNC603C will automatically discharge the liquid according to your settings when it reaches the predetermined value, while others need to be manually discharged.

Features:

1. Adopting the powerful ultrasonic cleaning technology, the equipment offers complete cleaning to the injectors.

2. Fuel pressure control through microcomputer ofers stable pressure control and large adjustable range, which is suitable for all EGl vehicles and can help to achieve automatic cleaning and testing of injectors.

3. With the help of microcomputer control and digital display, the equipment makes possible automatic cleaning, testing injectorsand real-time monitoring of the dynamic values.

4. Automatic fuel draining through preset programs for some test items. Test liquid/detergent can also be drained by pushing abutton on the control panel after the test.

5. Adopting humanization design can make the system pressure fast restored to the default values.
