Product description
Specifications:
Weight: 86g (0.18lb)

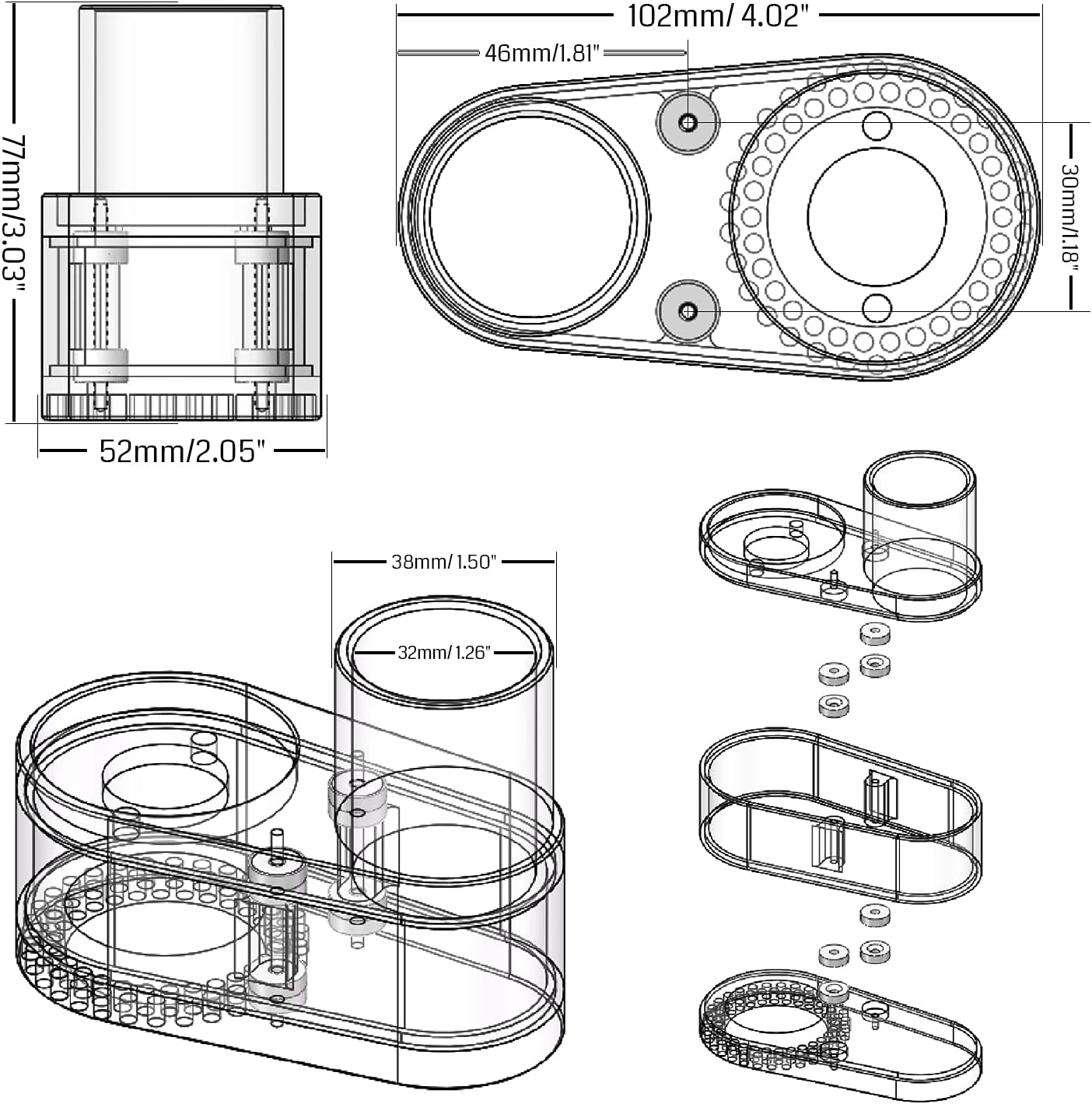

Vacuum Port Outer Diameter: 38mm/ 1.5”
Vacuum Port Inner Diameter: 32mm/1.26”
Compatible Machine: Genmitsu 4040-PRO, 3018-PRO, 3018-PROVer, 3018-MX3, 3018-PROVer Mach3, 1810-PRO and other generic 3018-PRO CNC Machines
Note: Ideally the tip of the bit should be mounted to be level with the bottom of the bristles when they are refitted. If the bristles is too long for your bits, we suggest that you could trim it off from the bottom according to the bits length, otherwise the bristles will be compressed against the top of the stock as it starts a cut.
Package List
- 1 x Dust Shoe
- 2 x Screws (M4 x 8)
- 1 x Wrench
- 1 x Manual

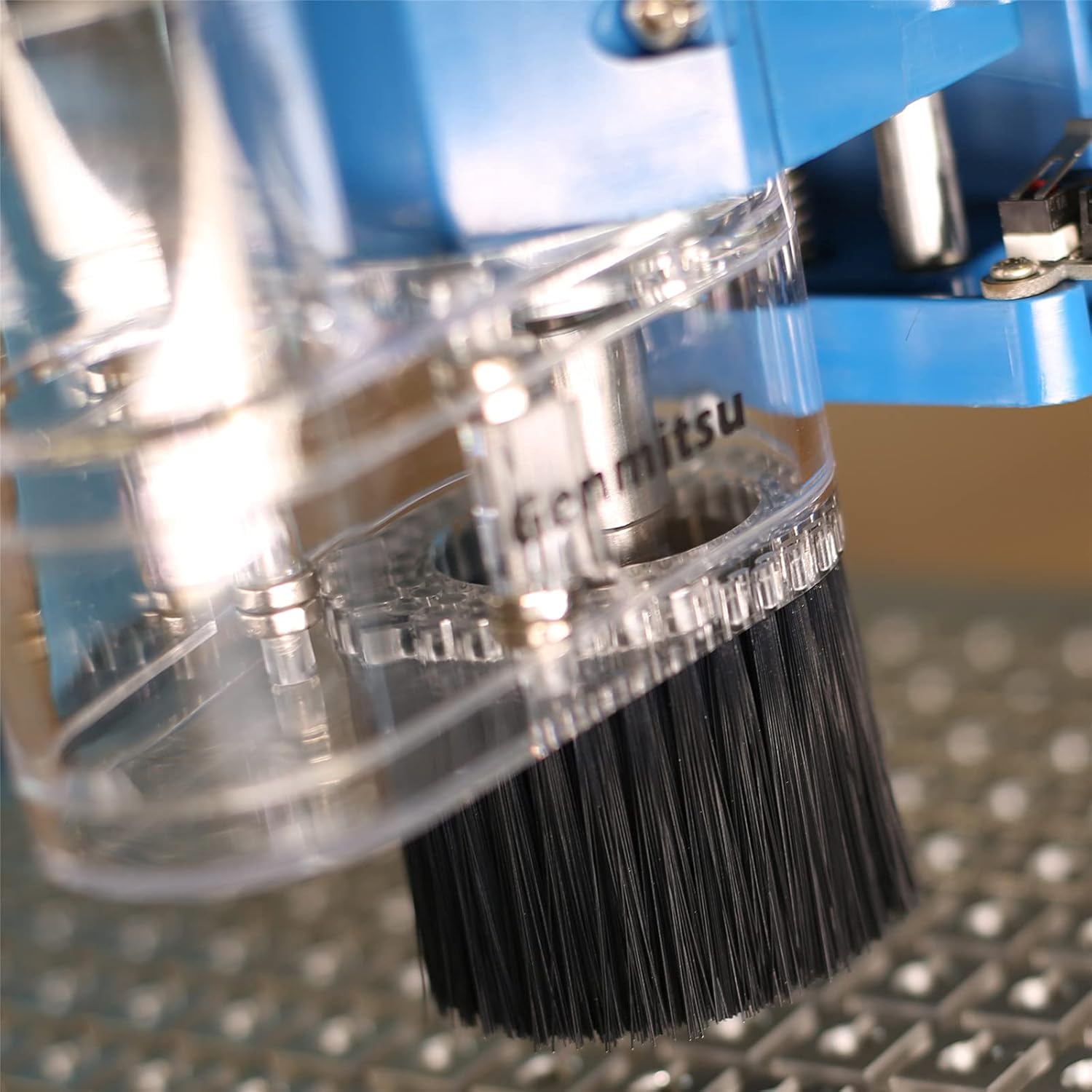

Enjoy a cleaner work area with our Genmitsu CNC Dust Shoe. This dust shoe is designed to be a high performing economical option for CNC routing.

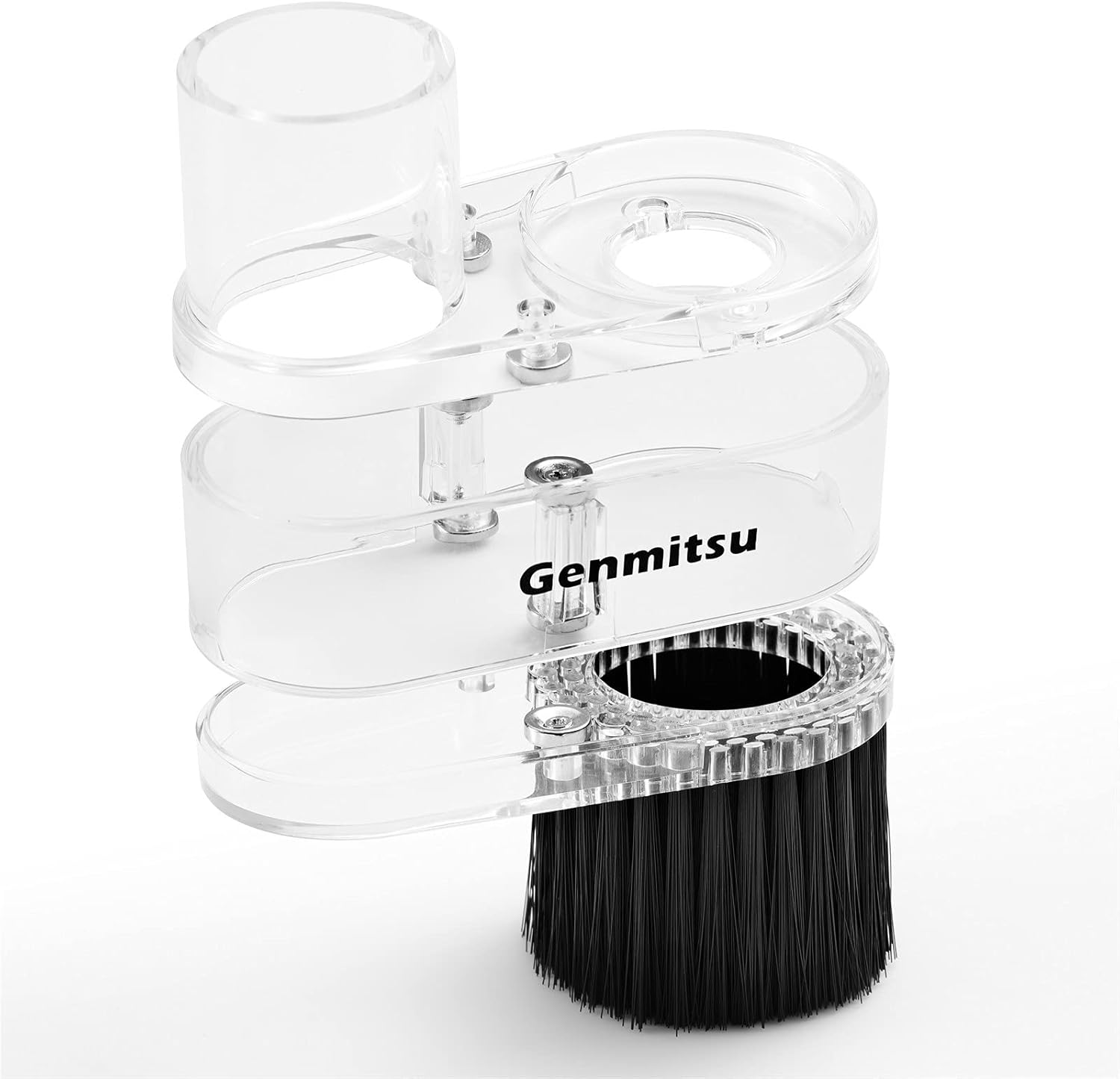

Made of high-quality transparent ABS. The transparent and split design helps you keep an eye on your operations and replace the bits easier.

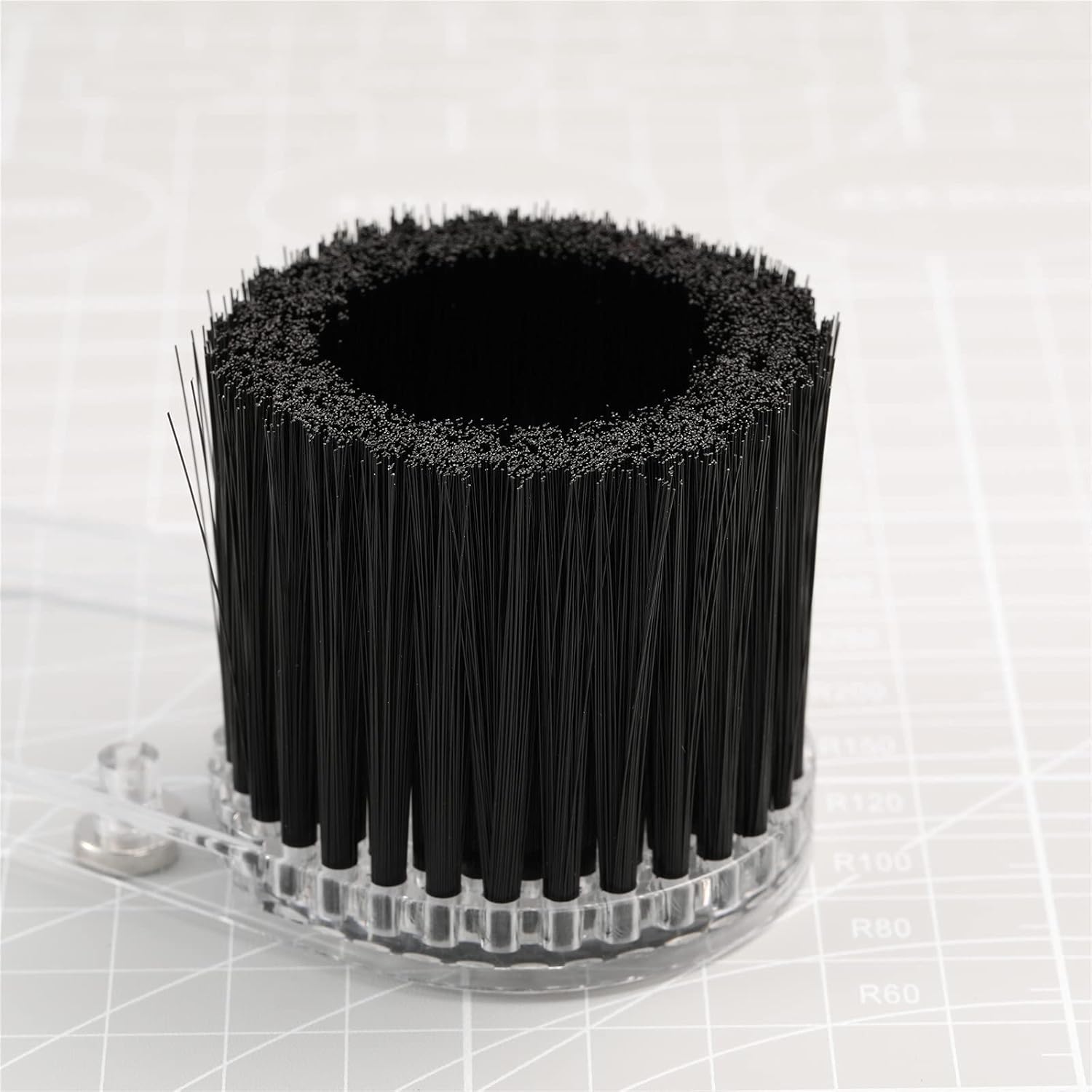

The planting 40mm long nylon brush is much tidy and firmer than other glued ones, it could maximize vacuum suction and help act as a dust sweep with high dust removal efficiency.
Easy Installation

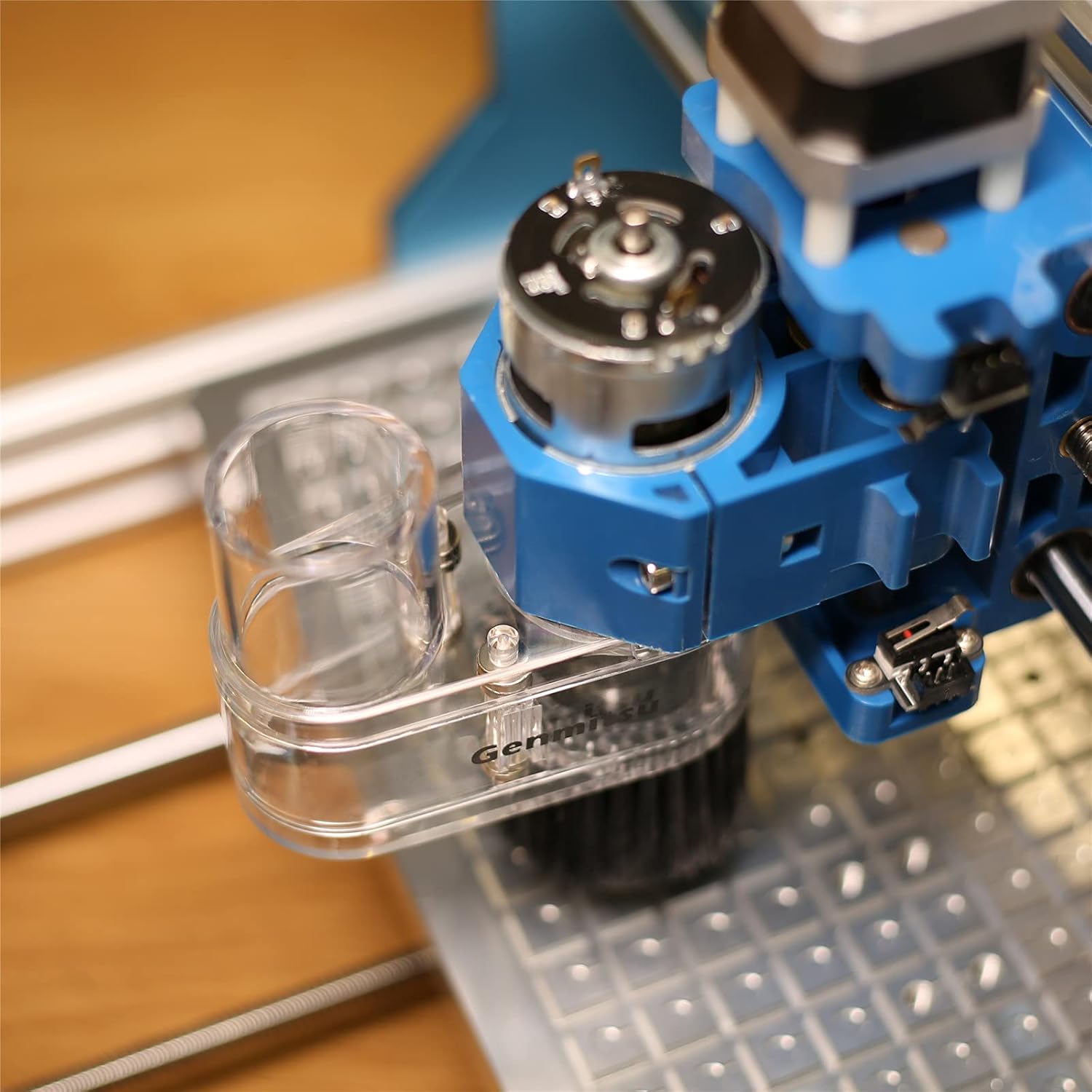

Install the Top Cover of the dust shoe on the spindle with 2 pieces of M4x8 screws.

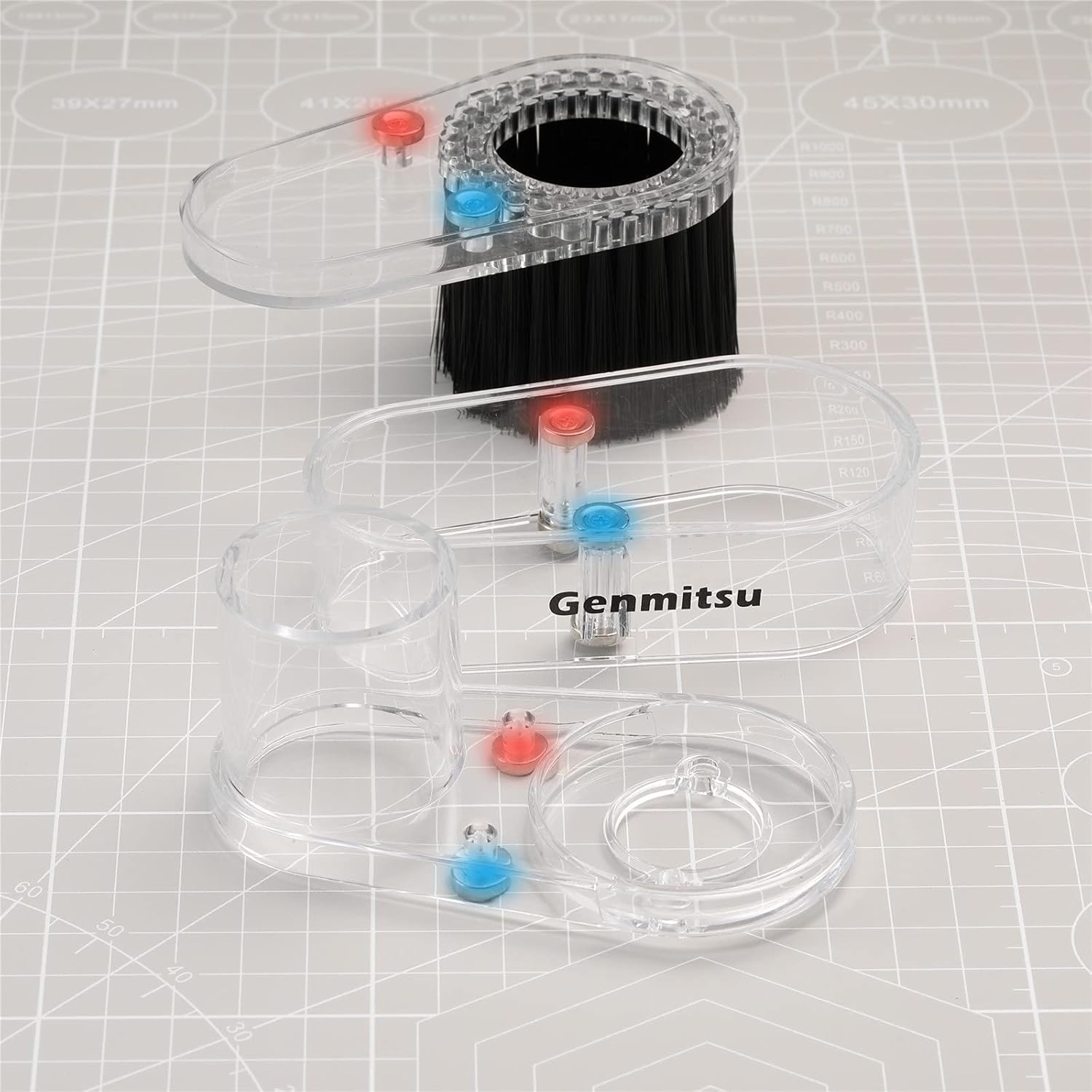

Align the magnets on the top of the Central Chamber with the magnets on the Top Cover. Then the Central Chamber will be attached to the Top Cover of the dust shoe.
Align the magnets on the Bottom Cover with the magnets in the Central Chamber. Then the Bottom Cover will be attached to the Central Chamber of the dust shoe.
Insert the vacuum cleaner tube with 32mm outer diameter into the tube connection of the dust shoe Top Cover
 Dust Shoe for 42mm Spindle
|

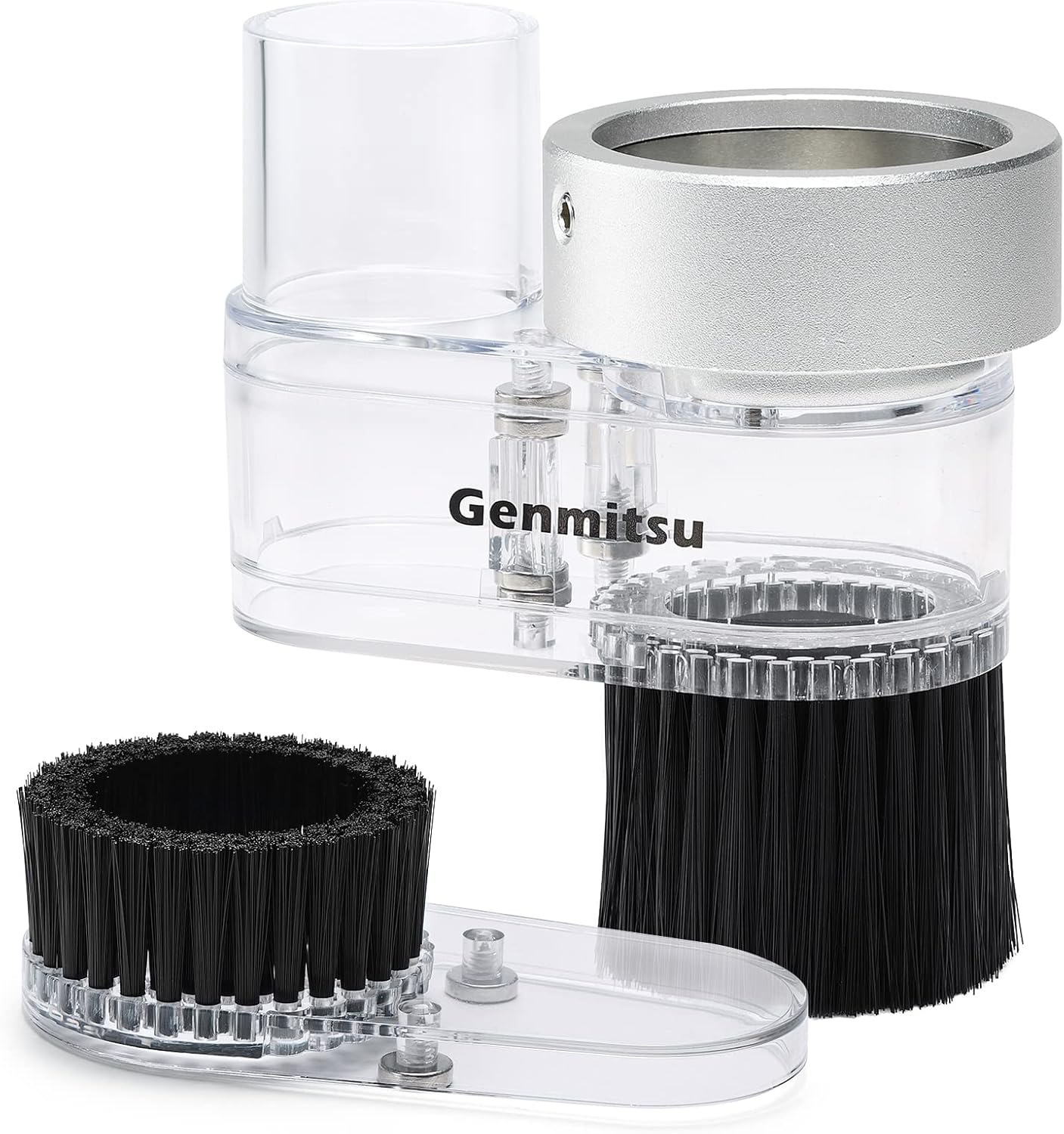

 Dust Shoe for 52mm Spindle
|
 Dust Shoe for 65mm/69mm Spindle
|
|
|---|---|---|---|
|
|
|
|
|
| Customer Reviews |
935
|
935
|
230
|
| Price | $24.99 | $34.99 | $48.99 |
| Spindle Diameter | 42mm (1.65") | 52mm (2.05") | 65mm (2.56")/69mm (2.72") |
| Material | ABS | ABS & Aluminum | ABS |
| Vacuum Port Inner Diameter | 32mm (1.26") | 32mm (1.26") | 32mm (1.26") |
| Vacuum Port Outer Diameter | 38mm (1.5") | 38mm (1.5") | 38mm (1.5") |
| Compatibility | 4040-PRO, 4040 Reno, 3018-PRO, 3018-PROVer, 3018-PROVer V2, 3018-PROVer Mach3, GS-775M Spindle, GS-775MR Spindle | 4040-PRO, 4040 Reno, PROVerXL 4030, PROVerXL 4030 V2, PROVerXL 6050 Plus, 3020-PRO MAX, 3020-PRO MAX V2, 3030-PROVer Max, Most 300W-500W Spindle Motors | 4040-PRO, 4040 Reno, PROVerXL 4030, PROVerXL 4030 V2, PROVerXL 6050 Plus, 3030-PROVer Max |
| With Replacement Bottom Cover | X | ✓ | X |
Be the first to review “Genmitsu CNC Dust Shoe ABS Cover Cleaner for 3018 Series CNC Router/CNC Machines with a 42mm Diameter Motor, Hose Adapter Outer Diameter 38mm (1.5u2033), Transparent”
