Product description
Safe & Stable

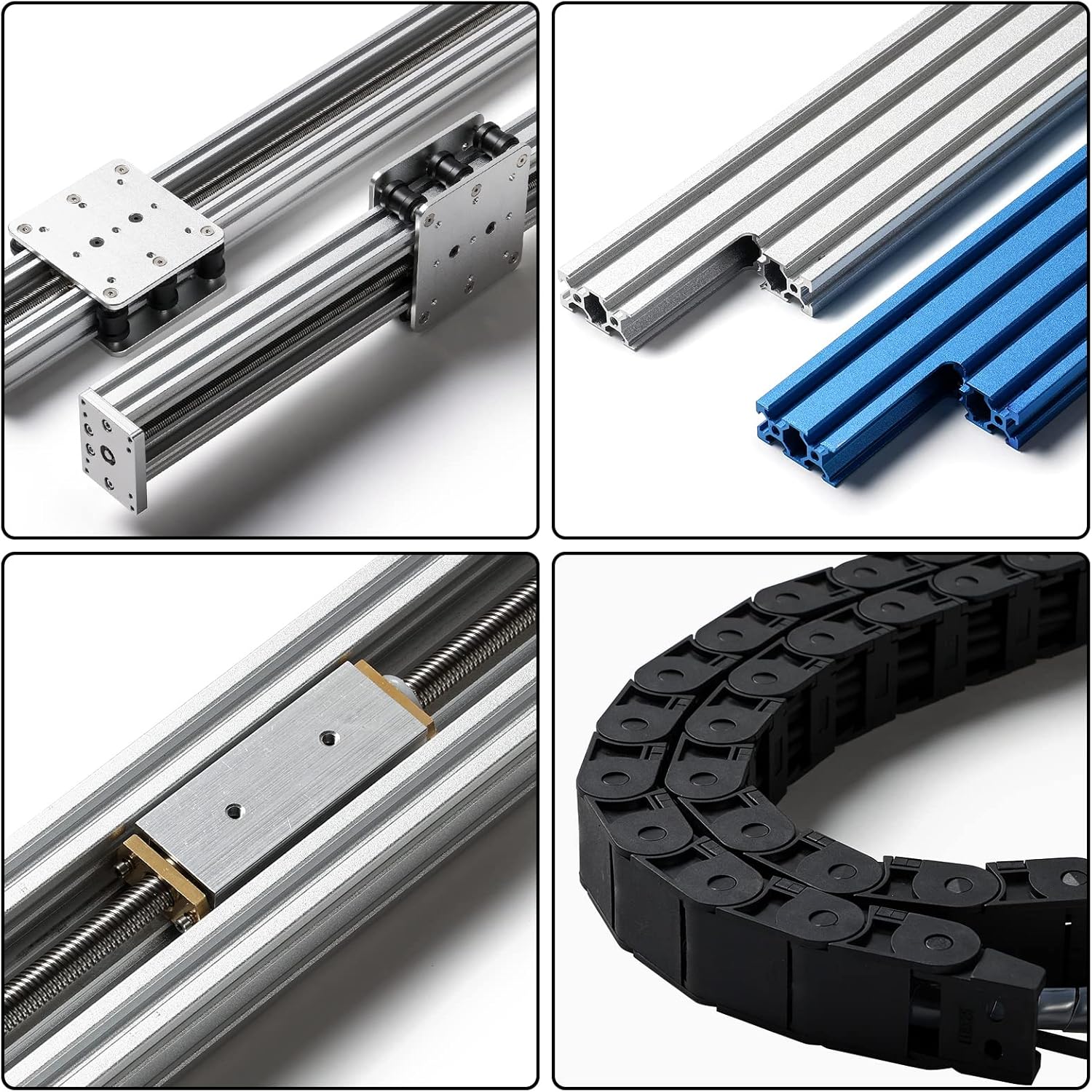

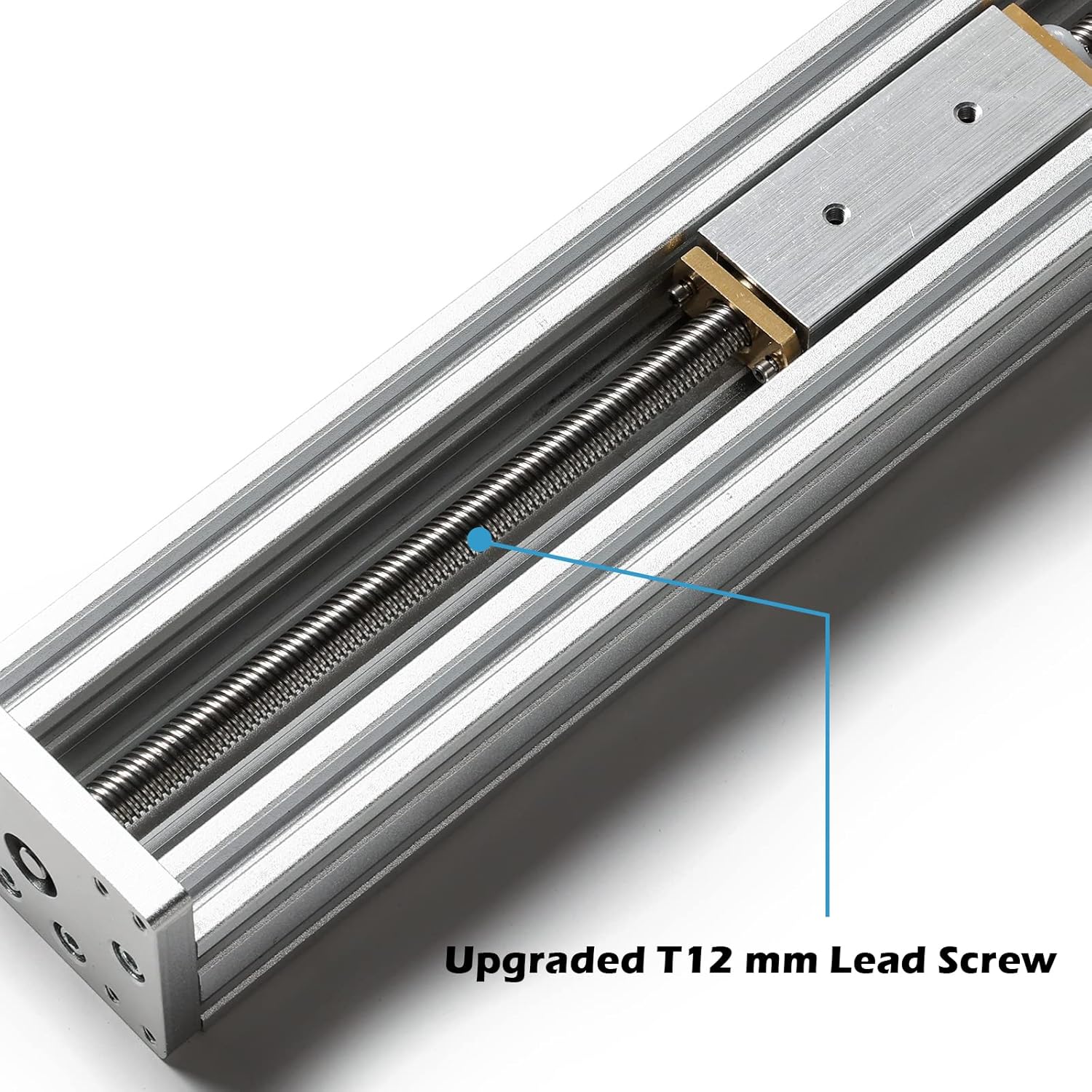

No cut corners for the XY-Axis extension kit. It is designed to be a direct upgrade to the PROVerXL 4030 using quality parts to match the original design, with upgraded lead screws to and aluminum extrusions for high stability.
Cost Effective
You don’t need to spend tons of money on a bigger machine. Save money by expanding your PROVerXL to suit your needs.. The kit includes all the parts needed to properly and safely upgrade your machine.
Easy Installation
For an easier setup, the kit comes with a new drag chain and cable harness. You don’t need to make your own wiring extensions. Our installation guide will take you step by step to finish installation. (we will keep upgrade the online guide at the Product Guides and Documents Section Below)

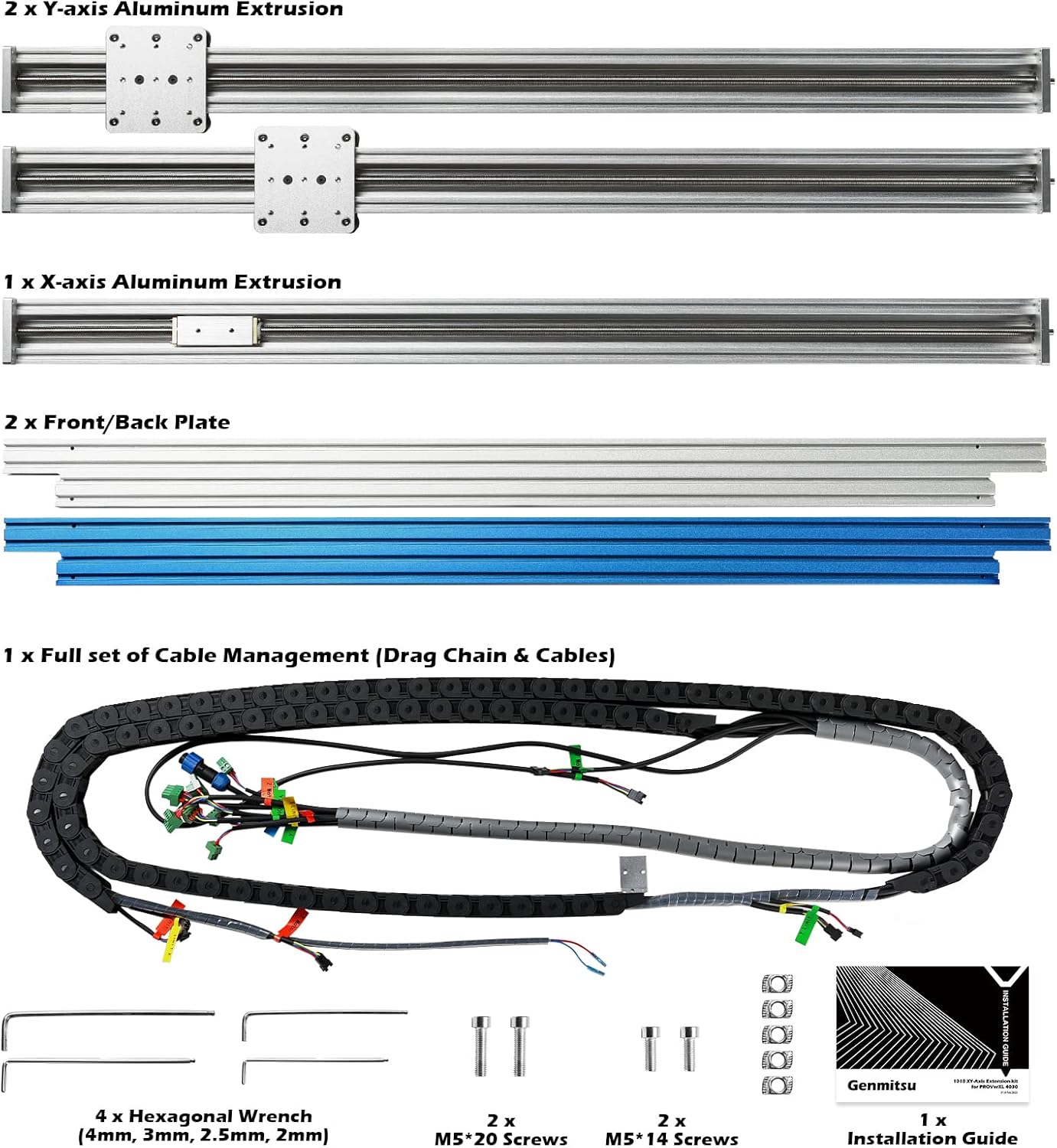

Package list
- 2 x Y-axis Aluminum Extrusion
- 2 x X-axis Aluminum Extrusion
- 2 x Front/Back Plate

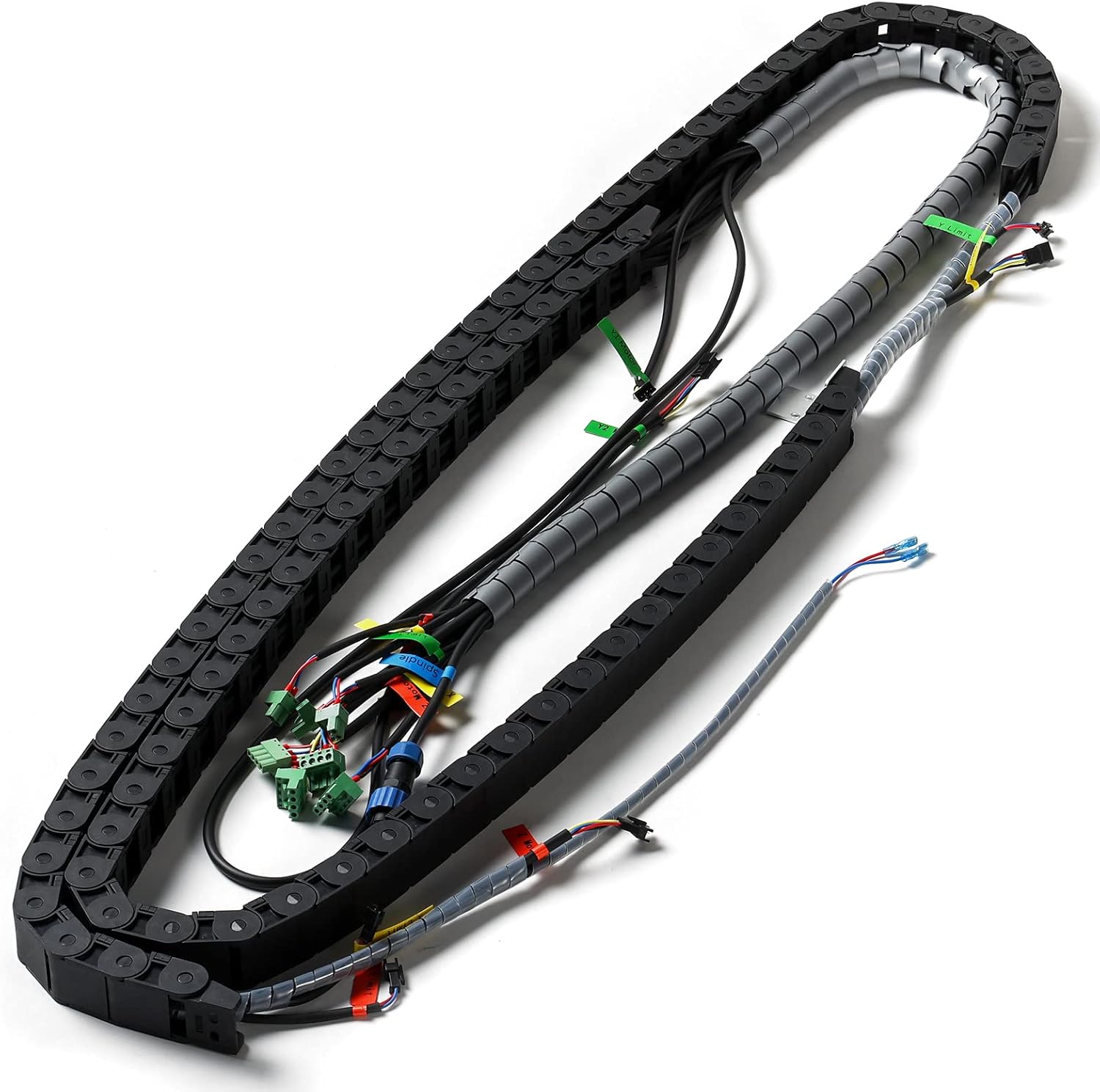

- 1 x Full set of Cable Management (Drag Chain & Cables)
- 4 x Hexagonal Wrench (4mm, 3mm, 2.5mm, 2mm)
- 2 x M5*20 Screws
- 2 x M5*14 Screws
- 1 x Installation Guide

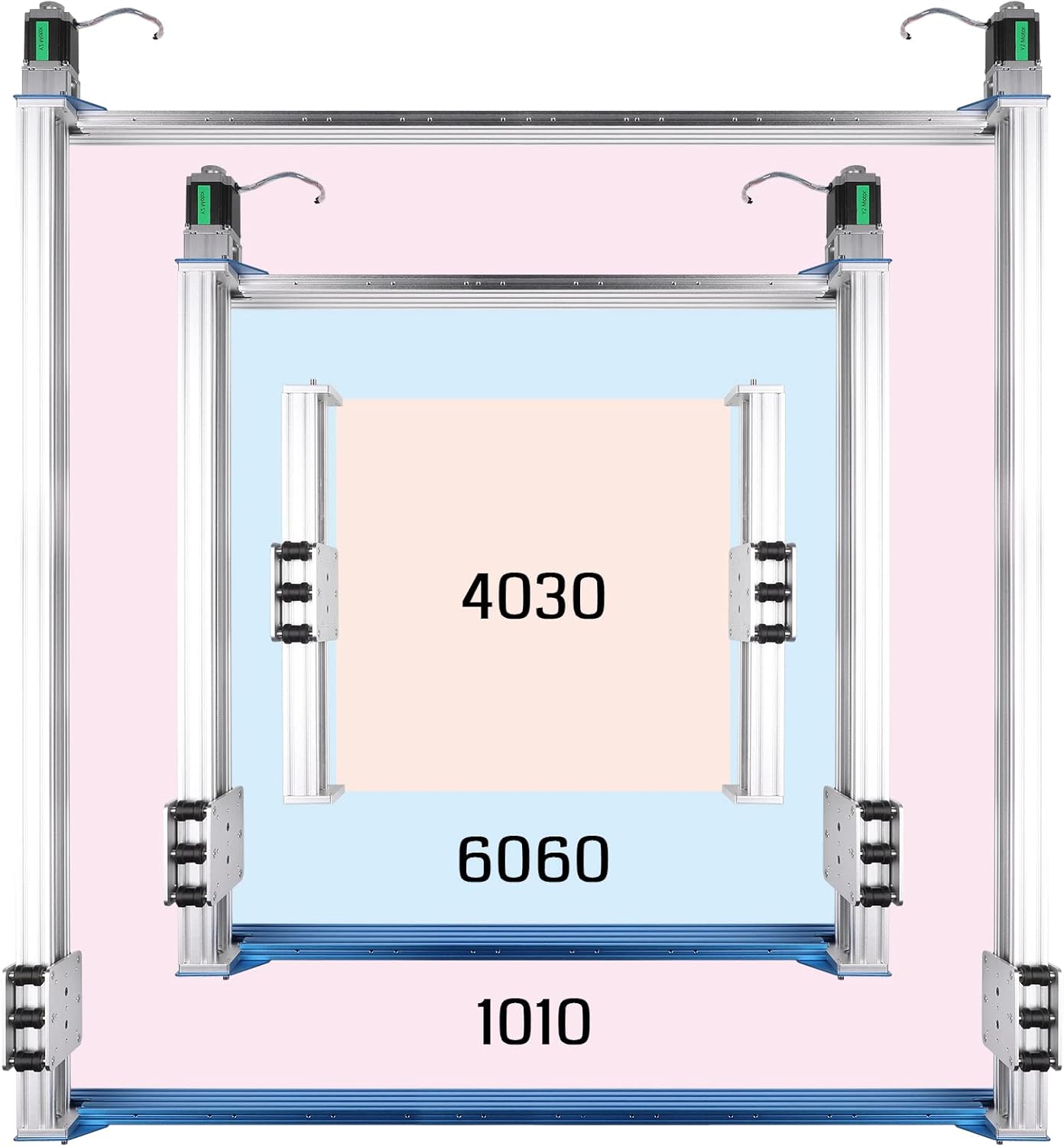

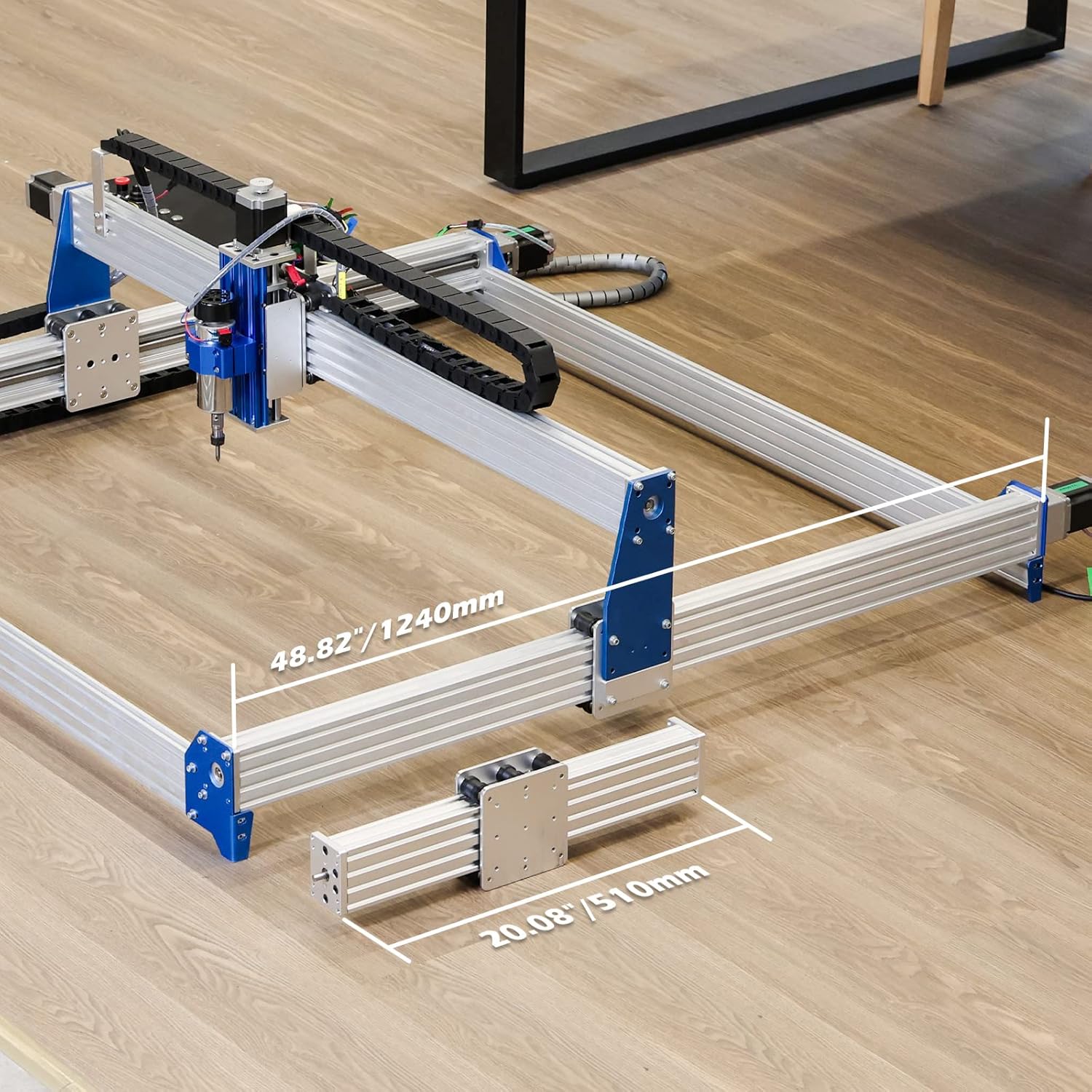

Dimension After Installation:
Working Area of PROVerXL 4030: 15.75" x 11.81" x 4.33" (400mm x 300mm x 110mm)
Working Area after 6060 Upgrade: 24.37” x 25.86” x 4.33” (619mm x 657mm x 110mm)
Working Area after 1010 Upgrade: 39.37“ x 40.16” x 4.33” ( 1000mm x 1020mm x 110mm)

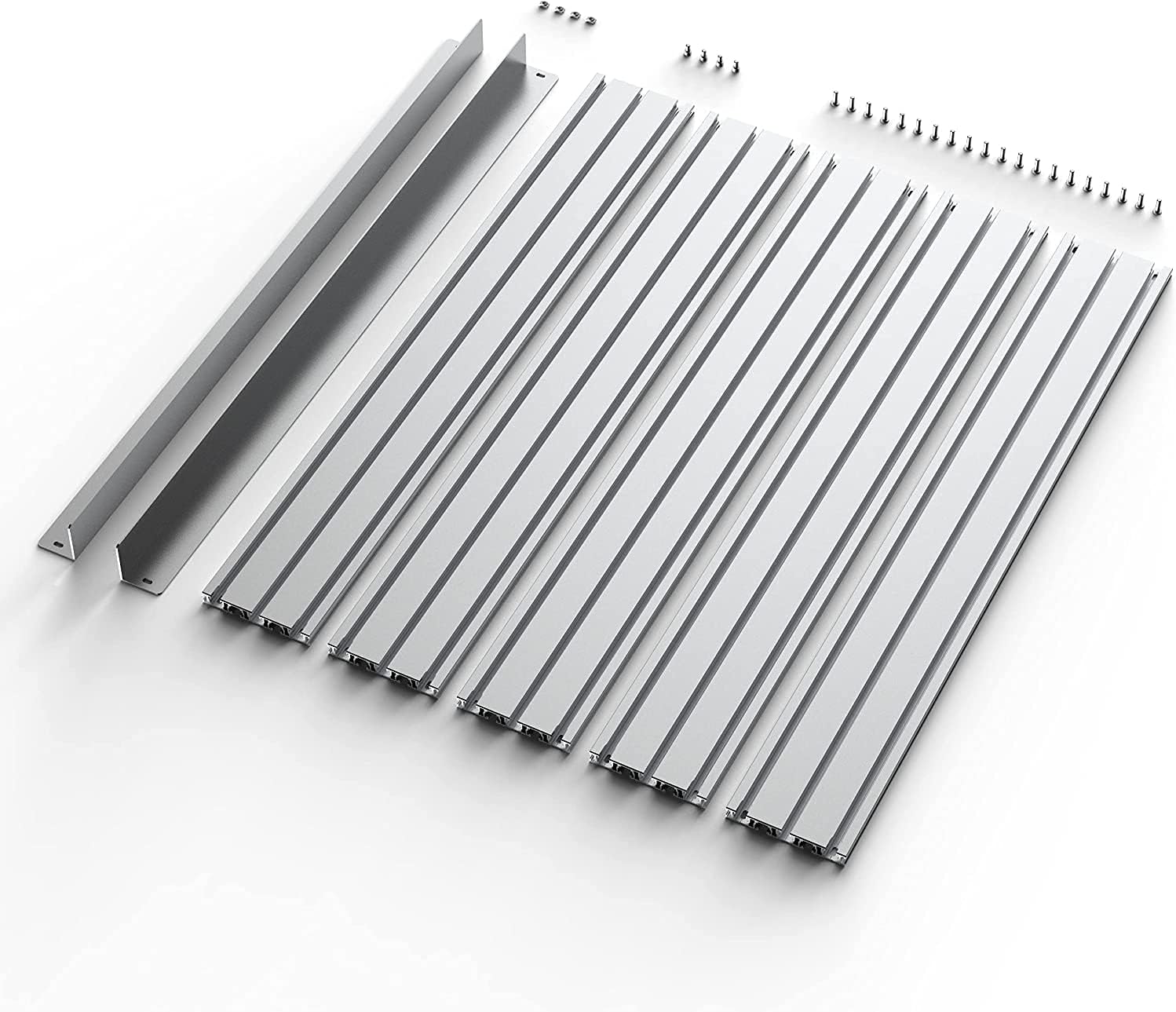

 1010 Aluminum & MDF Hybrid Spoilboard
|
