DYNAMI 2200W 6090 CNC Router Machine with Controller,4 Axis Milling Cutting Engraving Machine,Aluminum Alloy Frame,Large Working Area 41x 28in,for Metal Acrylic PCB Wood Jade Carving(2.2KW 6090)

---

About this item

• Build to Last: It adopts a high-quality aluminum alloy frame, and the surface is treated with powder spraying technology, which can resist wear for a long time. The gantry structure design ensures good rigidity and strong stability of the equipment.

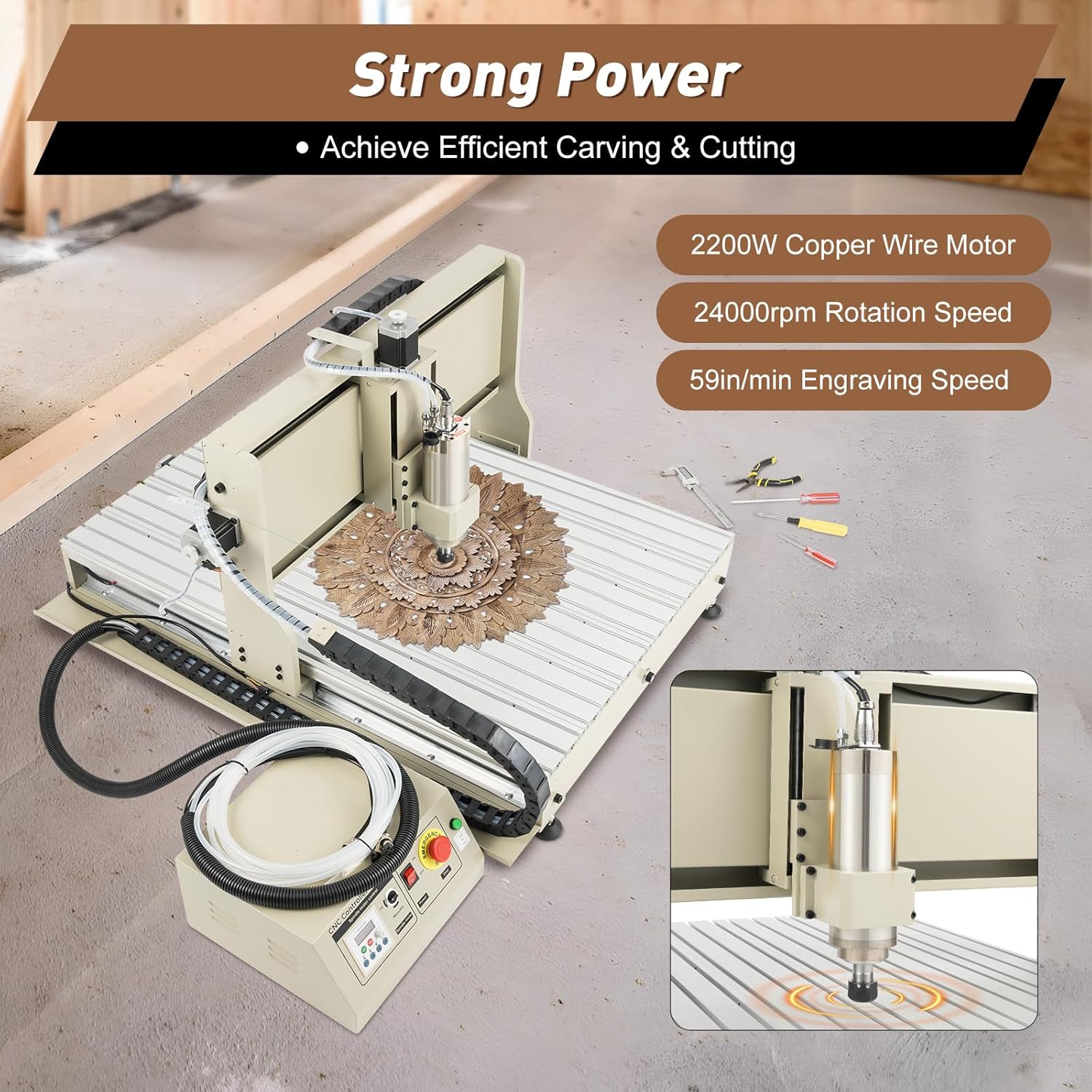

• Strong Power: A powerful 2200W copper wire motor with a speed of up to 24,000rpm and an engraving speed of 59inch/min can achieve efficient carving and cutting, and improve work efficiency.

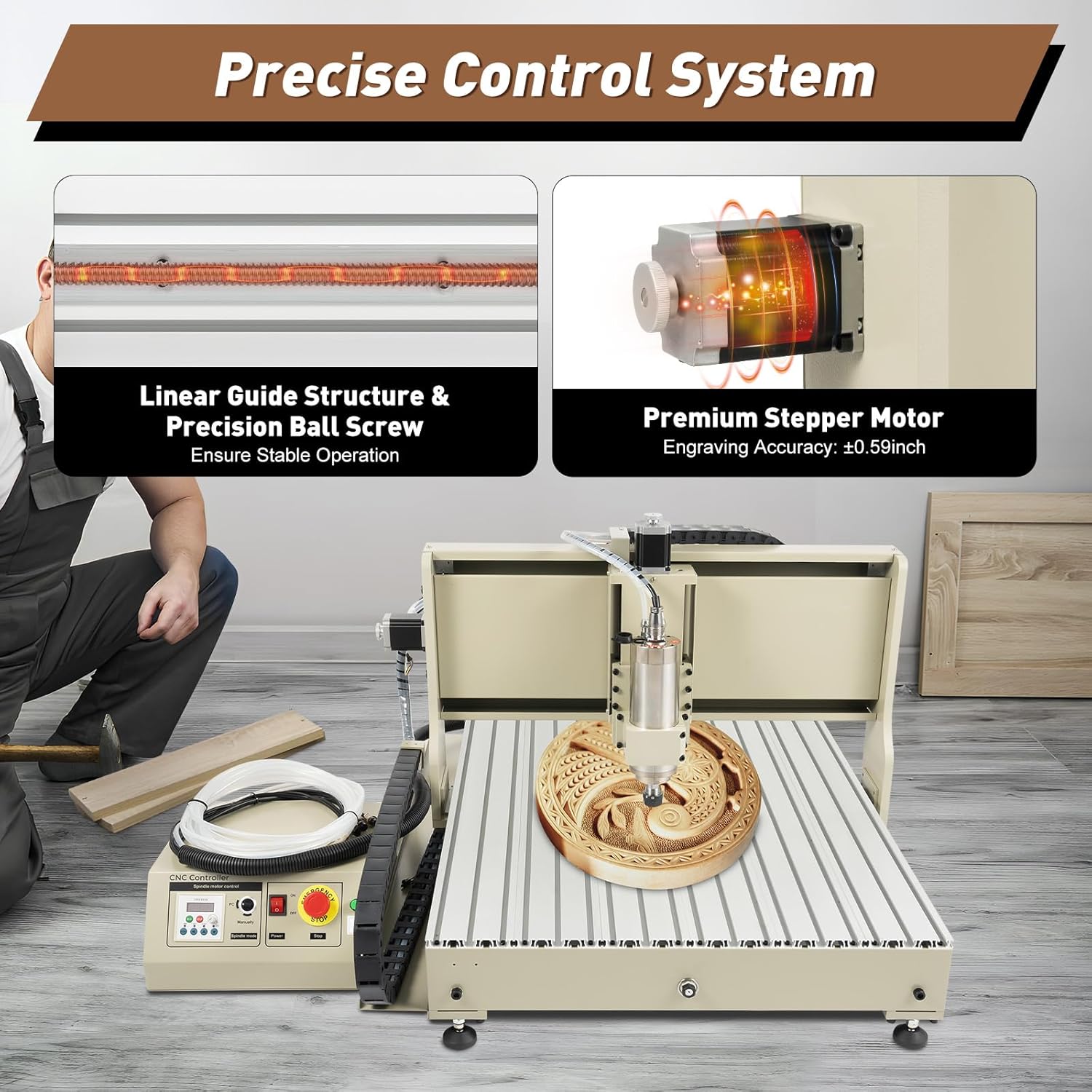

• Precise Control System: It adopts a linear guide structure and precision ball screw to ensure stable operation of the equipment. The premium stepper motor can achieve precise position control and accurate speed control, making its engraving accuracy as high as ±0.59inch.

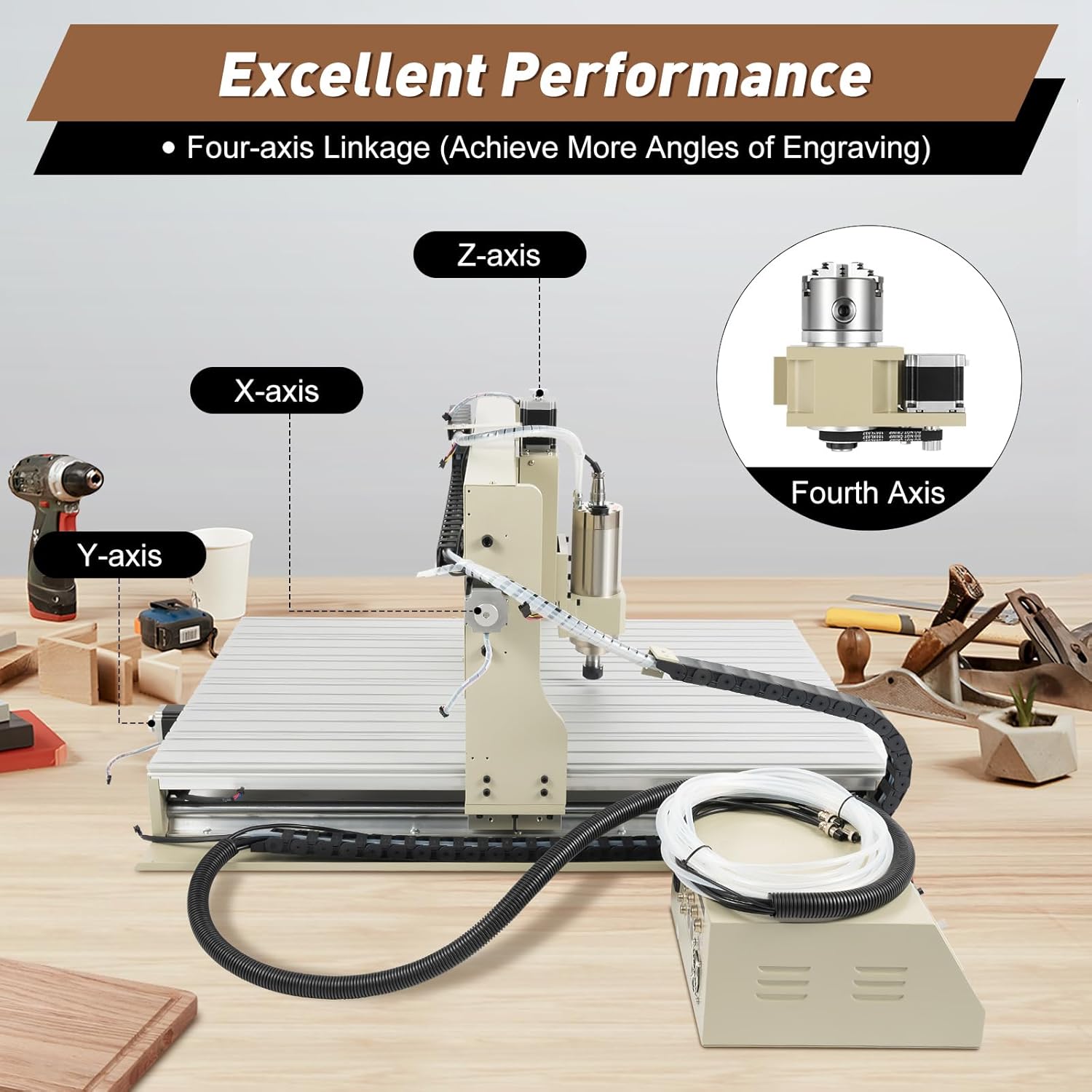

• Excellent Performance: Compared with the traditional three-axis, this engraving machine adds a fourth axis, which can realize four-axis linkage for multi-angle and curved surface cutting and engraving operations, so that you can complete the manufacture of highly demanding products.
• High Safety: An emergency stop button is provided on the control box to ensure your safe operation. The cooling fan and water cooling system can maximize the protection of the motor and achieve stable operation.
• Large Workbench: The large working area (41.14*28.35inch) can meet the needs of placing workpieces of different sizes and shapes. Its maximum applicable thickness is 5.12 inches, which can be flexibly adapted to the processing of materials of different thicknesses to meet the needs of high-quality design and manufacturing.

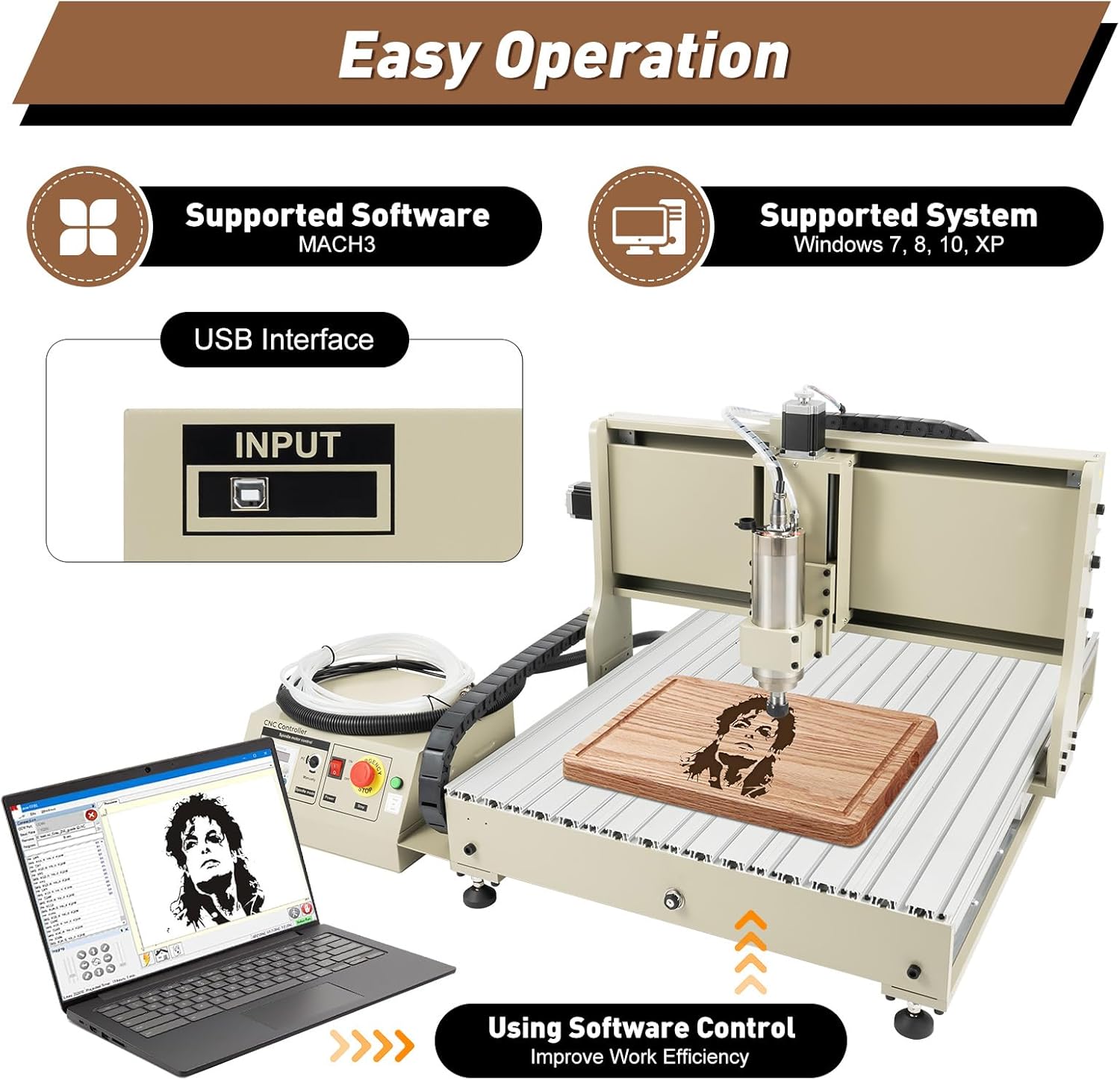

• Easy Operation: It is operated by control software on the computer, which simplifies the operation process, effectively reduces the skill requirements for operators, and improves work efficiency. Moreover, the high-quality control box also brings more convenience to your operation.
• Application: It is widely used in industrial technology, advertising design, the art field, educational courses, architectural models, and so on. Moreover, it is not only limited to wood relief, three-dimensional carving, jade relief, lettering carving, aluminum alloy carving, etc., but also can carry out some of the material cutting, punching, and grooving operations.

Description

With its unique gantry design, advanced control system, and a full range of user-friendly features, this engraving machine achieves high efficiency, precision, and versatility. The powerful hardware configuration and high-power copper wire motor effectively improve work efficiency and carving accuracy. It is exquisitely crafted and has broad application value in industrial production and personalized customization.

Details

Large Foot Pads: It is equipped with anti-slip foot pads at the bottom, which can improve the stability of the machine and prevent tipping.

Power Cord: A 6ft long power cord can provide more usage positions and keep you away from the power source, making it safer to use.

Drag Chain: It can effectively protect the cables and wires inside the equipment to avoid wear and tear when the machine is running at high speed. Moreover, it can also arrange pipelines in an orderly manner, reducing safety hazards caused by staggered routes.

Specification

Martial: Aluminum Alloy

Process: Powder Spraying

Control Mode: Computer

Support Software: M-A-C-H-3

Applicable Computer System: Windows7, 8, 10, XP

Motor Type: Water-cooled

Voltage: 110V

Power: 2200W

Rotation Speed: 24000rpm

Engraving Speed: 1500mm/min / 59inch/min

Max. Thickness: 130mm/5.12inch

Precision: ±0.15mm/±0.59inch

Workbench Size(L*W): 104.5*72cm/41.14*28.35inch

Working Stroke: 90*60cm/35.43*23.62inch

Power Cord Length: 1.83m/6ft

Product Size: 115*85.5*64.5cm/45.28*33.66*25.4inch

Control Box Size: 33*32*17cm/13*12.6*6.69inch

Control Box Package Size: 56.5*38.5*24.5cm/22.24*15.16*9.65inch

Control Box Gross Weight: 14.9kg/32.85lbs

Control Box Net Weight: 13.8kg/30.42lbs

Base Package Size: 117*83*21cm/46.06*32.68*8.27inch

Base Gross Weight: 53.55kg/118.06lbs

Base Net Weright: 48.8kg/107.6lbs

Gantry Package Size: 96*34*62cm/37.8*13.39*24.41inch

Gantry Gross Weight: 41.65kg/91.82lbs

Gantry Net Weight: 37.95kg/83.67lbs

Package Included

1* Engraving Machine

1* CNC Controller

1* A Axis

1* Power Cord

Other Accessories for Installation
