DNC PRO, DNC RS232 for cnc machines

About this item

• DNC PRO is a device used to replace the method of data transmission by computer via RS232 port

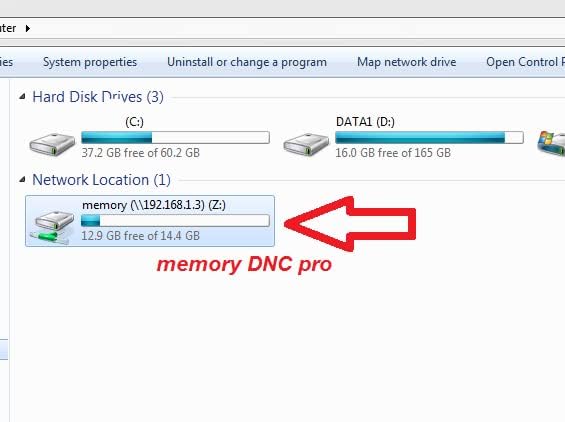

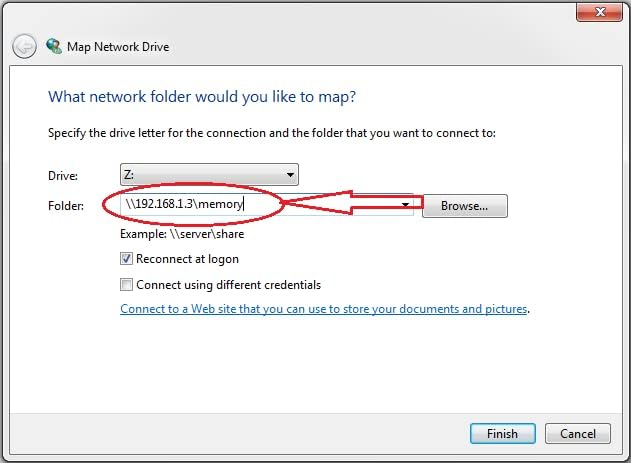

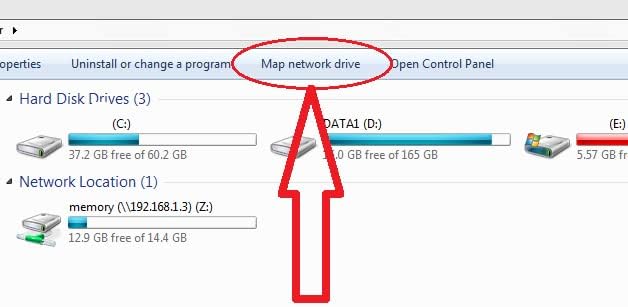

• DNC PRO, DNC USB for cnc Machines, wired LAN connection (RJ45 port) and wireless (wifi network) with the drive mapping tool on your computer

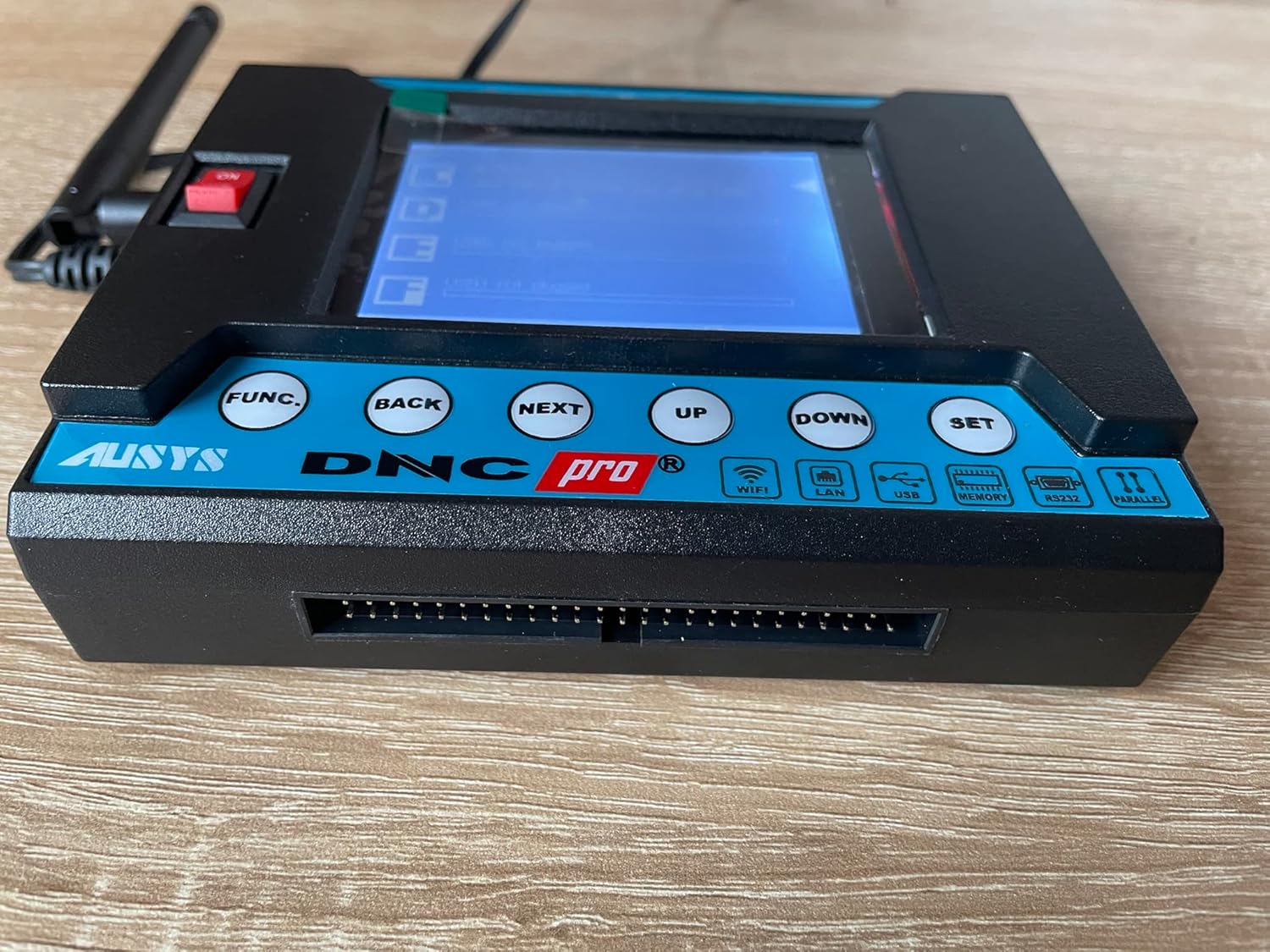

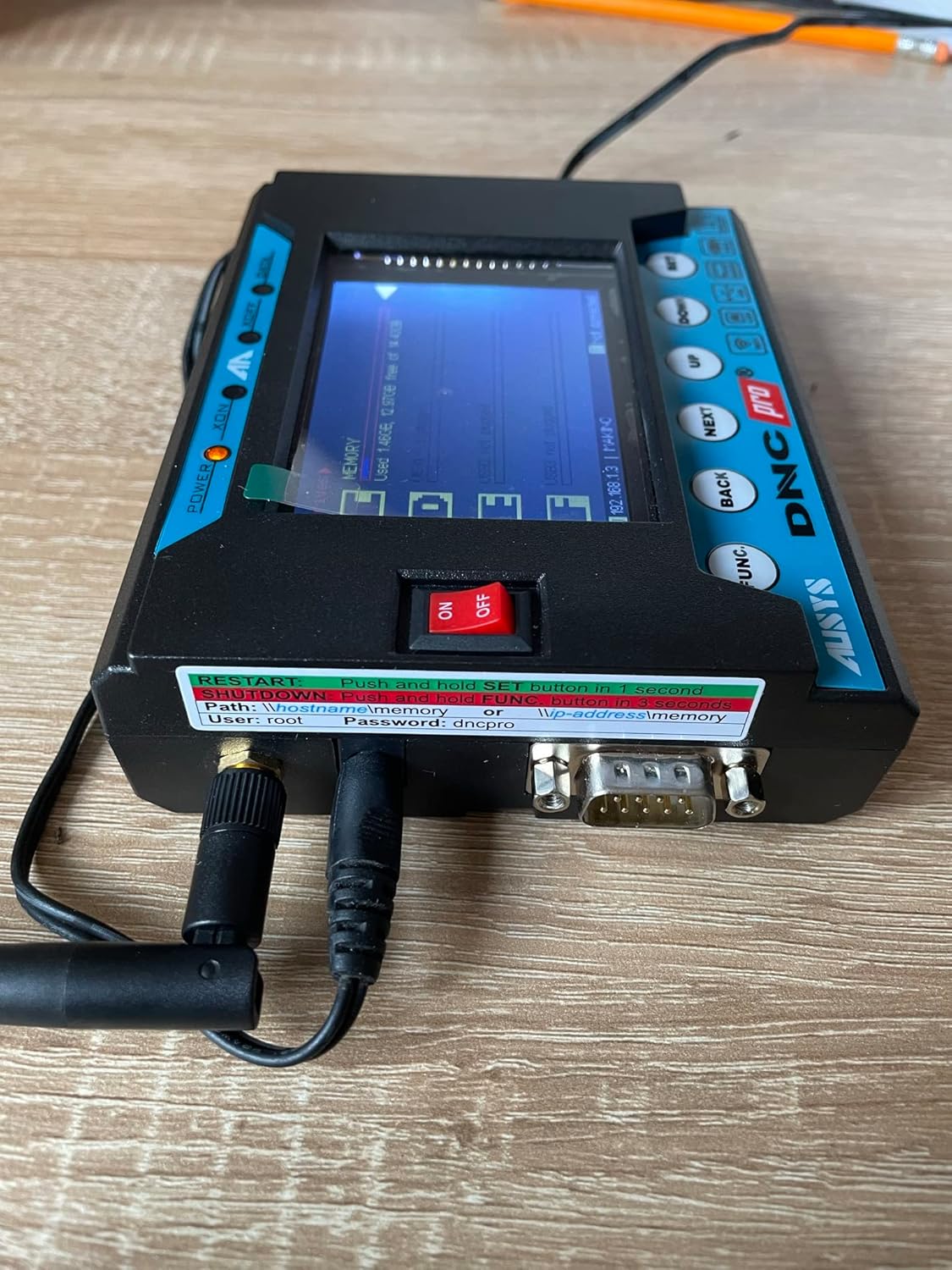

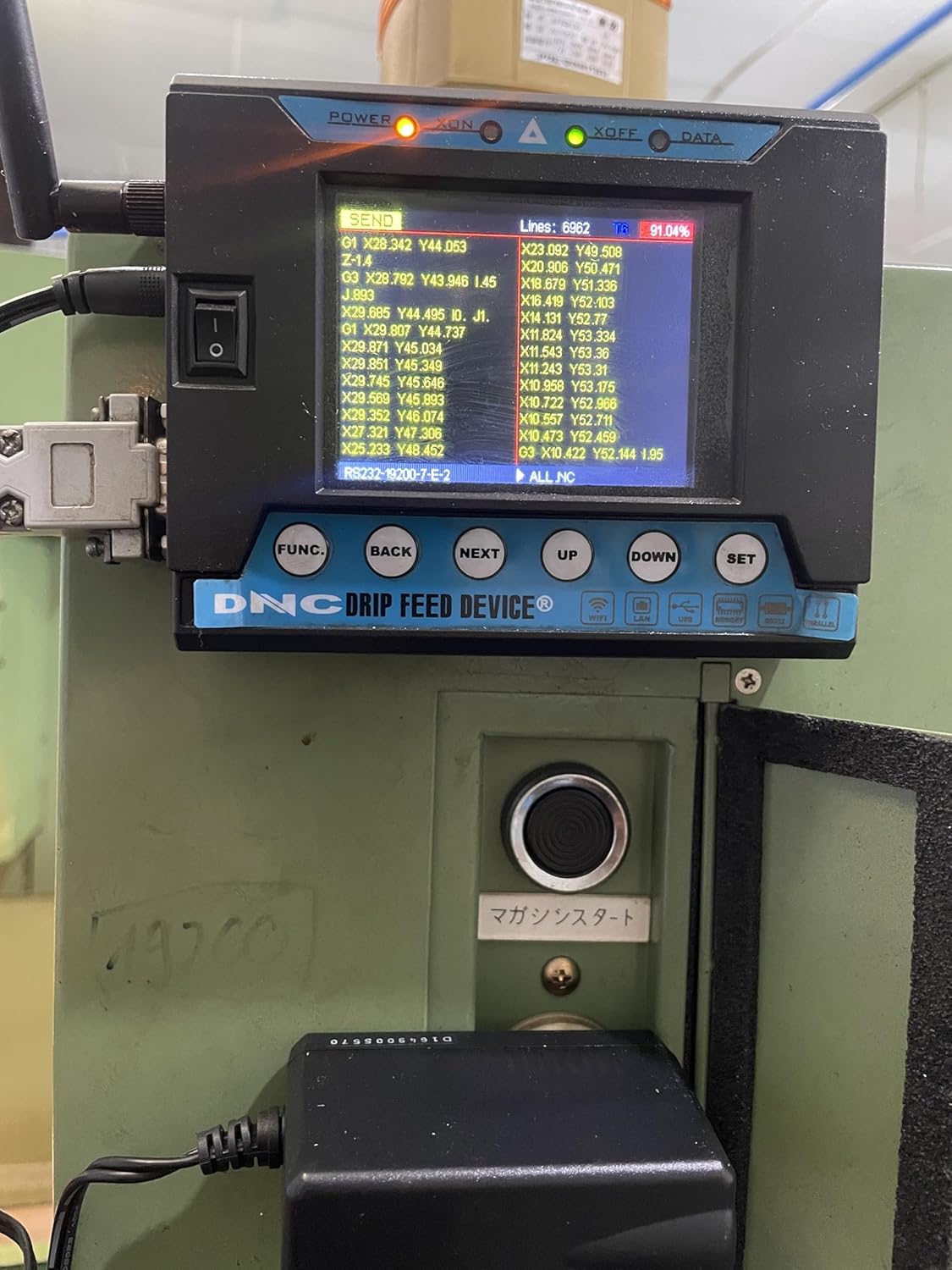

This is a Portable Program Transfer Device that transfers CNC machine programs from a standard USB flash drive (Thumb Drive, Pen Drive, memory stick…) to or from the CNC control through the RS232 communications port, also referred to as Drip feed DNC or Up-Loading & Down-Loading. Extension of file name supports: *.?NC, *.TXT,*.NC, *tap -DNC PRO, DNC USB for cnc Machines, wired LAN connection (RJ45 port) and wireless (wifi network) with the drive mapping tool on your computer · 04 magnet nuts to mounting on CNC machine · 06 Buttons:FUNC, NEXT, BACK, SET, UP, DOWN · Function: COPY-PASTE, CUT-PASTE, RENAME, DELETE, Make NEW FOLDER: easy management files & folders on USB flash drive and internal MEMORY. · Function AUTO CUTTING: it can cutting by Percent or Line Number. We can see program content after cutting. · Function SEND – Send program to CNC machine, monitoring program content when sending · Function FORCED SEND – Forced transfer a program to CNC machines without the required signal from CNC machines (Skip XON) Flow Control – SOFTWARE (Xon,Xoff) – HARDWARE (RTS,CTS) · Function RECEIVE – Receive program / parameter from CNC machine. · USB/MEMORY capacity monitoring; Format USB flash drive, etc. Note: the device is a built-in computer, they will take 45 seconds to boot up and about 30 seconds to shut down.
