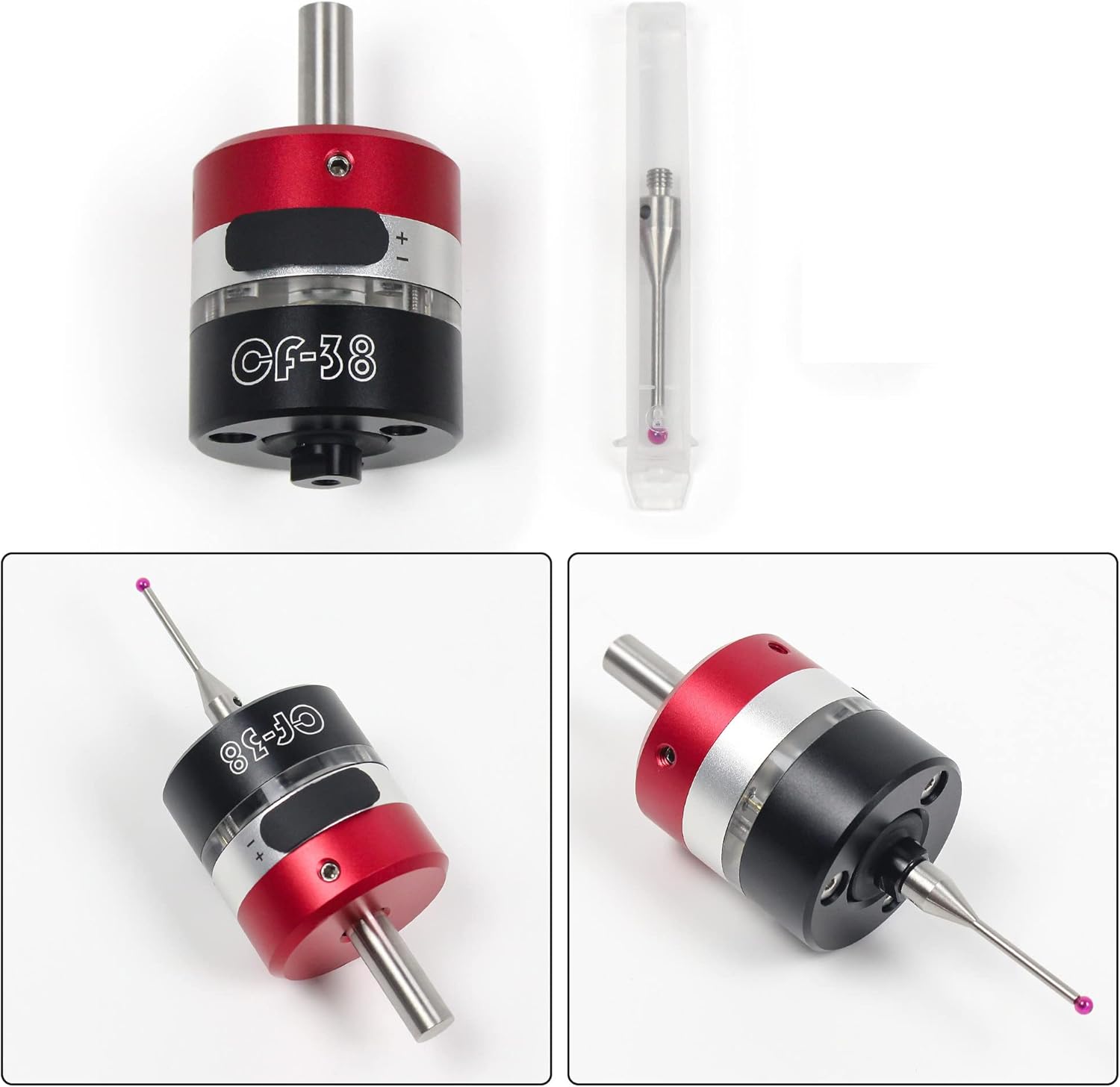

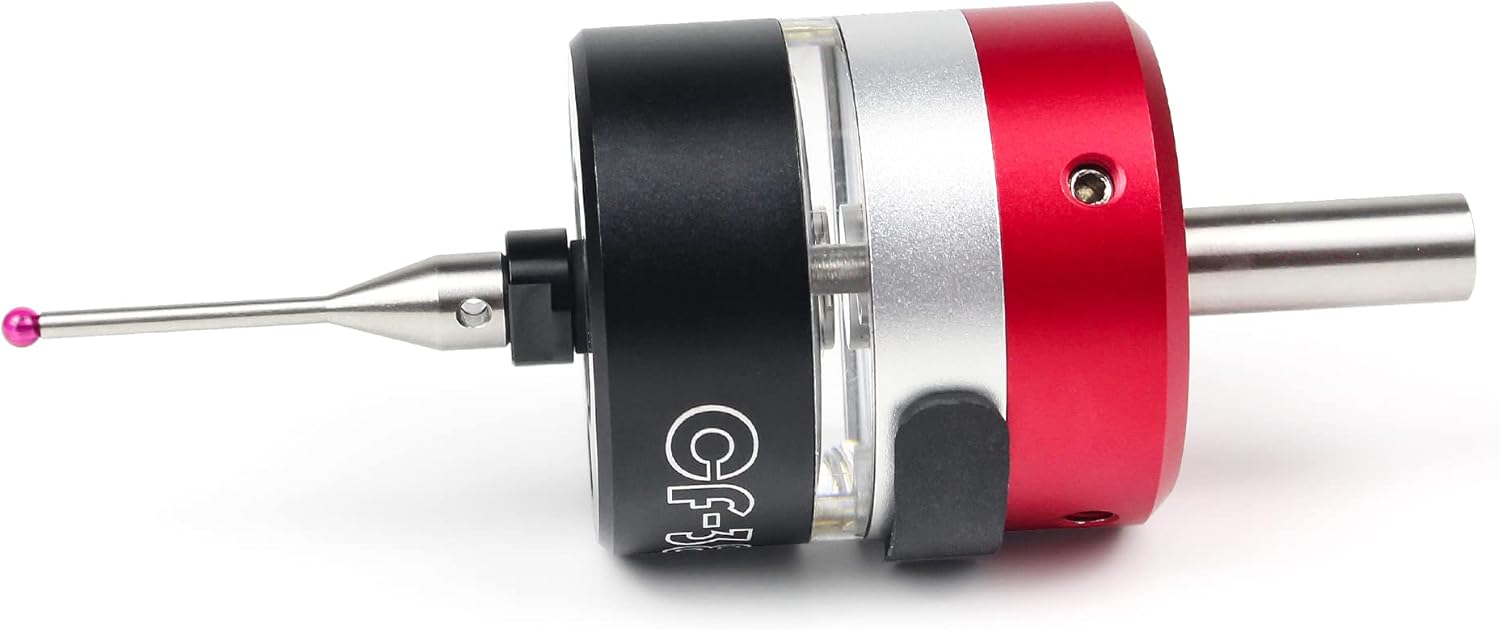

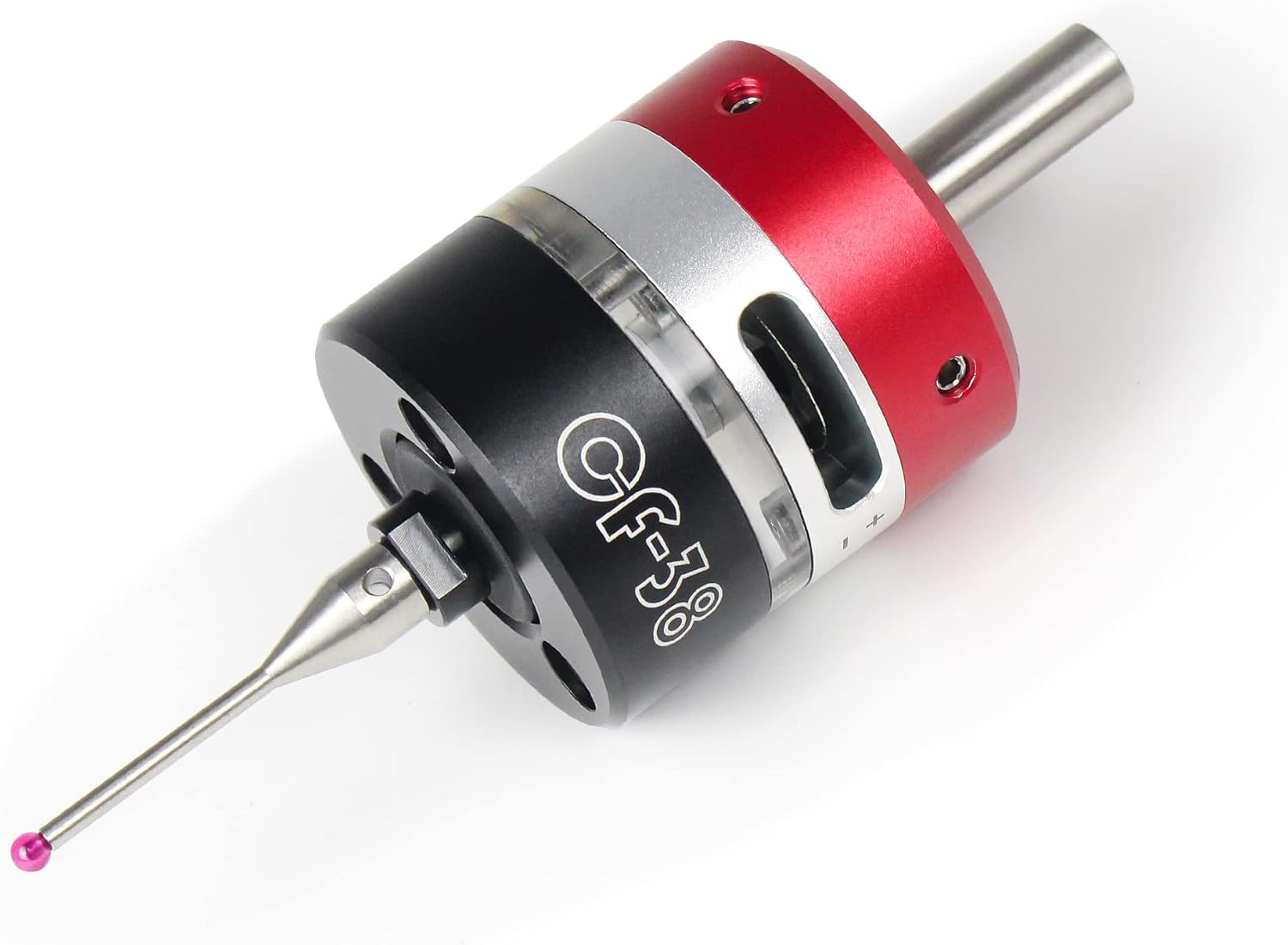

CNCTOPBAOS CF-38 3D Trigger Edge Finder to Find Machining Center,CNC Milling Machine 3d Touch Probe Three-Coordinate Waterproof Precision Probe Centring Rod Tool Setter with Tip

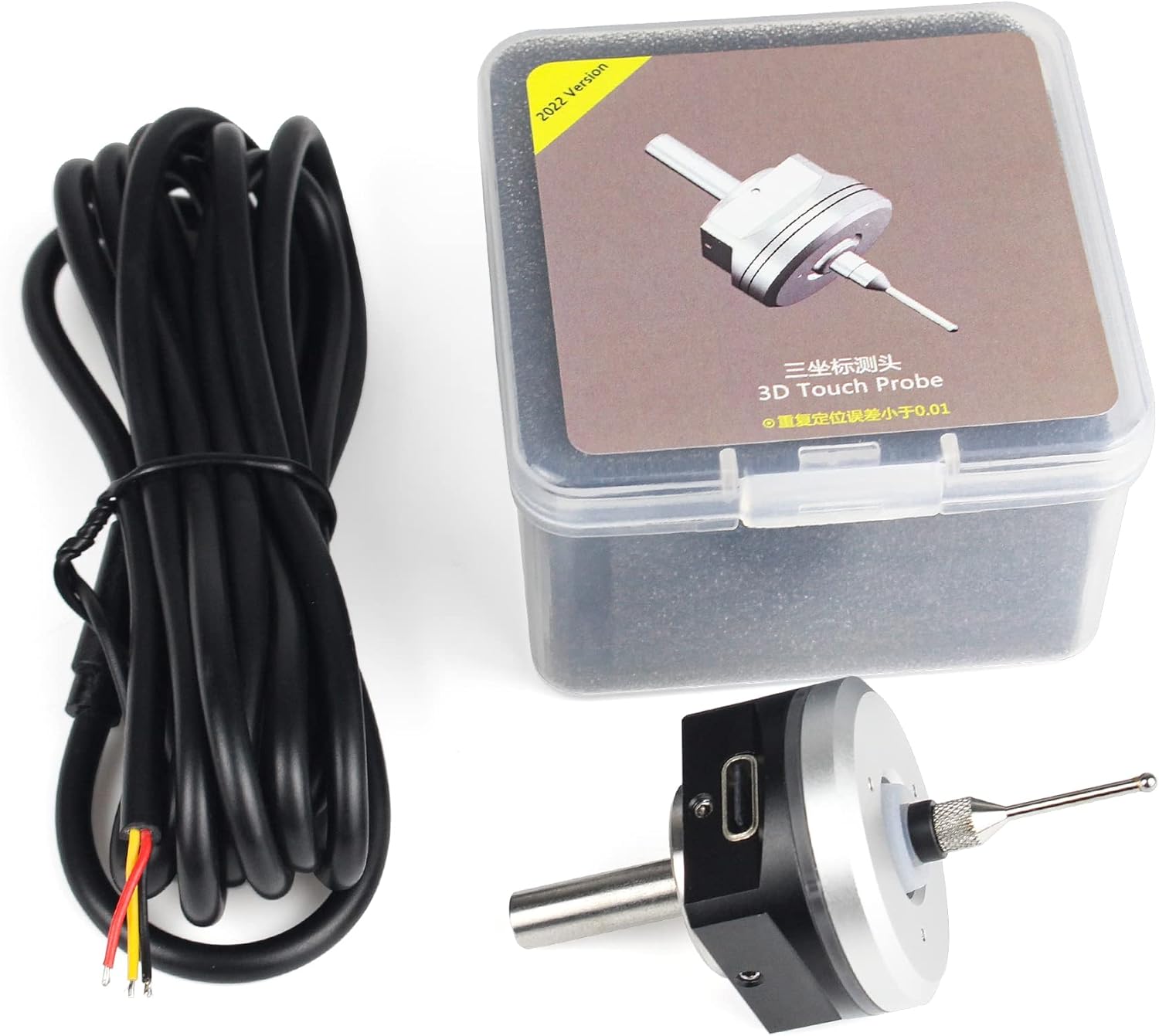

Package include:

• 1 x 3D Tool Probe Setting
• 1 x tip

Product parameters

• Product Name: Trigger 3D Edge Finder
• Item model number: CF-38
• Repeat positioning accuracy: ≥0.005
• Probe direction: ±X ±Y +Z
• Probe safety stroke: X.Y plane ±20°, Z direction +2.5mm
• Trigger life:≤3 million times
• Measurable insulating materia.

Installation of the probe

• There is a wrench slot at the probe interface. When installing the probe, you must hold the probe seat to prevent it from rotating, otherwise the internal parts of the probe will be damaged.

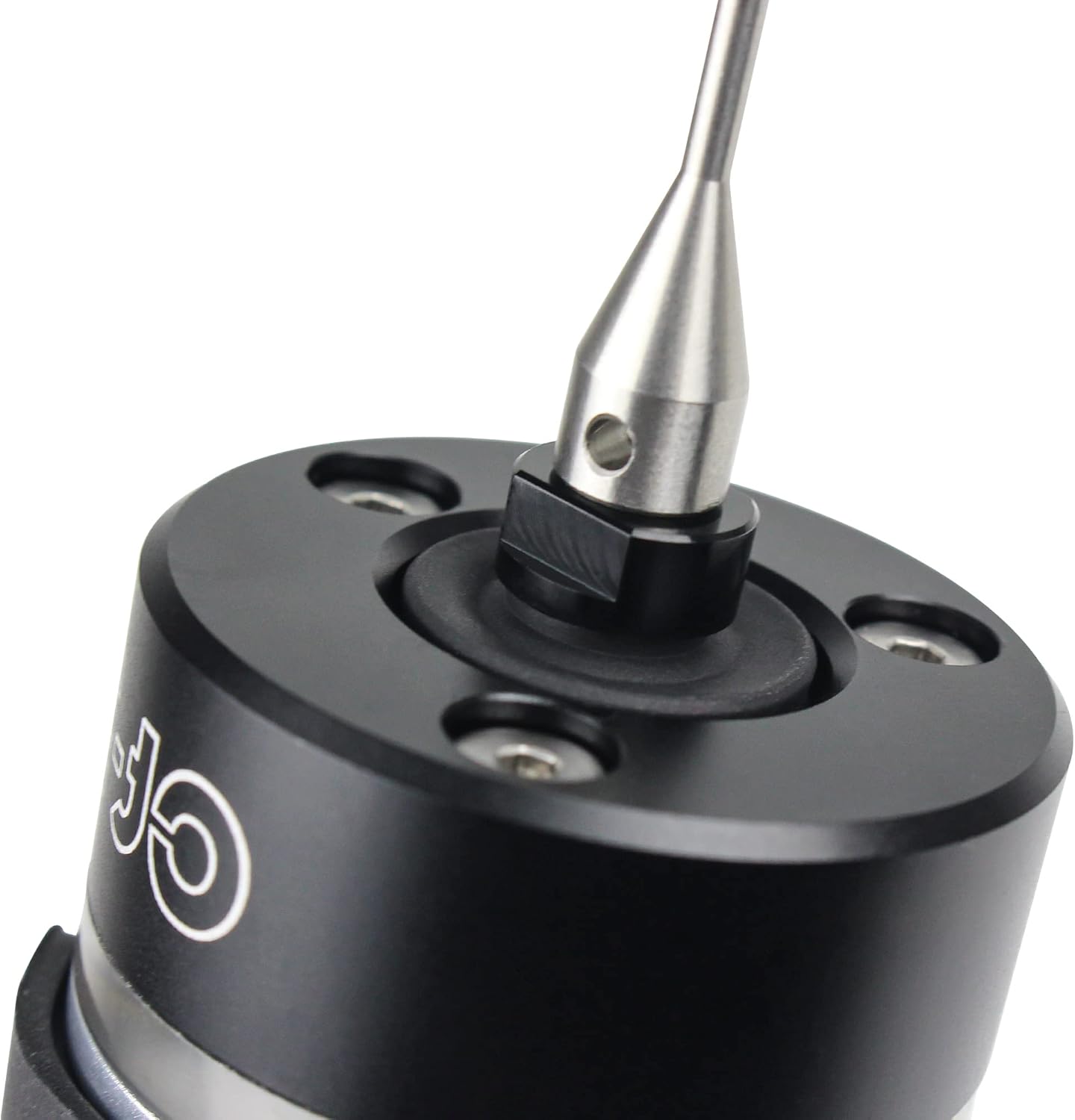

• Adjustment of center deflection,the silver screw is the adjustment screw × 4
• Use a dial gauge to measure the runout of the probe ball and adjust the runout to 0

Compact size and good packaging

• The 3D trigger edge finder is a high-precision and multifunctional measuring instrument,with a very compact structure and extremely convenient operation.Small size to meet more customer equipment needs.
• The shockproof cotton in the packaging box effectively protects the probe, and the probe tip is separately packaged in a transparent box to prevent damage during transportation.
