Product description
- Huajiang was founded in 2000, specializing in the production of CNC router machine, CNC spindle motor , VFD(Inverter) and CNC accessories. We are the pioneer in manufacturing spindle motor, especially air cooling spindle series, we have registered it as a patent in 2007. The patent No:200730184245.5.
- To explore and develop more markets,we established Brand”Zhong Hua Jiang” on 2018.
- We are well known as manufacturer of top quality products. Our products are widely exported to prestigious companys and Fortune 500 companys in USA, Europe, east and south Asia, etc.
- Huajiang has a strong research and development team, all the products are in a high level position in the industry. We are proficient in customizing products according to various requests and applications.

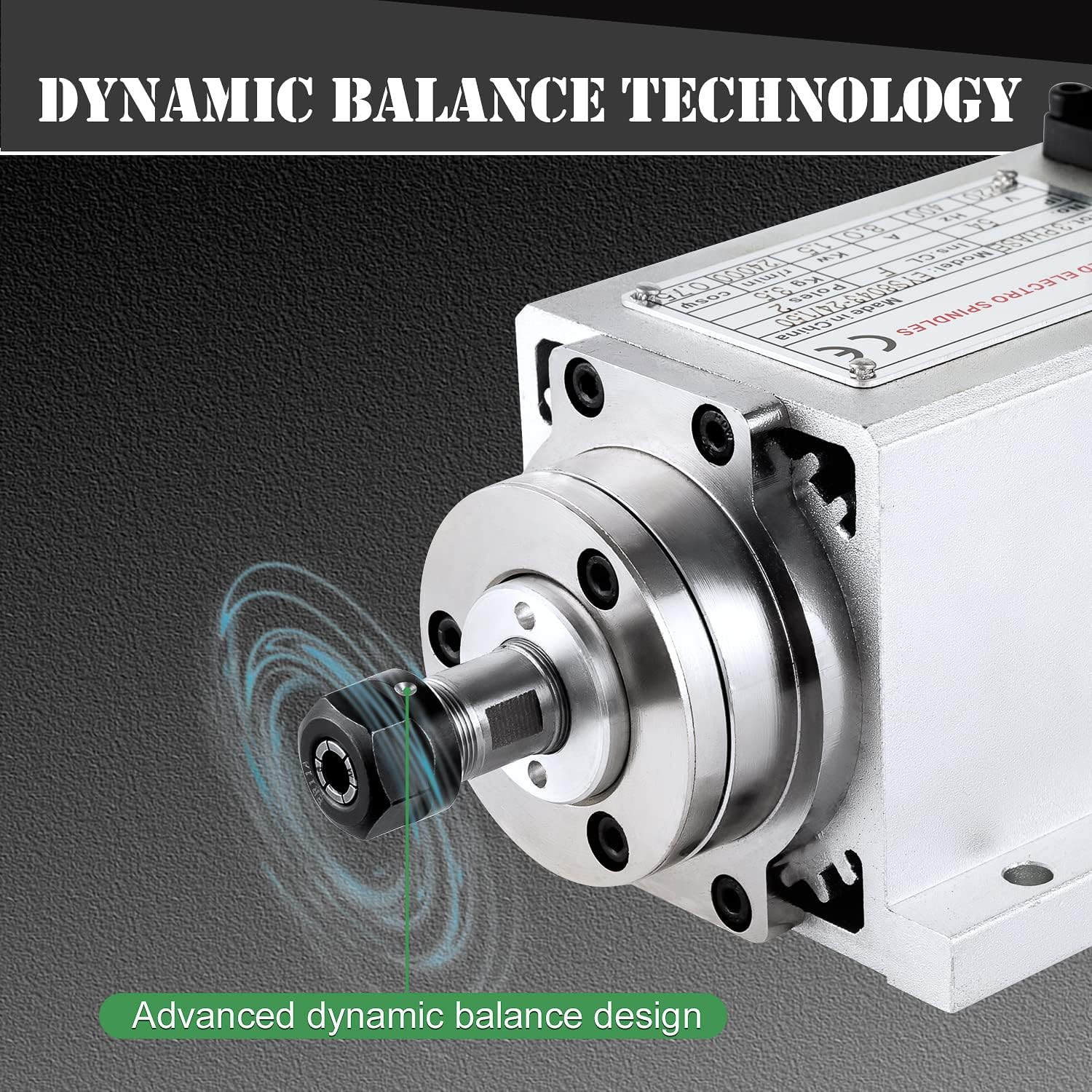

Advanced dynamic balance technogy
We adopt innovative & advanced dynamic balancing technology that effectively reduce the noise and increase stability in the working process.

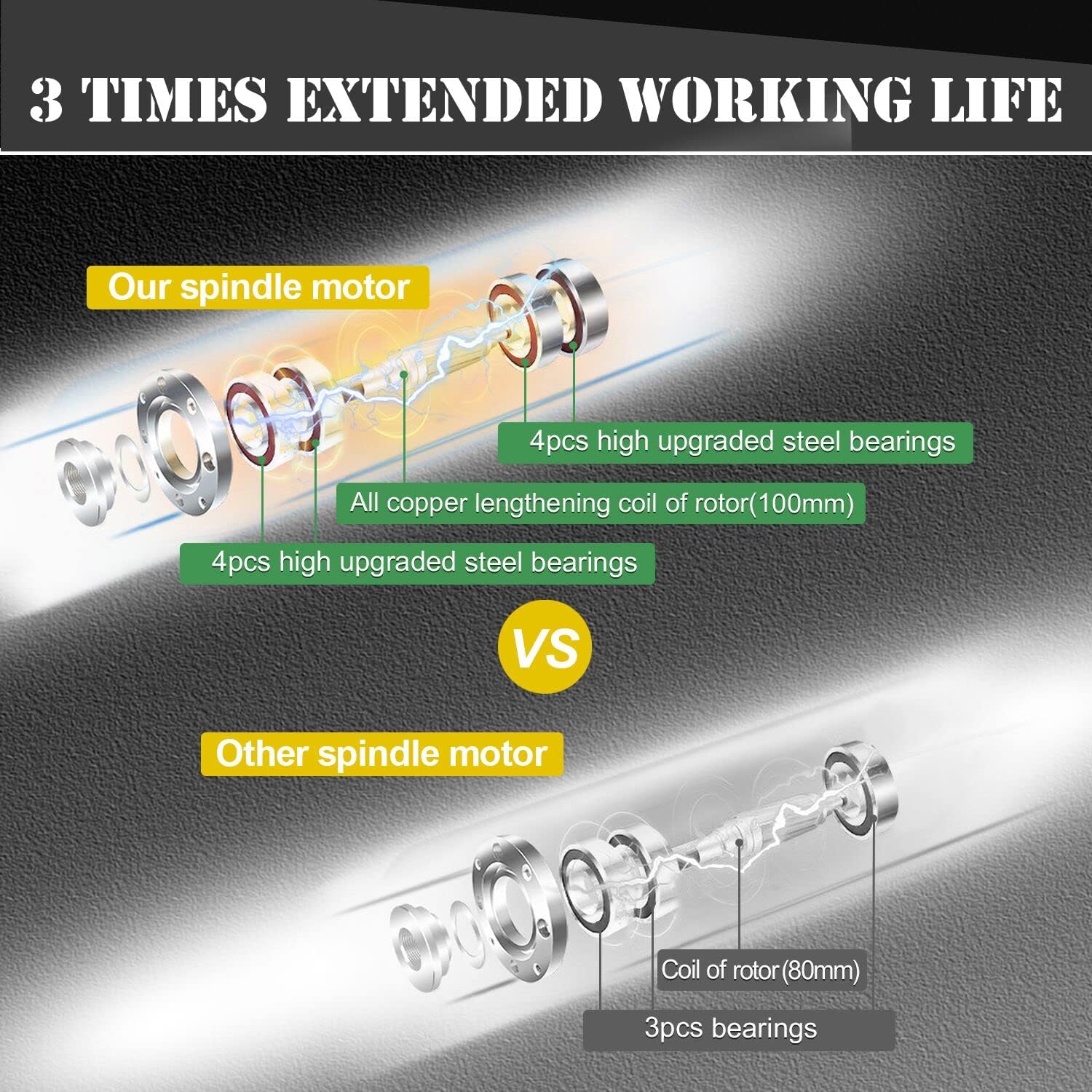

3 times longer working life
We use 4pcs upgraded of superior durability steel bearings and all copper lengthening coil of rotor for spindle motor. In normal case, the working life of our spindle motor can reach 2 years for 8 hours/day.

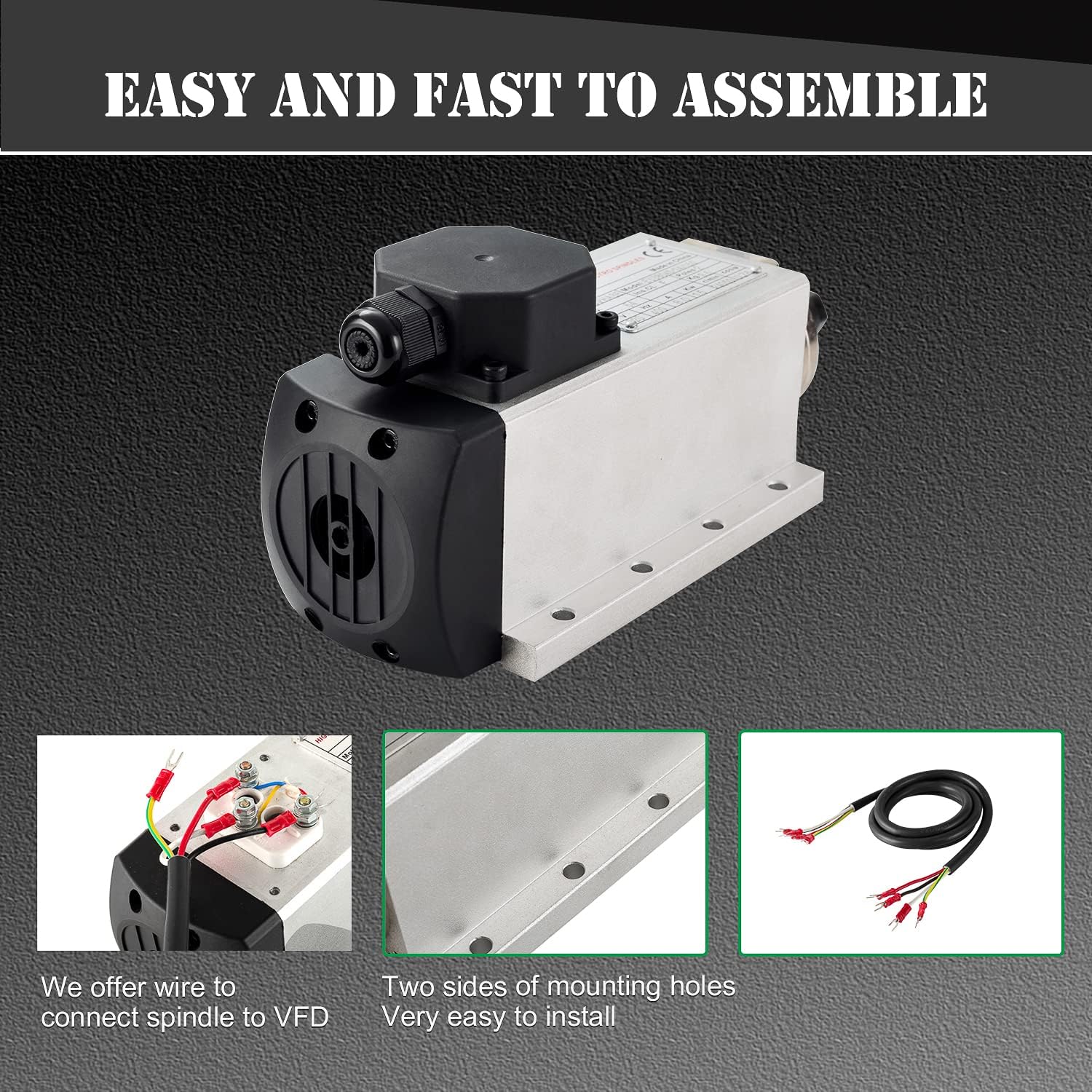

Easy and fast to assemble
It includes aviation wire,power wire and 3 pcs wrenches to connect spindle motor to VFD. The appearance design of square spindle motor have 2 sides mounting holes to fix. It will take just 5 minutes to install all and make all functions running.

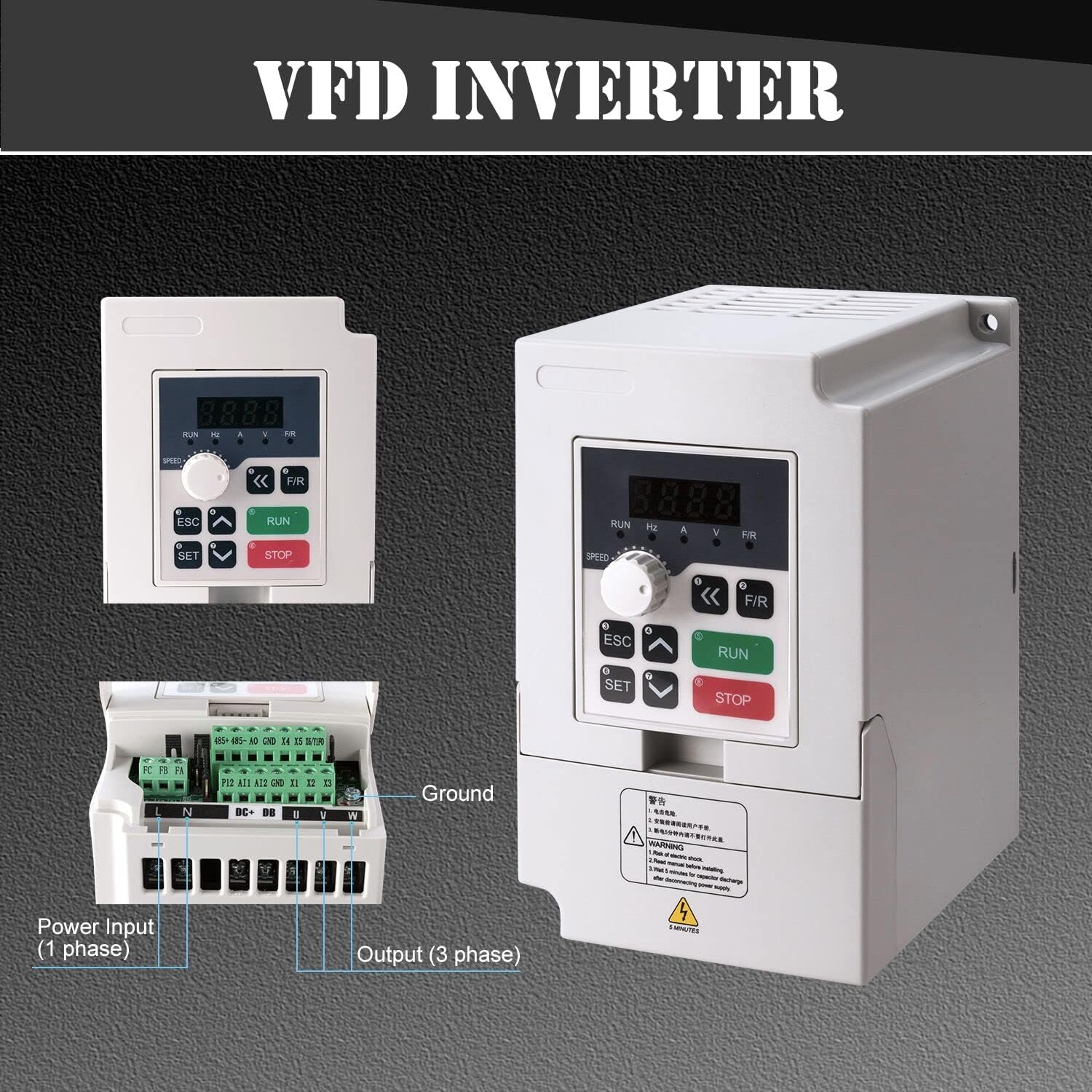

High quality compact VFD
110V, 1.5KW, 400HZ VFD. It is single phase(input), 3 phase (output).
The VFD had been pre-programmed for basic parameters , you don't need to make extra setting up.
Our VFD is enable motor to achieve high torque in low speed rotation.

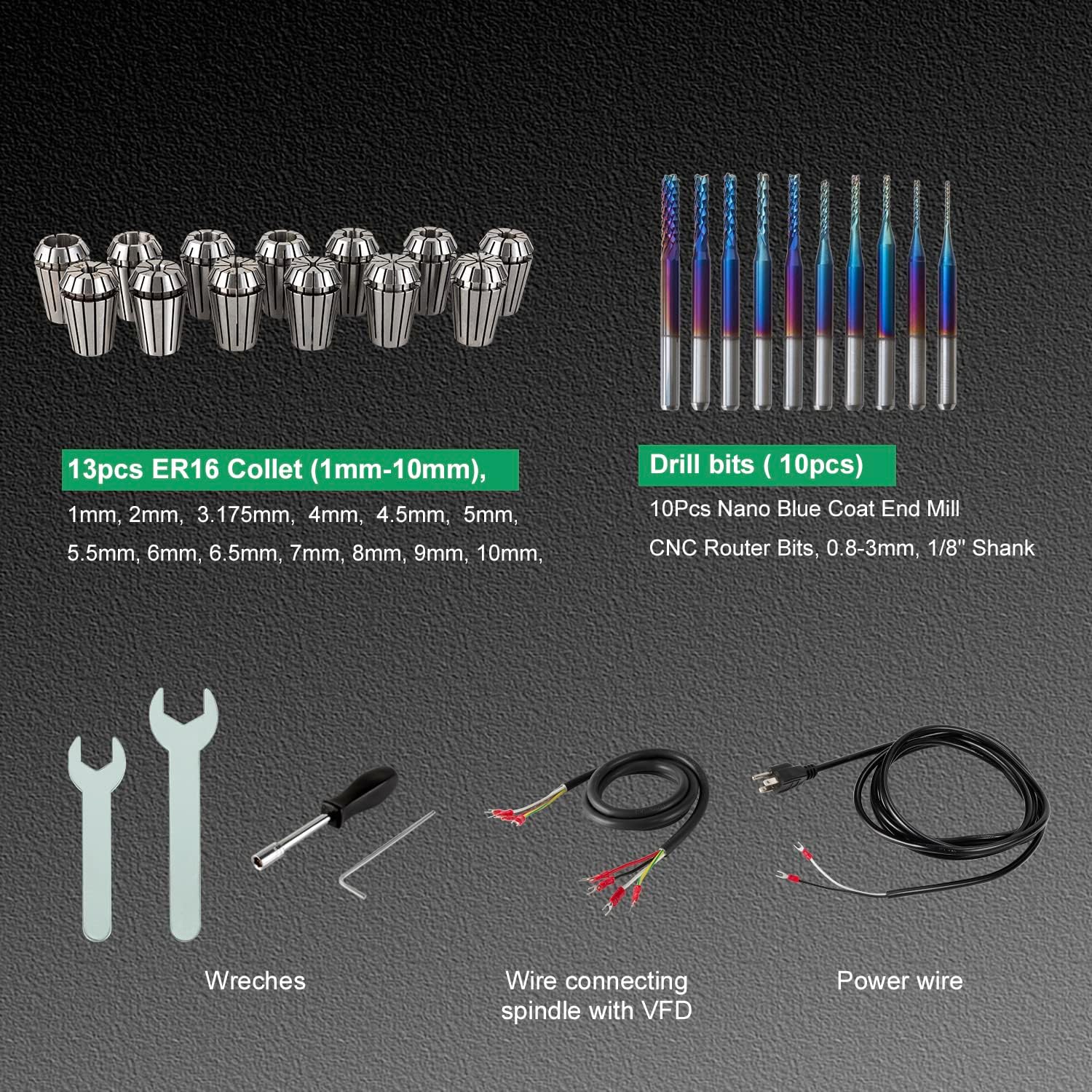

Complete accessories
We offer 10 Drill bits(0.8-3mm, 1/8" Shank) and 13pcs Collet ER16(1mm-10mm),aviation wire,power wire, 4pcs wrenches.

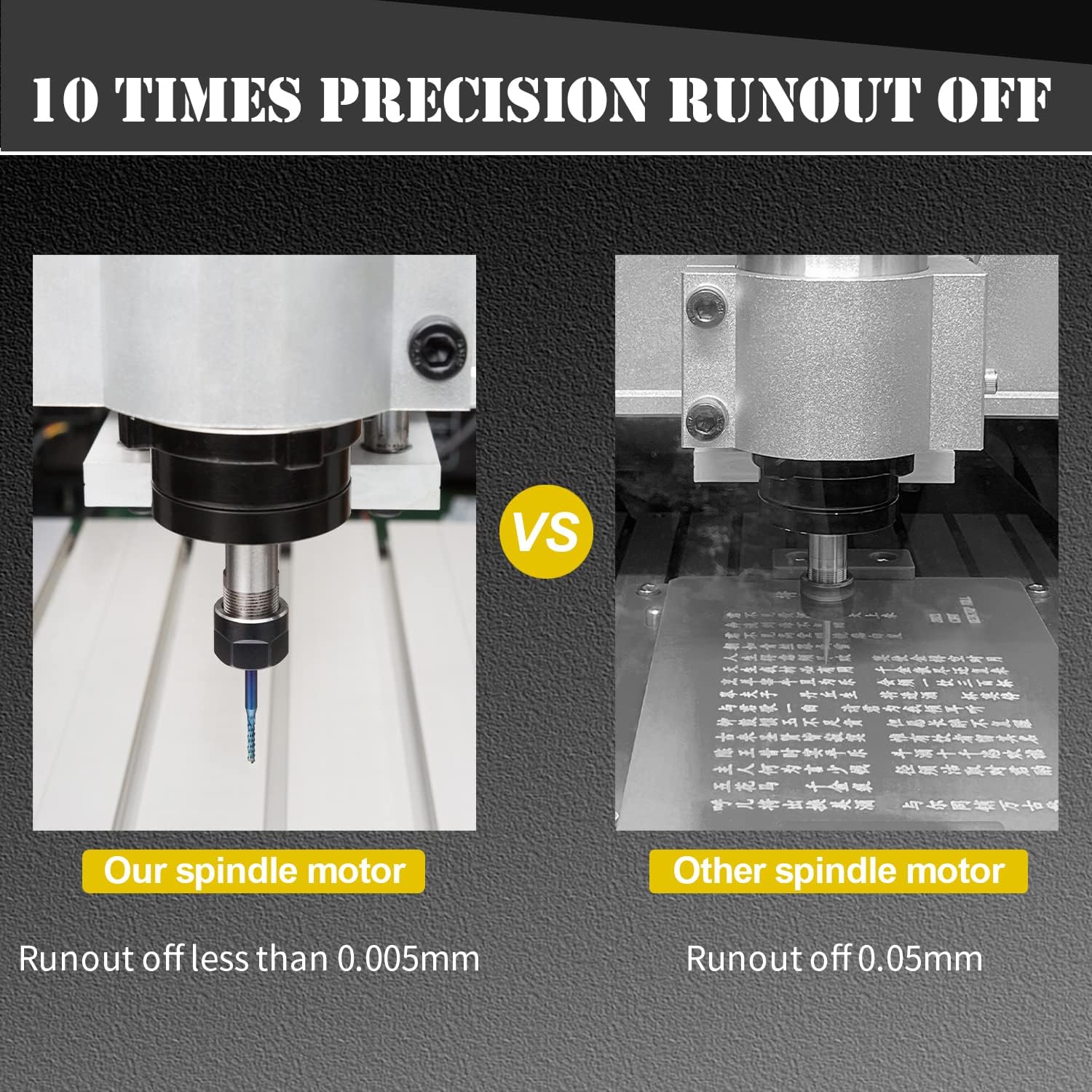

High precision
We make further processing for high accuracy & concentricity, the runout off of our spindle motor is less than 0.005mm that 10 times precision beyond normal spindle motor.

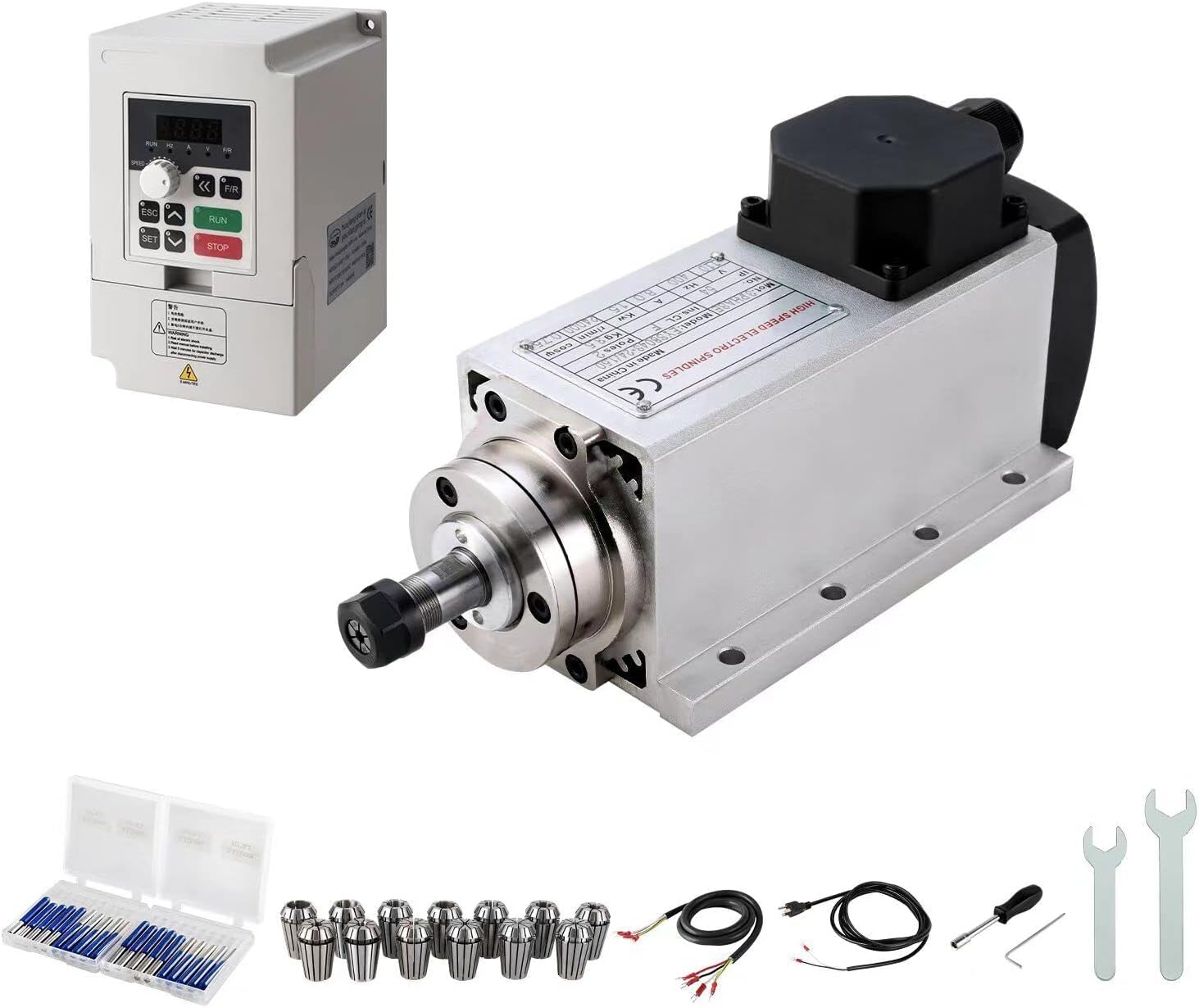

Package list
1X 110V 1.5KW Square Spindle Motor
1X 110V 1.5KW VFD Inverter
13X Collets ER16(1mm-10mm)
10X Drill Bits( 0.8-3mm, 1/8" Shank)
1Xaviation wire&1Xpower wire
4X wrenches
Spindle motor: 242X90X105mm(9.5"X3.5"X4.1")
Weight:4.3kg
