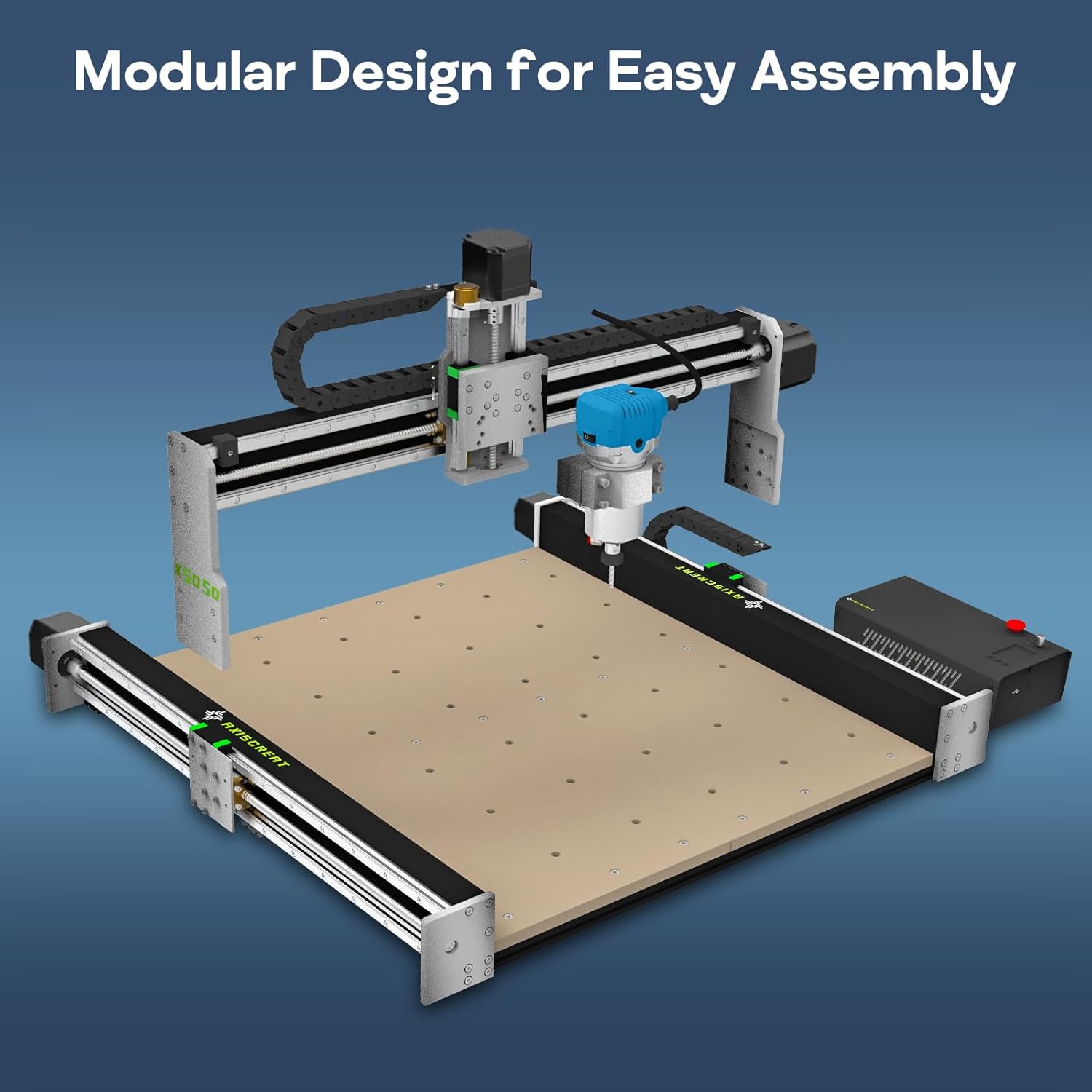

Axiscreat 5050 CNC Machine with Linear Rails Ball Screws on 3-Axis, 710W Trim Router Spindle Engraving Milling Machine for Wood Acrylic Aluminum Cutting
Axiscreat 5050 CNC Machine with Linear Rails Ball Screws on 3-Axis, 710W Trim Router Spindle Engraving Milling Machine for Wood Acrylic Aluminum Cutting - Image 2
Axiscreat 5050 CNC Machine with Linear Rails Ball Screws on 3-Axis, 710W Trim Router Spindle Engraving Milling Machine for Wood Acrylic Aluminum Cutting - Image 3
Axiscreat 5050 CNC Machine with Linear Rails Ball Screws on 3-Axis, 710W Trim Router Spindle Engraving Milling Machine for Wood Acrylic Aluminum Cutting - Image 4
Axiscreat 5050 CNC Machine with Linear Rails Ball Screws on 3-Axis, 710W Trim Router Spindle Engraving Milling Machine for Wood Acrylic Aluminum Cutting - Image 5
Axiscreat 5050 CNC Machine with Linear Rails Ball Screws on 3-Axis, 710W Trim Router Spindle Engraving Milling Machine for Wood Acrylic Aluminum Cutting - Image 6

Axiscreat 5050 CNC Machine with Linear Rails Ball Screws on 3-Axis, 710W Trim Router Spindle Engraving Milling Machine for Wood Acrylic Aluminum Cutting

This product is currently out of stock and unavailable.

Add to wishlist
SKU: AAW_4F3C04DD_1769743412 Category:

Product description

5050 cnc machine5050 cnc machine

X6060 cnc machineX6060 cnc machine

X5050X5050

cnc carve picturecnc carve picture

Product Specifications

Active Working Area 19.7" x 19.7" x 4.33" (500 x 500 x 110mm)
Input Voltage & Current 110V/220V/15A
Spindle Power 710 watt
Spindle Speed 6000-30000 r/min

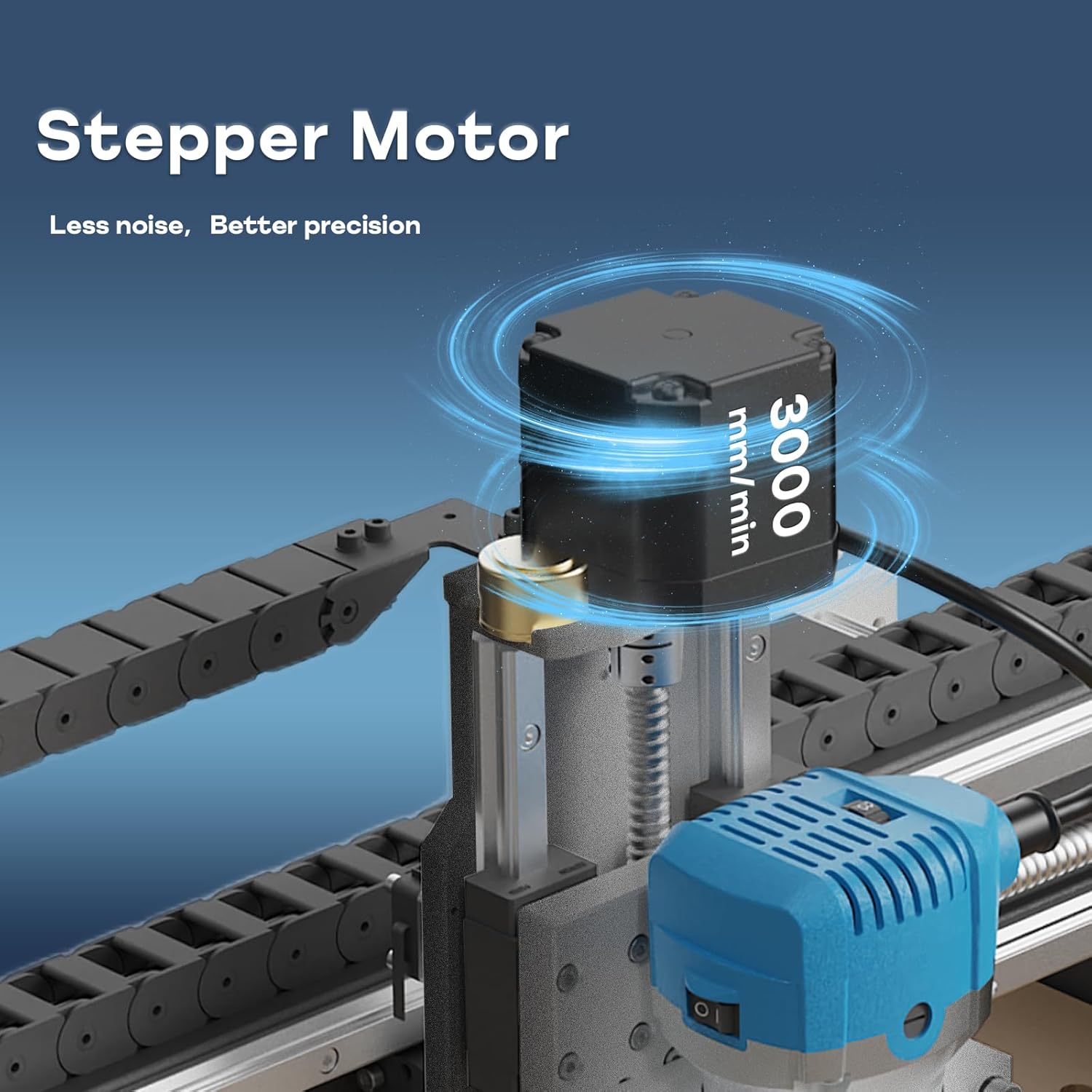

Stepper Motor NEMA 17
Driven System Linear Guide Rails & Ball Screws
Support OS Windows XP/7/8/10/11, Linux, Mac OS
Software Grblcontrol(Candle), UGS, and other GRBL compatible software
Frame & Structure High-strength Aluminum & MDF Spoilboard
Torque of Stepper Motor 1.2 N.M
Positioning Accuracy ± 0.01mm
Supported File Format NC files
Supported Spindle Sizes Outer Diameter 52mm, Outer Diameter 65mm
Motion Control System Fluidnc v3.8.4

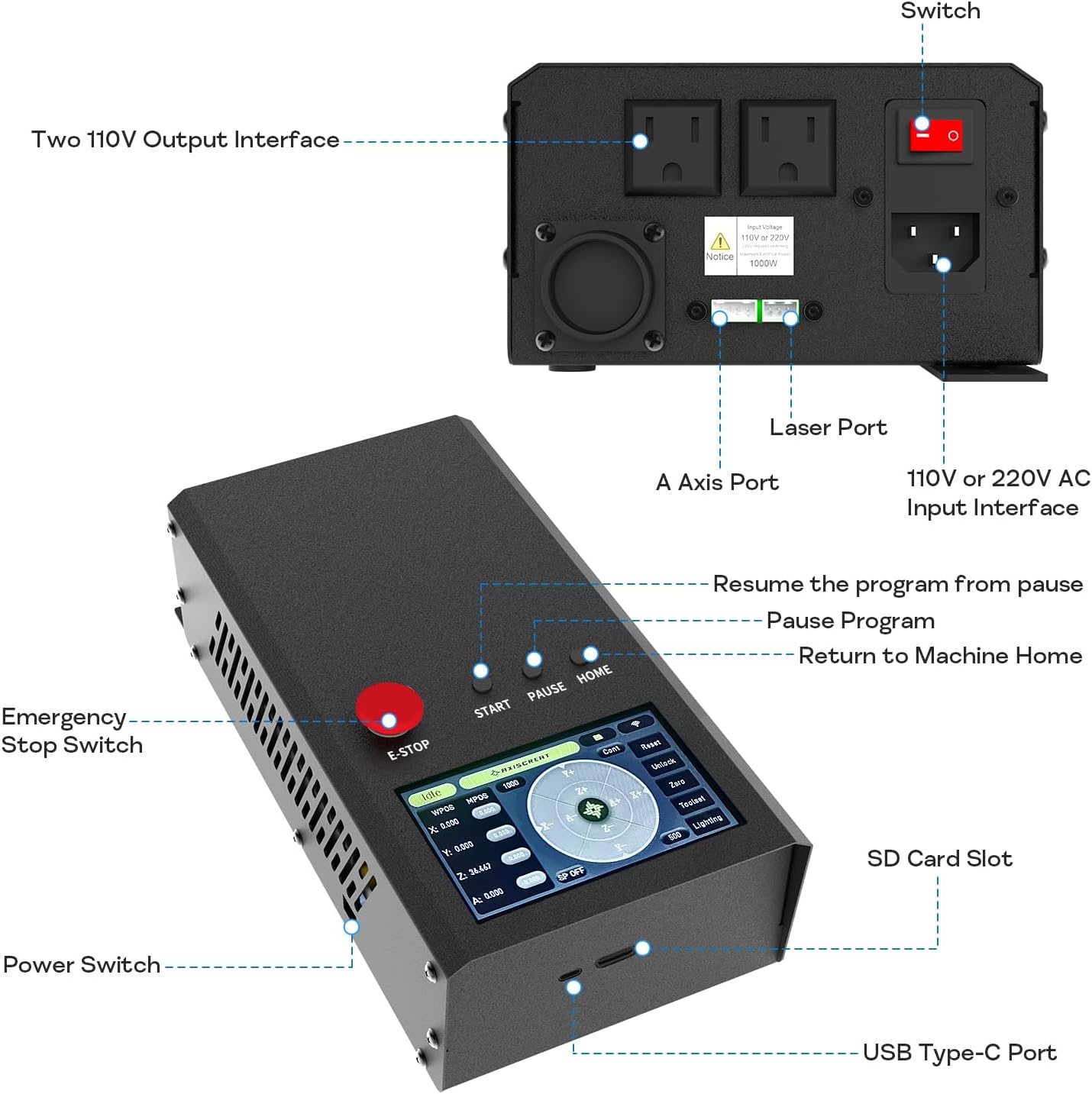

User Interface Offline 4.3in Touchscreen Controller, PC application, Smartphone, Tablet
Net weight 34kg
