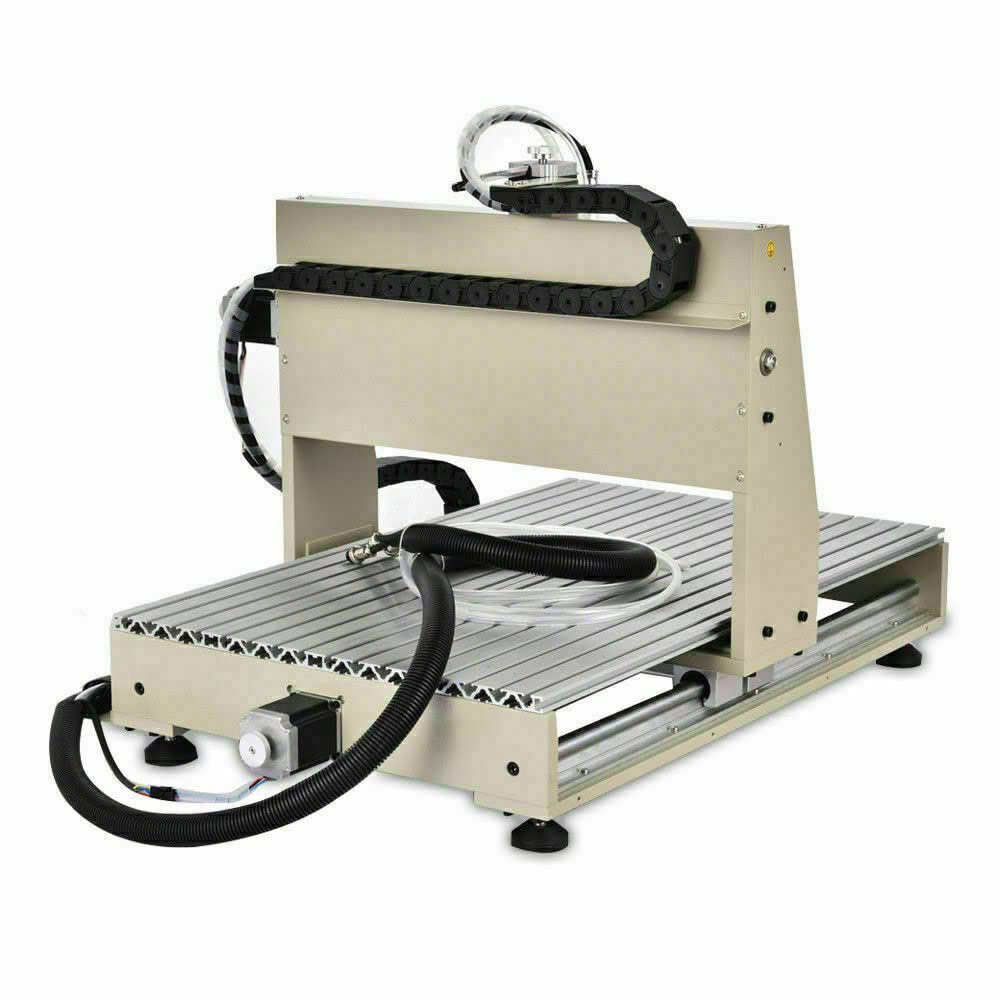

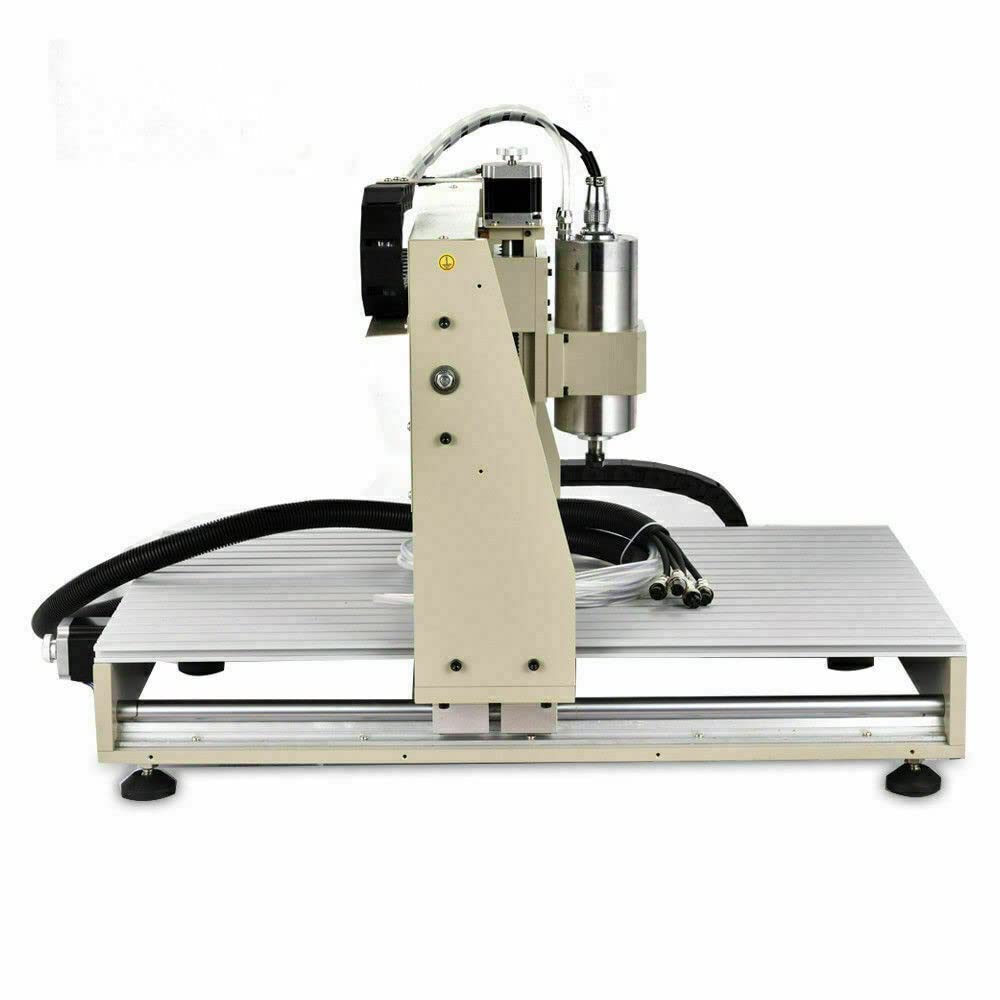

4 Axis CNC 6040 Router Metal Engraving Machine Drilling Milling Machine Engraver, Engraver Engraving Mill/Drilling Machine + RC for PCB Badges Bronzing Plate etc

---

About this item

• 1. This 6040t Machine Is Suitable for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
• 2. It Can Work with Various Materials(Metallic & Non-metallic), Such As: Wood, Pmma or Other Plastic, Mdf Board, Native Wood, Pvc, Acrylic, Wood, Composite Board Plywood. and Soft Metal, like Aluminum, Copper and Silver to Engrave Them into 3d/2d Works Etc.
• 3. It Can Used for Engraving: Advertising Signs, Pcb, Nameplates, Badges, Seals, Bronzing Plate, Aluminum Alloy, Acrylic Plates, Abs Resin Double Color Plate, Pvc Foaming Board, Indentation Plates, Signs, Construction Models, Instrument Panels, Wooden Products, Etc.
• 4. the Mini Router Frame Is Movable. the Machine Can Connect with Computer As Other External Device Such As Printer, Scanner…
• 5. with the Assist of the Router 6040t, Your Design Idea Will Be Real-time Display.

Feature:

1. the New 1.5kw Water-cooled Vfd Is Available Operating for Long Time,Which Can Reinforced

The Processing Abilty of the Machine and Can Be Used to Process Aluminum Alloy and Hard Wood.

2. Water Cooling Spindle Works More Stable and Durable.

3. High Quality Accurate Ball Screws Drive Make the Engrving More Precision.anti-blackflash,High Precision,Long Life Circle.

Description:

dimensions: 22 X 8 X 3cm

Please Note: This Item Works with Only

The Usb Self-check Light, You Can Type the ” Scroll” on the Keyboard to Activate It.

Directional Motion Control: X+, X-, Y+, Y-, Z+, Z-, a+, a-

Feed Rate Control: F+, F-

Jog Rate: J+, J-

Spindle Speed: Speed up, Slow down

Programming: E-stop, Cycle Start, Spindle on/off, Redo, Single Step, Original Point

Package Include

1 * Remote Controller

1 * Cable

Engraving Machine Parameters:

X, Y, Z Working Area: 600(Y)*390（X）*120(Z)Mm

Outside Dimension: 865*680*570mm（L*W*H）

Table Size: 770（Y）*490（X）Mm

Lathe Structure: 6061/6063 Aluminium Alloy

Max. Feeding Height: ≤100mm

Drive Unit:

X Axis—1605 Ball Screws

Y Axis—1605 Ball Screws

Z Axis—1204 Ball Screws

Sliding Unit:

X Axis—High
